1U Rackmount Monitor Keyboard Drawer with PS/S KVM

i-Tech's Most Popular and Economy 1U Rackmount LCD KVM Drawer



This popular design has been launched in many government department such as Universities, National  labs, Navy and Military.  This economy 1U LCD Rack Keyboard drawer has been proved by many support of our users who find satisfaction on this unit.



Also, this 1U Rack mountable LCD keyboard will only take 1U of the Rack space, further more it has options for S-Video, Composite Video input, or DC input or Resistive Touchscreen for your selection.



If you want to remote access your servers, this economy Rackmount LCD KVM drawer does has option for your to add IP KVM or CAT5 Extenders.



Once you are in our store, you will find out that we also provides IP KVM 1U Rackmount LCD Drawer, CAT5 Extenders Rack Mounted monitor, branded KVM Switches and Server Rack Cabinet.

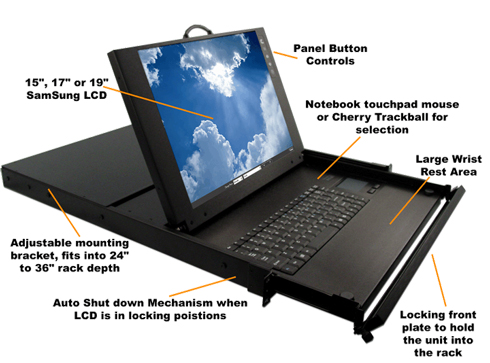

Quick Features for 1U Rackmount LCD Monitor Drawer

  • Only 1U (1.75" high) of vertical 19" rack-mount space.
  • Laptop-style tilting display provides for short pull-out and minimal intrusion into the aisle space in front of the rack.
  • High-brightness 450-nit,TFT LCD Panel and high contrast-ration active TFT LCD flat panel integrated folding display.
  • Full 101-keys Windows keyboard (including a dedicated numeric keypad), and an integrated touch-pad pointing device.
  • Industrial-grade heavy-duty steel construction with a built-in lock to prevent unauthorized console access.
  • Smooth-operating sliding rails that self-lock when pulled all the way out.
  • Built in power supply
  • Adjustable rear mounting support, up to 34-inches in depth.
  • Built-in thumb screws for securing the unit when folded and pushed all the way in.
  • Meets EIA310c & IEC-3 Specifications
  • Add PCs or Remove Connected PCs for Maintenance without powering down the KVM switch for PCs



Options (Click "OPTION" tab above to customize or call 1-888-483-2418 for detail):




Ordering Information
KVM Support
15" LCD series
17" LCD series
19" LCD series
1-port
RKP115 RKP117 RKP119
1-port
RKP115U RKP117U RKP119U

Console
8-port
RKP115-801 RKP117-801 RKP119-801
16-port
RKP115-1601 RKP117-1601 RKP119-1601
8-port
RKP115-S801 RKP117-S801 RKP119-S801
16-port
RKP115-S1601 RKP117-S1601 RKP119-S1601

2 Consoles
Over CAT5
8-port
NV11582 NV11782 NV11982
16-port
NV115162 NV117162 NV119162
8-port
NV11582U NV11782U NV11982U
16-port
NV115162U NV117162U NV119162U

2 Consoles
Over IP
8-port
NVIP11582 NVIP11782 NVIP11982
16-port
NVIP115162 NVIP117162 NVIP119162
