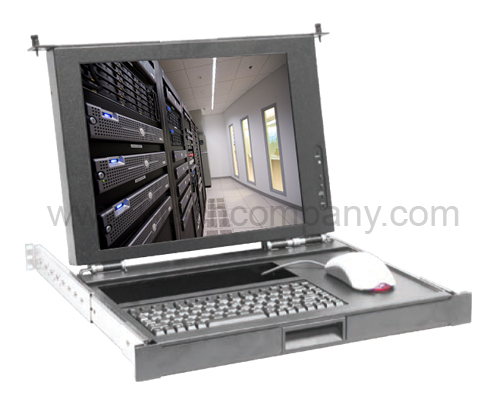

2U Rackmount Compact 19" LCD Monitor Keyboard and Mouse Storage. (Model: RCK2419m)

2U Rackmount Compact 19" LCD Monitor Keyboard and Mouse Storage. (Model: RCK2419m)

2U Rackmount Compact 19" LCD Monitor Keyboard and Mouse Storage. (Model: RCK2419m)

rck2419m
  • Overview
  • Specifications
  • Download


Features

- Monitor, keyboard and storage/use area for mouse occupies 2U of 19” rack space.
- Included adjustable mounting depth ball bearing slides lock in the fully extended position.
- Monitor powers off preserving back light life when tilted down for sliding into the rack.
- Retainer and lock options to keep unit contained in the rack when not in use.
- Housed in rugged steel construction with a durable powder coat finish.
- Reduced rack depth for mounting in confined spaces.


Display Specifications:

Display Type:
Active matrix TFT LCD
Colors Displayed:
16.7 million colors.
Contrast Ratio:
17”: 1000:1 typ.
19”: 800:1 typ.
Brightness:
17”: 250 cd/m2 typ.
19”: 270 cd/m2 typ.
Viewing Angle:
Horizontal (17"/19"): 170o /178o
Vertical (17"/19"): 160o /178o
Response Time:
17”: 5ms Typ.
19”: 18ms Typ.
Resolution:
640 x 350
640 x 480
800 x 600
1024 x 768
1280 x 1024
Display Area:
17” Diagonal
19” Diagonal
Horizontal Frequency:
31 to 80 KHz
Vertical Frequency:
55 to 76 Hz.


Keyboard and Mouse Specification:

Rollover:  Alpha N-key rollover.
Auto repeat: Yes.
Self Diagnostics: At power on and system reset.
Data Buffer: All codes buffered before sending.
Operating voltage: +5 VDC +/- 5%.
Operating current: 100 mA (max).
Touchpad Size: 2.2” X 1.6”
Buttons: Left and Right
Interface: Keyboard: PS/2 or USB
Compatibility: Windows operating systems.
Optional Mouse: Optional optical mouse, PS/2 or USB.
Optional Cherry™ Keyboard


General Specifications:

Dimensions:
17": 19.0" (W) x 3.50" (H) x 13.25" (D)
19": 19.0" (W) x 3.50" (H) x 14.90" (D)
Weight:
20 lbs
Power (TFT Display):
90 - 260 VAC, 50/60 Hz.
60 Watts maximum
On-Screen Controls:
Brightness, Contrast, Horizontal & Vertical Position, Auto Adjust, OSD H & V Position, Load and Save Values
Plug & Play:
DDC1 and DDC2B
Temperature:
Operating: 0o C to 50o C
Storage: -20o C to 60o C
Humidity:
Operating: 10 to 85% RH (max)
Input Signal (VGA):
R.G.B. analog video, TTL H & V sync
Input Connector:
Display: 15-pin mini D-Shell
Colors Available:
Black and Light Gray
Display Specification

Display Type:

Active matrix TFT LCD

Colors:

16.7 million colors

Contrast Ratio:

800:1 typ.

Brightness:

270 cd/m 2 typ.

Viewing Angle:

178 ° (H) / 178 ° (V)

Response Time:

18ms (typ.)

Resolution:

640 x 350
640 x 480
800 x 600
1024 x 768
1280x1024

Display Area:

19" Diagonal

Horizontal Frequency:

31 to 80 KHz

Vertical Frequency:

55 to 76 Hz

General Specifications

Dimensions:

19.0" W)x3.50" H)x14.90" D)

Weight:

20 lbs.

Power (TFT Display):

90 - 260 VAC, 50/60 Hz
60 Watts maximum

On-Screen Controls:

Brightness, Contrast, Horizontal & Vertical Position, Auto Adjust, OSD H & V Position, Load and Save Values

Plug & Play:

DDC1 and DDC2B

Temperature:

Operating: 0 to 50°C
Storage: -20 to 60°C

Humidity:

10 to 85% RH (max)

Input Signal (VGA)

RGB analog video, TTL H & V sync

Input Connector:

Display: 15-pin mini D-Shell

Colors Available:

Black

Keyboard and Mouse Specifications

Rollover:

Alpha N-key rollover

Auto repeat:

Yes.

Self Diagnostics:

At power on & system reset

Data Buffer:

All codes buffered before sending

Operating voltage:

+5 VDC +/- 5%

Operating current:

100 mA max.

Interface:

Keyboard: PS/2 or USB (U)

Compatibility:

DOS, Windows 3.X, Windows 95/98, Windows NT, Windows 2000,XP.

Optional Mouse (M):

Optional optical mouse, PS/2 or USB (u) ( Specifications to change without notice)
