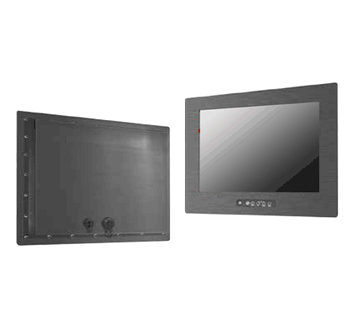

IP66 Panel Mount, Wide 21.5" LCD Monitor, 1920x1080, LED-250nit, VGA, DVI, OSD front, w/o-stand & speaker 5-wire resistive touch (USB) (Model: EPM6-W2150TR-C1D2)

IP66 Panel Mount, Wide 21.5" LCD Monitor, 1920x1080, LED-250nit, VGA, DVI, OSD front, w/o-stand & speaker 5-wire resistive touch (USB) (Model: EPM6-W2150TR-C1D2)

IP66 Panel Mount, Wide 21.5" LCD Monitor, 1920x1080, LED-250nit, VGA, DVI, OSD front, w/o-stand & speaker 5-wire resistive touch (USB) (Model: EPM6-W2150TR-C1D2)

Main Feature

    • Modularize mechanical design provides flexible product configuration and easy maintenance
    • Build-in 5-wire resistive touch screen for interactive application
    • Available with auto-brightness sensor offers application in day and night
    • Compliance Class 1 Division 2, ATEX Zone 2
EPM6-W2150TR-C1D2
  • Specifications
  • Download
  • Contact Sales

Panel Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low reflection coating
Aspect Ratio / Size Wide / 21.5" viewable diagonal area
Active Area / Pixel Pitch 476.64(H) x 268.11(V) mm / 0.248(H) x 0.248(V) mm
Native Resolution / Colors 1920(H) x 1080(V) / 16.7M
Brightness / Contrast 250 cd/m2 (typ) / 1000 : 1
Response Time < 5 ms
Viewing Angle (typical) H.170° (- 85° ~ + 85°) , V. 160° (- 80° ~ + 80°)
Light Source LED backlight, Long life, 35,000 hrs (typ)
Input Sources PC System Signal Analog RGB (0.7/1.0 Vp-p, 75 ohms)
Sync Separate Sync, Composite Sync, Sync On Green
Frequency Fh : 30 - 82Khz , Fv : 50 -75Hz
Audio System N / A
Input Terminals 1 x VGA , 1 x DVI , 1 x PC Audio (Stereo Headphone Jack) , 1 x DC Power Plug
Convenient Features Auto Calibration, Back Light Adjustment, Plug&Play (VESA DDC/CI, DDC 2B)
OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
Power
Power Consumption Operation / Power Saving 26.25 watt , < 1 watt (Support DPMS)
Operating Condition Temperature / Humidity -20°C ~ 60°C, 10% ~ 90% (no condensation)
Storage Condition Temperature / Humidity - 20°C ~ 60°C , 10% ~ 90% (no condensation)
Certification   FCC , CE
Dimensions Physical Please refer to Drawing
Carton W x H x D = TBD
Weight N.W. / G.W. 8 Kgs / 9 Kgs
Container Loaded 20ft / 40ft / 40ft HQ TBD (Sets , By pallet)

Options Touch Video / TV Enhanced Panel Others
Resistive touch SV + AV Panel with LED backlight Digital Signage(Stand alone)
Capacitive touch SV + AV + AV_Looping High brightness panel Networking Digital Signage
Infrared touch SV + AV + TV Wide Temperature Motion Sensor
Protected glass   Sunlight Readable Light Sensor
      Auto-Dimming
