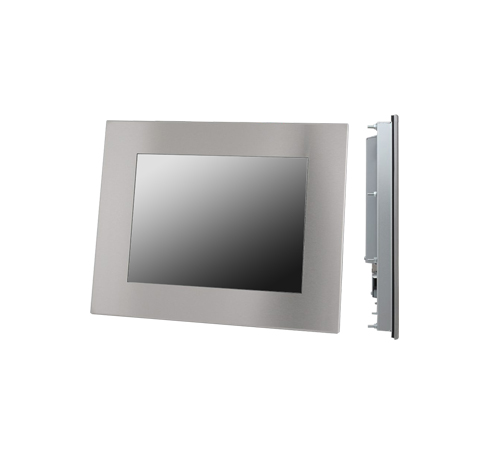

NEMA4 15" Stainless Steel Panel Mount LCD Monitor w/ HD-15, DVI-I Input & Class II, Division 2 (Model: HPM1500-C1D2)

NEMA4 15" Stainless Steel Panel Mount LCD Monitor Bezel) Native Resolution - XGA (1024 x 768, 4:3 aspect ratio) 400nits, video input HD-15, DVI-I AC Power  Models - 100 to 240 VAC, 1.5/0.75 A, 60/50 Hz + GLASS (NON-TOUCH) + Rated for HazLoc - AC Power Class I, Division 2 for Groups A, B, C, D; Class II, Division 2 for Groups F, G; Class III; Temp Code T4A

NEMA4 15" Stainless Steel Panel Mount LCD Monitor Bezel) Native Resolution - XGA (1024 x 768, 4:3 aspect ratio) 400nits, video input HD-15, DVI-I AC Power Models - 100 to 240 VAC, 1.5/0.75 A, 60/50 Hz + GLASS (NON-TOUCH) + Rated for HazLoc - AC Power Class I, Division 2 for Groups A, B, C, D; Class II, Division 2 for Groups F, G; Class III; Temp Code T4A

HPM1500-C1D2
  • Overview
  • Specifications
  • Download

Features:

  • NEMA 4/12 or NEMA 4/4X/12, sealed to IP65/66 standards
  • UL Rated for Hazardous Locations: Class I, II, III, Division 2
  • High resolution, high brightness and contrast
  • Field-proven MTBF of more than 250,000 hours
  • Touch Screen, Tempered Glass, and Acrylic Window options
  • Only 1.82" to 2.12" deep
  • Black carbon steel and stainless steel bezel options
  • Panel mount without drilling stud holes
  • 5 ft. cables included (optional to 1000 ft.)
  • Industrial Certifications: UL 508A, UL 50E, FCC Class A, CE, UL 60950 3rd Edition / cUL Recognized Component


Optional Accessories

  • Industrial Panel Mount Keyboards (NEMA 4X rated)
  • Screen Protectors (all sizes)
  • Extended cable options up to 1000'
  • KVM Extenders
Display
Type Thin-film transistor (TFT) Active Matrix Liquid Crystal, LED Backlit
Size 15" diagonal / 5:3
Image Size (W x H) 304 x 228 mm (12.0" x 9.0")
Native Resolution* (1024 x 768 @ 60Hz)
Pixel Pitch 0.297 mm x 0.297 mm
Number of Colors 16.7 million
Brightness (white) 400 nits (cd/m2)
Viewing Angle (Hori/Vert) 170° / 170°
Contrast Ratio 1500:1
Backlight Brightness half-life 60,000 hours

Video
Input Connectors HD-15, DVI-I
Inputs using Adapter** HDMI, DisplayPort, or BNC
Input Signal Formats*** RGB Analog video, Separate H/V sync, Composite sync, Sync on Green; DVI
Horizontal / Vertical Scan 31-73 kHz/50-75 Hz
Response Rate 35 ms
Environmental
Temperature Operating: 0° to 50°C (32° to 122°F); Storage: -20° to 60°C (-4° to 140°F)
Humidity 20% to 90% non-condensing
Operating Shock / Vibration 15 g, 6 msec, half-sine / Operating (sine): 1.0 g, swept sine 9-500 Hz; Transport (random): 0.1g2 /Hz, 10-200Hz; 0.03g2 /Hz, 200-2000 Hz
Altitude Operating: up to 10,000 ft; Non-operating: up to 40,000 ft
Electrical
Monitor Input 100 to 240 VAC, 1.5/0.75 A, 60/50 Hz or 9.6 to 36.6 VDC, 2.5 to 0.65 A
Power Consumption ~16.8 W
Physical
Enclosure Type Panel mount; rear collar compresses gasket against panel (5/16" maximum panel thickness); held by M5 studs
Panel Rating (with proper installation) Black powder-coated carbon steel: NEMA/UL Type 12/4; built to IP65/IP66 standards Stainless steel: NEMA/UL Type 12/4/4X; built to IP65/IP66 standards
Depth behind Panel 46.2 mm (1.82")
Front Bezel Outside Dimensions (WxHxD) 437.8 mm x 353.6 mm x 7 mm (17.24"x13.92"x0.28")
Cutout Dimensions (WxH) 406.9 mm x 323.1 mm (16.02" x 12.72")
Net / Shipping Weight 14 lbs. /18 lbs.
Window Options Analog Resistive Touch Screen, Tempered Glass, or Acrylic Protective window options. Touch Screen option is a 5-wire resistive system, emulates a mouse, and uses Serial RS-232 or USB interface to host computer. Glass-armored touch screen including sulfur gas protection also available (call for details).
Compliances and Certifications
Electrical UL/EN/IEC62368-1, UL/EN/IEC60950-1, UL Recognized Component for US and Canada, UL 508A, CAN ICES-3A/NMB-3A, CE, FCC Class A, NOM

Enclosure, Environmental

UL 50E, IEC 60721-3 (Reliability), WEEE (Registration No. WEE/DJ1859ZX for UK only)

Hazardous Location

UL Listed for Class I, II, III, Division 2, Groups A, B, C, D, F, G; T-Code T4A
