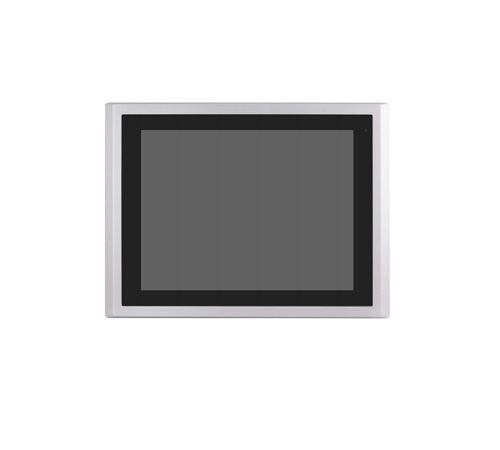

15" Fanless HMI Barebone w/ Intel Core i3-6100U 1x DDR4 Slot, Projected Capacitive touch, 9~36VDC (Model: APC1500i3-ARC1)

15" XGA fanless HMI barebone with Intel 6th Gen. Core i3-6100U CPU, 1x DDR4 Slot, Projected Capacitive touch, 9~36VDC input with Adapter, Aluminum Chassis.

15" XGA fanless HMI barebone with Intel 6th Gen. Core i3-6100U CPU, 1x DDR4 Slot, Projected Capacitive touch, 9~36VDC input with Adapter, Aluminum Chassis.

Inquiry/Quote Request
APC1500i3-ARC1
  • Overview
  • Specifications
  • Download
The APC1500i3-ARC1 is a 15-inch fanless HMI barebone Panel PC, engineered for industrial-grade applications requiring enhanced reliability and no moving parts. Its fan-free design ensures silent operation and reduced maintenance, while the open barebone architecture offers flexible customization. Built for durability and integration, this panel PC is well-suited to demanding environments where consistent performance and ruggedness are paramount.


Features:
  • 15" Industrial Compact Panel PC
  • Processor: Intel Core i5-6300U
  • Memory: 1 x 260-pin SO-DIMM DDR4 up to 16GB 2133MHz
  • Front Bezel: IP66-compliant aluminum
  • Touchscreen: Projected capacitive multi-touch support
  • Display Option: High-brightness LCD version available
  • Cooling: Fanless design
  • Power Input: DC 9~36 V wide range
System
CPU Onboard 6th Gen Intel Core i5-6300U Processor (3M Cache,2.30 GHz) / Intel Core i5-6300U Processor (3M Cache,2.30 GHz)
System Chipset SoC
Memory 8GB DDR4 3200 SO-DIMM
TPM TPM 2.0
I/O Port
USB 2 x USB 3.0 type A
Serial 1 x RS-232/422/485 DB9 (COM1), default RS-232
1 x RS-232 DB9 (COM2)
Audio 1 x Audio Line Out
LAN 2 x GbE LAN RJ-45
Power 1 x 3-pin Terminal Block Connector
1 x 2-pin Power Switch Connector
Option VESA Stand
4G LTE/WiFi/ BT
4 x USB 2.0 type A (TB-528U4)
4 x USB 2.0 type A + 1 x Mini-PCIe + 1 x SIM slot (TB-528U4ME1)
2 x COM (RS-232) (TB-528C2)
1 x COM (RS-232) + 2 x USB 2.0 (TB-528C1U2)
1 x COM (RS-232) + 2 x USB 2.0 + 1 x Power Button (TB-528C1U2P1)
2 x COM (RS-232) + 1 x Mini-PCIe slot + 1 x SIM slot (TB-528C2ME1)
2 x COM (RS-422/485, isolated) (TB-528C2I)
2 x CAN (TB-528CAN2)
1 x LAN + 2 x USB 2.0 type A (TB-528E1U2)
1 x LAN(45W isolated PoE PD) + 2 x USB 2.0 type A (TB528E1U2UPOE)
Backup Battery 21W/10.8V/1.95Ah(3S1P)
System is only allowed to build in either I/O board TB-528 series or backup battery
Storage Space
HDD 1 x 2.5" SATA3 HDD space
Display
Display Type 15" TFT-LCD
Max. Resolution 1024 x 768
Max. Color 16.7M
Luminance (cd/m2) 1000
View Angle 176(H)/176(V)
Contrast 800:1
Backlight Lifetime 70,000 hrs
Touch Screen
Type Projected Capacitive Touch
Interface USB
Light Transmission(%) 90%

Power
Power Input DC 9~36V
Power Consumption 41W (MAX)
Mechanical
Construction Aluminum Die-casting Chassis
Mounting Panel Mount , VESA mount 100x100
Dimensions (WxHxD) 410 x 310 x 54.67 mm
IP Rating IP66 Compliant Front Bezel
Net Weight 4.4 kg
Environmental
Operating Temperature 0~50˚C
Storage Temperature -30~70˚C
Humidity 10 to 95%@ 40˚C, non-condensing
Certificate CE/FCC Class A/UL
Operating System
Windows 10 IoT Enterprise 2021 LTSC Value PKEA
