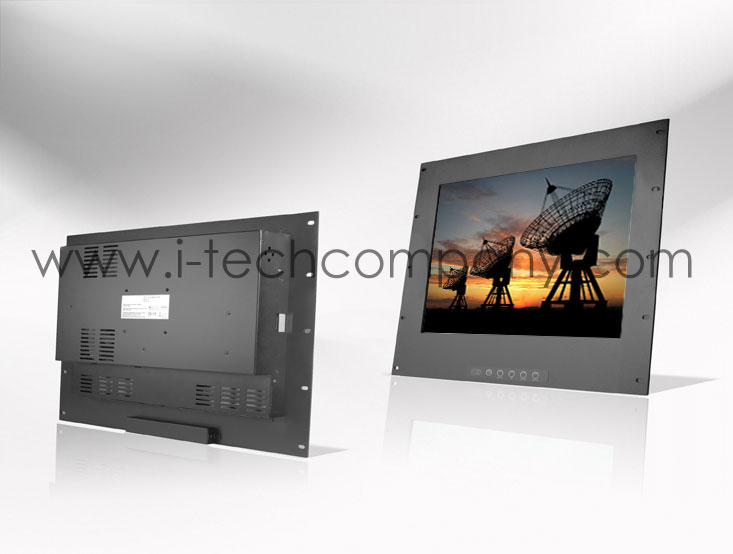

9U Rack Mount, 21.5" Wide LCD Monitor, 1920x1080, 300 nits w/ PCAP Touch (1-2mm) USB Controller (Model: ERMW2150-PCT)

9U Rack Mount, 21.5" Widescreen LCD monitor, 1920 x 1080, 300 nits w/ Projective Capacitive Touchscreen (1-2mm) USB Controller (Model: ERMW2150-PCT)

9U Rack Mount, 21.5" Widescreen LCD monitor, 1920 x 1080, 300 nits w/ Projective Capacitive Touchscreen (1-2mm) USB Controller (Model: ERMW2150-PCT)

Inquiry/Quote Request
ERMW2150-PCT
  • Overview
  • Download

Features:
  • Modularize mechanical design provides flexible product configuration and easy maintenance
  • VGA connector with optional AV.SV.AV-Looping Complete custom design/solution for OEM customers
  • Available with auto-brightness sensor offers application in day and night
  • Optional build-in touch screen for interactive application


Specifications:

Panel Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low reflection coating
Aspect Ratio / Size Wide / 21.5" viewable diagonal area
Active Area / Pixel Pitch 476.64(H) x 268.11(V) mm / 0.248(H) x 0.248(V) mm

Native Resolution / Colors

1920(H) x 1080(V) / 16.7 Million
Brightness / Contrast 300 cd/m2 (typ) / 1000 :1
Response Time s 5 ms
Viewing Angle (typical) H. 170° (- 85° ~ + 85°) , V. 160°(- 80° ~ + 80°)
Light Source CCFL Back Light, Long life, 50,000 hrs (typ)
Input Sources PC System Signal Analog RGB (0.7/1.0 Vp.p, 75 ohms)
Sync Separate Sync, Composite Sync, Sync On Green
Frequency Fh: 30 - 82Khz , Fv: 50 -75Hz
Audio System 2W Speaker x 2
Input Terminals 1 x VGA (15 Pin Female D-Sub), 1 x PC Audio (Stereo Headphone Jack), 1 x AC Inlet
Convenient Features Auto Calibration , Back Light Adjustment, Plug&Play (VESA DDC/CI, DDC 2B)
OSD Multi-Languages , Wall Mount Ready (VESA 75 x 75 mm)
Power Internal power supply with universal / Auto-Sensing, AC 90 to 260V, 50 / 60 Hz
Power Consumption Operation / Power Saving 28.72 watt, < 1 watt (Support DPMS)
Operating Condition Temperature / Humidity 0°C ~ 50°C (32°F ~ 122°F), 10% ~ 90% (no condensation)
Storage Condition Temperature / Humidity - 20°C ~ 60°C (- 4°F ~ 140°F), 10% ~ 90% (no condensation)
Certification   FCC,CE
Dimensions Physical W x H x D = 583.0 x 395.0(9U) x 66.0 mm
Carton W x H x D = TBD
Weight N.W. / G.W. 8.5 Kgs / 9.5 Kgs
Container Loaded 20ft / 40ft / 40ft HQ TBD (Sets , By pallet)

Options Touch Video / TV Enhanced Panel Others

Resistive (With glass)

SV + AV

Panel with LED backlight

Digital Signage(Stand alone)

Capacitive

SV + AV + AV_Looping

High brightness panel Networking Digital Signage
SAW SV + AV + TV Wide Temperature Motion Sensor
    Sun Light Readable Light Sensor
      Auto-Dimming
