17.3" FHD 1000-nit Rugged LCD Resistive Touch, Intel Xeon, NVIDIA GT1030, Supermicro X14SBI-F ATX (Model: BPC1730HB-X14-X6)

17.3" FHD 1000-nit Rugged LCD Resistive Touch, Aluminum Enclosure with Rubber Corners, Intel Xeon, NVIDIA GT1030, Supermicro X14SBI-F ATX

17.3" FHD 1000-nit Rugged LCD Resistive Touch, Aluminum Enclosure with Rubber Corners, Intel Xeon, NVIDIA GT1030, Supermicro X14SBI-F ATX

Inquiry/Quote Request
BPC1730HB-X14-X6
  • Overview
  • Specifications
  • Download

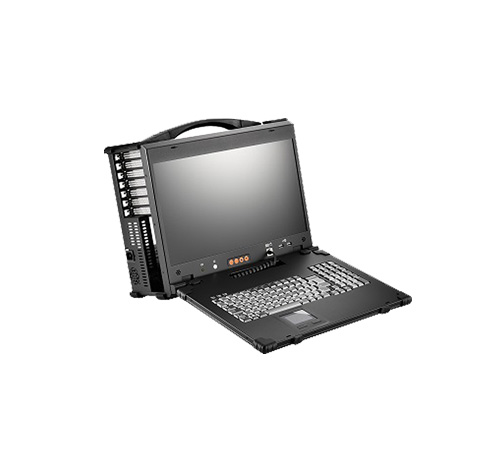

The BPC1730HB-X14-X6 is a rugged 17-inch portable computer engineered for demanding industrial, military, field service, and mobile workstation applications. Housed in a durable aluminum enclosure with protective rubber corners, this high-performance system features a 17.3" Full HD display with resistive touchscreen, support for Intel® Xeon® 6 Series processors, and the Supermicro X14SBI-F server-grade motherboard. Designed for reliability in harsh environments, the unit delivers powerful computing, flexible expansion capabilities, and dependable operation for mission-critical applications.


Features:
  • Sturdy aluminum alloy build featuring shock-absorbing rubber corners
  • Inclusion of an integrated 17.3" Full HD LCD Display boasting a resolution of 1920x1080
  • Equipped with a space-saving 1U 600W Full Range Power Supply
  • Optional touchscreen functionality for enhanced user interaction
  • Versatile storage options with support for 2x 5.25", 1x hidden 2.5" bay, and slim DVD-RW drive bays
  • Integration of a built-in keyboard and touchpad for seamless user input.
Chassis Rugged Aluminum portable enclosure with rubber corners
Display 17.3" LCD (1920x1080 Resolution) VGA connector or DVI or HDMI if adding video card
High Brightness ***1000 nits high brightness LCD display***
Touch Screen Resistive USB interface Touch Screen
K/B & Mouse Foldable USA language keyboard w/touchpad
Mainboard Supermicro X14SBI-F, ATX Server board
Slots Layout 3 PCIe 5.0 x8 slots
3 PCIe 5.0 x16 slots
CPU Type Intel® Xeon® 6731P Processor 144M Cache, 32 Cores 2.50 GHz (Max Turbo 4.1GHz)
TPM Onboard TPM9672
Chipset System on Chip
Memory 256GB ECC DDR5 RDIMM (4x64GB)
Video Card 1 NVIDIA GeForce GT1030 1G DDR3 PCI-E Video Card
Video Card 2 N/A
Open Slots 3 PCIe 5.0 x16, 2 PCIe 5.0 x8
Open M.2 slot 1x M.2 PCIe 5.0 x2 slot (M-key 22110) open after system integration
Data Drive Micron 2.5" U.3 SSD 3.84 TB PCIe NVMe 4.0 x4 (Installed into the removable kit)
OS Drive Samsung 4TB 9100 PRO PCIe 5.0 M.2 Internal SSD with Heatsink + M.2 22110 carrier
Ports 2x RJ45 1 GbE LAN port(s)
1x RJ45 1 GbE Dedicated IPMI LAN port(s)
2 USB 3.2 Gen1 port(s) (Rear)
1 VGA D-Sub Connector port(s)
Removable Kit ToughArmor MB699VP-B V3, 4 Bay 2.5" U.2/U.3 NVMe SSD PCIe 4.0 Mobile Rack Enclosure
MCIO  Cables 2x MCIO 8i SFF-TA-1016 to 2x Oculink 4i SFF-8611 Cable
LAN Dual LAN with Intel® i210 Gigabit Ethernet Controller
Optical Drive Slim DVDRW + Mounting kit
Audio N/A (PCIe Sound card required if needed)
Power Supply 1U, 600W, 100~240VAC, Auto switch
Software Microsoft Windows 11 Pro OS
Cargo Case: Pelican Air Cargo Case 1620 with foam (Optional)
Warranty Standard One Year Limited Warranty - Parts and Labor
Chassis Dimension 417Wx 352Hx 186D mm (16.42"x 13.86"x 7.32")

Environment Operating Non-Operating
Temperature 0°C~50°C -20°C~60°C
Relative Humidity 10%~90% 10%~95%
Approval CE, FCC, RoHS
