17.3" 1920x1080 Portable Panel PC with Intel Core i7 32GB RAM, 1TB SSD M.2 with Resitive Touch (Model: ARPW1730-i7-L7)

17.3" 1920x1080 Portable Panel PC with Intel Core i7 32GB RAM, 1TB SSD M.2 with Resitive Touch

Overview
Specifications
Download

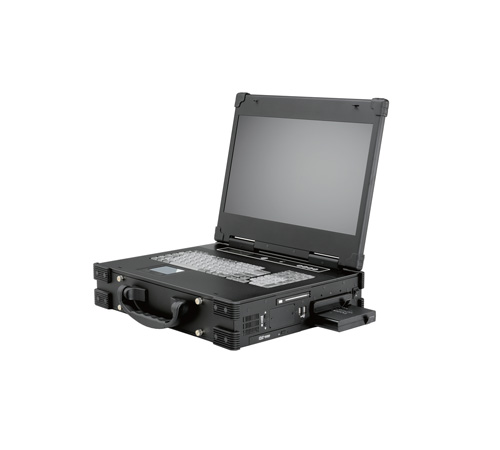

The ARPW1730-i7-L7 is a high-performance 17.3-inch rugged portable Panel PC designed for demanding industrial, field, and mobile computing applications. Its compact aluminum enclosure with protective rubber corners provides a durable yet portable platform, while the integrated 17.3-inch Full HD 1920 x 1080 resistive touchscreen delivers clear and responsive operation.

For mobile and field applications, the ARPW1730-i7-L7 includes hot-swappable Li-ion battery packs, providing up to 4 hours of battery operation, along with a foldable industrial keyboard and touchpad. A wheeled carrying bag is included for convenient transportation.

Features:

All-in-one design rugged portable computer
Compact Size Lightweight Design
Built-in 17.3", 1920x 1080 LCD display
Intel Core i7 processor 14700T 33M Cache, up to 5.20 GHz
Industrial Keyboard multi-language with touchpad
2 PCIe (x8) expansion slots
32GB DDR5 DIMM (Max. 64GB)
1TB Solid State Drive M.2 2280 Internal PCI Express NVMe
Complimentary carrying bag with wheels

Chassis	Rugged Aluminum portable enclosure with rubber corners
Display	17.3" HD LCD (1920x1080 Resolution), DP connects through on-board rear I/O
Touch Screen	17.3" Resistive touch glass, single-point touch
K/B & Mouse	Foldable USA language keyboard w/touchpad
Mainboard	MI1000AF-R-1, LGA1700 R680E Mini-ITX motherboard, 2x DisplayPort,2x Dual 2.5GbE, 4x SATA, RAID, iAMT (16.1), fTPM (2.0)
Slots Layout	2 PCI full-length expansion slots, 1 PCI-E (x16) + 1x PCI-E(x1) full-length expansion slot
CPU Type	Intel® Core i7 processor 14700T 33M Cache, up to 5.20 GHz
Chipset	Intel® R680E Chipset
Memory	32GB DDR5 DIMM (Max. 64GB)
LCD Video	On-Board DP, Intel® UHD Graphics 730
Internal Drives	1TB Solid State Drive M.2 2280 Internal PCI Express NVMe
Removable Drives	1x 2.5" SATA removable slots
Rear I/O Ports	2x COM ports: 1x RS232/422/485 + 1x RS232, 2x DP(one reserved for ARP1000's LCD), 6x USB 3.2 connectors(one reserved for USB Wifi adapter), 2x 2.5 Gbit LAN RJ-45, RCA Jack 3x1 for HD audio
Audio	Realtek® ALC888S High Definition Audio Codec
LAN	LAN 1: Intel® I226LM , supports 2.5G and iAMT
	LAN 2: Intel® I226V, supports 2.5G only"
Optical Drive	Slim DVDRW
Power Supply	2x 95W Li-ION battery Packs (Hot-Swappable), 100W AC Adapter, up to 4 hours battery life
Software	Windows 11 Pro 64-bit
Carrying Bag	Complimentary carrying bag with wheels
Warranty	Standard one year manufacturing warranty
Dimension	428.6Wx 110.7Hx 367.5D mm (16.89"x 4.36"x 14.47")
Cargo Case	630.7 x 301.8 x 500.1 mm Pelican Cargo Case
ENVIRONMENTAL FACTORS
	Operating	Non-Operating
Temperature	0°C~50°C	-20°C~60°C
Relative Humidity	10%~90%	10%~95%
Approval	CE FCC RoHS
