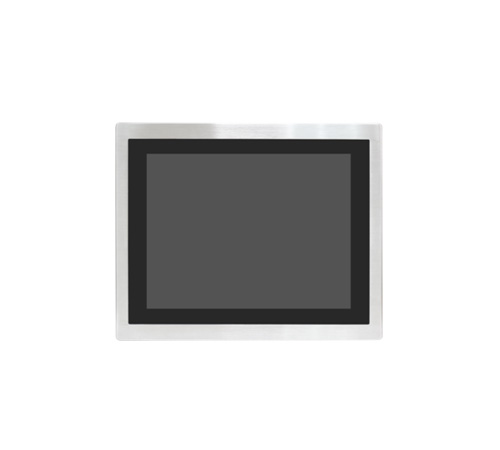

15" Fanless Panel PC IP66 Intel Celeron, 8GB RAM, 128GB SSD, DC9~36V with PCAP Touch (Model: APC15N2-UL-P)
15" XGA IP66 Intel Celeron N2930 1.8G CPU fan less panel PC, 8GB DDR3L memory on board, 1 x 128GB 2.5" MLC SSD, 1 x 64GB mSATA MLC SSD, Projected Capacitive Touch, DC9~36V Power Input, 316 Stainless Steel Enclosure, Support VESA Mount, WT-20~60
APC15N2-UL-P
- Overview
- Specifications
- Download
| SYSTEM |
| CPU |
Onboard Intel Celeron N2930 Processor
(2M Cache,1.83GHz) |
| System Memory |
SoC |
| System Chipset |
Onboard 8GB DDR3L 1333MHz |
| IO Port |
| USB |
1 x M12 8-pin for 2 x USB 2.0 with waterproof cover and chain |
| Serial/Parallel |
1 x M12 8-pin for COM1, RS-232/422/485, default RS-232, with waterproof cover and chain |
| Graph |
1 x M12 8-pin for VGA with waterproof cover and chain |
| LAN |
2 x M12 8-pin for LAN with waterproof cover and chain |
| Power |
1 x M12 3-pin for DC power connector with waterproof cover and chain |
| Storage Space |
| HDD |
1 x 2.5" HDD or SSD space
1 x mSATA space |
| Movable device |
1 x Internal SD Card |
| Expansion |
| On board expansion bus |
1 x Mini-PCIe (full size) |
|
| |
| Display |
| Display Type |
15" TFT-LCD |
| Max. Resolution |
1024 x 768 |
| Max. Color |
16.2M |
| Brightness |
450 |
| View Angle |
160(H) /150(V) |
| Contrast Ratio |
800:1 |
| Backlight Lifetime |
70,000 hrs |
|
| |
| TOUCHSCREEN |
| Type |
Projected Capacitive Touch |
| Interface |
USB |
| Light Transmission(%) |
90% |
| POWER SUPPLY |
| Power Input |
DC 9~36V |
| Power Consumption |
19W |
| MECHANICAL |
| Construction |
316 stainless steel chassis |
| IP Rating |
Total IP66 |
| Mounting |
VESA mount 100 x 100, Panel mount (option) |
| Dimension |
399 x 324 x 70 mm |
| Net Weight |
9.8 kg |
| ENVIRONMENTAL |
| Operating Temperature |
-20~60°C |
| Storage Temperature |
-30~70°C |
| Storage Humidity |
10 to 95% @ 40°C, non- condensing |
| Safety |
CSA C22.2 No.61010 |
| Certificate |
CE / FCC Class A
ATEx / IECEx Zone2 Ex ec ic IIC T4 Gc
ATEx / IECEx Zone22 Ex tc IIIC T135°C Dc
Class I, Division2, Group A,B,C,D,T4
Class II, Division2, Group F,G, T135°C
Class III
ANSI/ISA 12.12-01-2013
CSA Std., C22 No213-1987 |
|
| |
| Operating System Support |
Windows embedded 7
Windows embedded 8.1
Windows 10 IoT ENT LTSB |
|
