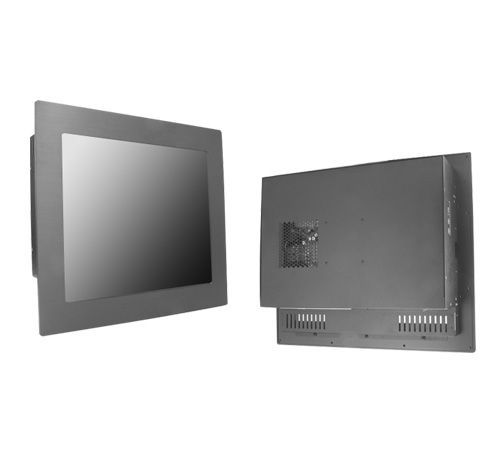

15" IP65 Front Panel PC w/ PCAP Touch, JNC8H-H310 / i3-8100T, RAM 8GB, SSD 256GB, Win 11 Pro 64bit (Model: CPM1500-i3-PCAP)
15" IP65 Front Panel PC 1024x768, 250nits, VESA Mount with PCAP Touch + JNC8H-H310 / i3-8100T / RAM 8GB / SSD 256GB, 9-36VDC with Terminal Block and 24VDC Power Adapter, Win 11 Pro 64bit Installation
CPM1500-i3-PCAP
- Overview
- Specifications
- Download
| Panel |
Cell Type / Glass Surface |
TFT LCD / Black Anti-Glare, low reflection coating |
| Aspect Ratio / Size |
4 : 3 / 15" viewable diagonal area |
| Active Area / Pixel Pitch |
305.3(H) x 229.2(V) mm / 0.297(H) x 0.297(V) mm |
| Native Resolution / Colors |
1024(H) x 768(V) / 16.2 M |
| Brightness / Contrast |
250 cd/m2 (typ) / 700 : 1 |
| Response Time |
< 35 ms |
| Viewing Angle (typical) |
H. 140° (- 70° ~ + 70°) , V. 120° (- 60° ~ + 60°) |
| Light Source |
LED backlight, Long life, 35,000 hrs (typ) |
| Power |
Power Input |
9-36VDC with Terminal block and 24VDC power adapter for testing |
| Power Consumption |
30 Watt, <1 Watt |
| Operating Condition |
Temperature / Humidity |
0oC ~ 60oC (32oF ~ 140oF) , 10% ~ 90% (no condensation) |
| Dimensions |
Physical |
Please refer to Drawing |
| Carton |
W x H x D = TBD |
|
| |
Motherboard Specifications |
- Intel LGA1151 Socket Core i3,i5,i7 Pentium Processor (Max 65W)
- Intel Coffee Lake-S H310 Chip support 9th CPU
- Support Single Channel DDR4 2133MHz, up to 64GB
- Realtek ALC662VD Audio
- 1* Intel 1219-V + 1* Intel i211AT GbE
- 1* SATAIII (6Gb/s) & M.2 (M key 2242)
- HDMI/VGA/EDP (CO-lay LVDS) Output
- 4* RS232 (COM1/2 Support 5V/12V TTL), 4* External USB3.0, 5* Internal USB2.0
- 1* PCIe x4 Slot, 1* M.2 E key Support CNVi
- DC 12~24V Input
- Thin MINI ITX Form Factor (170 *170 mm)
|
| |
| Form Factor |
| Dimensions |
- Thin Mini ITX ( 170 * 170mm) |
| Processor System |
| CPU |
- Intel LGA1151 Series Processor (Max. 65W) |
| Core Number |
- by CPU |
| Max Speed |
- by CPU |
| L2 Cache |
- by CPU |
| Chipset |
-H310 |
| BIOS |
-AMI 128M Flash ROM |
| Expansion Slot |
| M.2 |
-1 (E key 2230,Support CNVi)
-1 (M Key 2242) |
| SATA |
-1 |
| PCI-e |
-1 * PCI-E x4 slot |
| Memory |
| Technology |
- Single channel DDR4 2133MHz DRAM |
| Max. |
-64GB |
| Socket |
-2*SO-DIMM |
| Graphics |
| Controller |
- Intel HD Graphics |
| VRAM |
- Shared Memory |
| VGA |
-1 (Max. Resolution: 1920xl200@60Hz) |
| LVDS |
-1 (Co-lay eDP, Max. Resolution: 1920xl080@60Hz) |
| eDP1.3 |
-1 (Co-lay LVDS, Max. Resolution: 4096x2304@60Hz) |
| HDMI 1.4 |
-1 (Max Resolution : 4096x2160@30Hz) |
| Multi Display |
- Dual Display |
| Ethernet |
| Ethernet |
-10/100/1000 Mbps |
| Controller |
- Intel 1219-V + i211AT Gigabit LAN |
| Connector |
- 2* RJ 45 |
| Audio |
| CODEC |
- HD Audio : Realtek ALC662VD |
| Channel |
- Line-Out, MIC |
| SATA |
| Max Data Transfer Rate |
-1* SATAN III (6.0Gb/s) |
|
| |
| Rear I/O |
| VGA |
-1 |
| HDMI |
-1 |
| Ethernet |
-2 |
| USB |
-4* USB 3.0 |
| Audio |
-1 (Line-out, MIC) |
| DC-input |
-1 |
| Internal Connector |
| USB |
-5 (USB 2.0) |
| PS/2 |
-1 |
| LVDS / inverter |
-1 (Co-lay eDP) |
| eDP |
-1 |
| Serial |
- 4 (COM1/2 Support 5V/12V TTL) |
| SATA |
-1* SATAN III (6.0Gb/s) |
| M.2 |
- 2 (M key + E key) |
| GPIO |
-1 (8 bit) |
| Chassis intrusion |
-1 |
| Audio Header |
-1 |
| SMBUS/I2C |
-1 |
| AT mode |
-1 |
| Watchdog Timer |
|
| Output |
- From Super I/O to drag RESETCON# |
| Interval |
- 256 segments (lOsec ~ 255min) |
| Power Requirements |
| Input PWR |
-100-240VAC input |
| Power On |
AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready |
| Certifications |
| Certifications |
- CE, FCC, RoHS, REACH |
| Environment |
| Temperature |
- Operating: 0°C~60°C |
| |
- Storage: -20°C~85°C |
| Warranty |
| Warranty |
- 2 Years Limited Warranty |
| Packing |
| Packing |
- Net Weight:
- Gross Weight:
- Color Box dimension: 362*290.5*65mm |
|
| |
