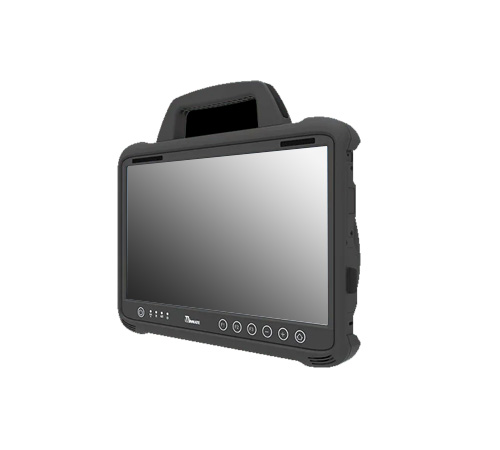

13.3" Ultra Rugged IP65 Tablet with Intel Core Ultra 5 125U, 8GB RAM, 128GB SSD, Windows 11 IoT (Model: MTB133-U5)
13.3" 1920x1080 Industrial Ultra Rugged IP65 Tablet with Intel Core Ultra 5 125U, 8GB RAM, 128GB SSD, Windows 11 IoT
MTB133-U5
- Overview
- Specifications
- Download
| Display |
| Resolution |
1920x1200 |
Size |
13.3 inches |
| Contrast Ratio |
1000:1 |
Panel Brightness |
500 nits |
| View Angles |
89,89,89,89 |
Active Area |
518.4x324.0 mm |
| Bonding |
Optical Bonding for Sunlight Viewability |
Type |
Projected Capacitive Multi Touch |
| System Specification |
| Processor |
Intel Core Ultra 5 processor 125U 2.1 GHz (up to 4.3 GHz) |
Memory |
8GB (Default)
16GB (Optional)
32GB (Optional) |
| Storage |
128GB SSD, Additional storage available with micro SDXC card slot (Default)
256GB SSD (Optional) / 512GB SSD (Optional)
1TB SSD (Optional) / 2TB SSD (Optional) |
Security |
Trusted Platform Module (TPM) 2.0
Kensington Lock |
| Operating System |
Windows 11 IoT Enterprise LTSC (64 bit) (Default)
Windows 10 IoT Enterprise LTSC (64 bit) (Optional) |
WLAN |
Support |
| BT |
Support |
WWAN |
4G LTE (Optional) |
| GNSS |
GPS, GLONASS |
RFID |
HF RFID reader 13.56 MHz (Optional) |
| Mechanical |
| Dimension |
338.2 x 239.8 x 33.8 mm |
Weight |
2.4 Kg (Without Kickstand),
2.5 Kg (With Kickstand) |
| Cooling System |
Fanless Design |
|
|
| IO Ports |
| USB Port |
3 x USB 3.0 Type A, 2 x USB 2.0 Type A, 1 x USB 3.0 Type C |
Serial Port |
1 x RS232 (DB9) |
| SD Card Slot |
1 x SDXC Slot |
Audio |
2 x 1 watt speaker |
| LAN |
1 x RJ4510/100/1000 Mbps LAN |
Indicator |
4x LED Indicator for Power, Battery, SSD, RF status |
| Docking Connector |
1 x Docking connector |
|
|
| Environment |
| Operating Humidity |
30% to 80% RH, noncondensing |
Operating Temperature |
20° C to 60°C (4°F to 140°F) |
| Storage Temperature |
20°C to 60°C (4°F to 140°F) |
Shock |
MILSTD810G Method 516.6 Procedure I |
| Vibration |
MILSTD810G Method 514.6 Procedure I |
IP rating |
IP65 |
| Drop |
MILSTD810G Method 516.6 Procedure IV, 4 ft |
EMC |
MILSTD461G CE101, CE102, RE101, RE102, CS118 (Default)
MILSTD461G CS101, CS114, CS115, CS116, RS101, RS103 (Optional) |
|
| |
| Certification |
| Certification |
CE, FCC |
| Security Function |
| Kensington Lock |
Kensington Lock Support |
| Control |
| Button |
1 x Power,1 x menu,2 x volume key
3 x Programmable Function Keys |
| Camera |
| Rear Camera |
8MP Rear Camera with autofocus and LED light |
| Power |
| Battery |
15.4V, typ. 5900 mAh LiPolymer Battery (4S1P) (Default)
HotSwap Battery (Optional) |
Power Rating |
19V DC |
| Adapter |
100240V,5060Hz / 19V DC |
| Accessories |
| Accessories |
Adapter and Power Cord
Standard Battery
Stand with Integrated Handle |
Optional Accessories |
Vehicle Charger (Optional)
Battery Charger (Optional)
Desk Docking (Optional)
Vehicle Dock (Optional)
Stylus (Optional)
Shoulder Strap (Optional)
Handle (Optional) |
| Barcode Scanner |
| Barcode Scanner |
1D/2D barcode reader (Optional) |
|
