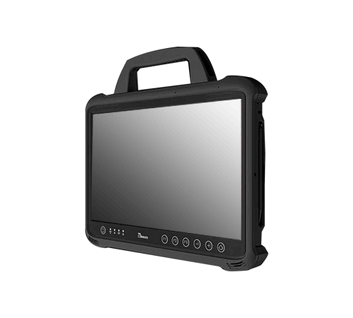

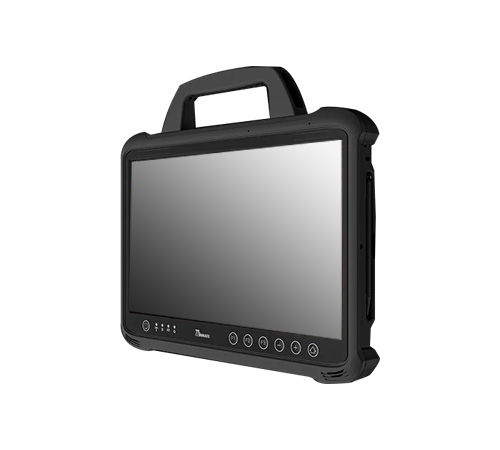

13.3" IP65 Ruggedized Tablet Intel Core i5-8265U, 4GB RAM, 128GB SSD, Ubuntu 22.04 w/ PCAP Multi Touch (Model: MTB133-i58B)

13.3" IP65 Ruggedized Tablet with Optical Bonding, Intel Core i5-8265U, 4GB RAM, 128GB SSD, Ubuntu 22.04 w/ PCAP Multi Touch

13.3" IP65 Ruggedized Tablet with Optical Bonding, Intel Core i5-8265U, 4GB RAM, 128GB SSD, Ubuntu 22.04 w/ PCAP Multi Touch

Inquiry/Quote Request
MTB133-i58B
  • Overview
  • Specifications
  • Download
The MTB133-I58B 13.3" Industrial Ruggedized IP65 Tablet is a durable mobile computing solution designed for industrial, commercial, and field applications. Powered by an Intel Core i5 processor and running Ubuntu 22.04, it provides a flexible platform for Linux-based industrial software and specialized applications.

Its 13.3" touchscreen with optical bonding and PCAP multi-touch technology delivers responsive operation and improved display visibility. The IP65-rated ruggedized enclosure provides protection against dust and water, while the compact design makes the tablet convenient for mobile deployment. The MTB133-I58B is ideal for industrial automation, field service, logistics, inventory management, inspection, and other demanding applications requiring a rugged Linux tablet.


Features:
  • Intel Core i58265U Whiskey Lake processor industrial tablet
  • 13.3" 1920 x 1080 IPS wide viewing angle LED Panel
  • Magnesium alloy housing with allaround elastomeric rubber
  • Built-in kickstand usable as carrying handle(indefinitely adjustable)
  • Cold swap Battery Pack
  • IP65 waterproof and dustproof
  • Optical bonding technology
  • TPM 2.0
Display
Resolution 1920x1200 Size 13.3 inches
Contrast Ratio 1000:1 Panel Brightness 500 nits
View Angles 89,89,89,89 Type Projected Capacitive Multi Touch
Bonding Optical Bonding for Sunlight Viewability
System Specification
Processor Intel Core i58265U 1.6GHz (up to 3.9GHz) Memory 4GB (Default)
8GB (Optional)
16GB (Optional)
Storage Storage 1:
1 x 128GB SSD
Additional storage available with SDXC card slot (Default)
Storage 1 up to 1x 1TB SSD (Optional)
Storage 2 up to 1x 1TB SSD (Optional) 		Security Trusted Platform Module (TPM) 2.0
Kensington Lock
Operating System Ubuntu 22.04 WLAN Support
BT Support WWAN 4G LTE (Optional)
GNSS GPS/GLONASS (Optional)
Mechanical
Dimension 338.2 x 239.8 x 33.8 mm Weight 2.2kg (w/ kickstand)
Cooling System Fanless Design
IO Ports
USB Port 4 x USB 3.0 Type A, 1 x USB 3.0 Type C SD Card Slot 1 x SDXC Slot
SD Card Slot 1 x Micro SIM card slot Audio 2 x 1 watt speaker
LAN 1 x RJ4510/100/1000 Mbps LAN Indicator 4x LED Indicator for Power, Battery, SSD, RF status
Docking Connector 1 x Docking connector
Environment
Operating Humidity 30% to 80% RH, noncondensing Operating Temperature -10°C to 50°C (14°F to 122°F)
Storage Temperature -20°C to 60°C (4°F to 140°F) Shock MILSTD810G Method 516.6 Procedure I
Vibration MILSTD810G Method 514.6 Procedure I IP rating IP65
Drop MILSTD810G Method 516.6 Procedure IV, 4 ft

Certification
Certification CE, FCC
Security Function
Kensington Lock Kensington Lock Support
Control
Button 1 x Power,1 x menu,2 x volume key
3 x Programmable Function Keys
Power
Battery 15.4V, typ. 5900 mAh LiPolymer Battery (4S1P) Battery Operating Time More than 10 hours (BAPCo Tabl etMark v3)
Power Rating 19V DC Adapter 100240V, 5060Hz / 19V DC
Accessories
Accessories Adapter and Power Cord
Standard Battery
Stylus
Stand with Integrated Kickstand 		Optional Accessories Vehicle Charger (Optional)
Battery Charger (Optional)
Desk Docking (Optional)
Handle (Optional)
