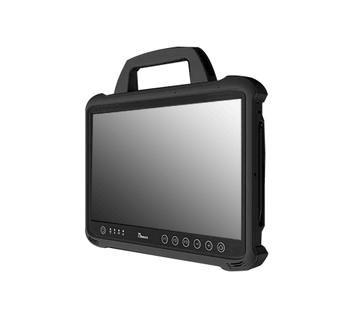

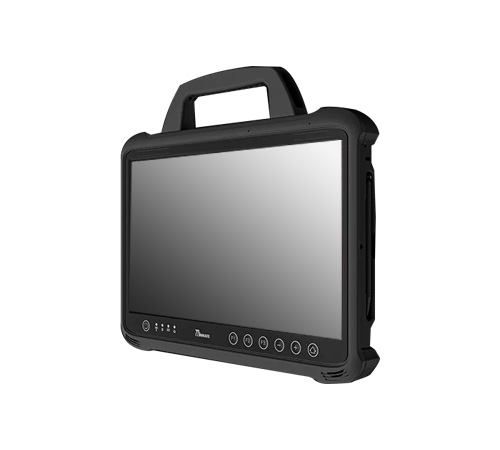

13.3" IP65 Ruggedized Tablet Intel Core i5-8265U, 4GB RAM, 128GB SSD, Windows 10 IoT w/ PCAP Multi Touch (Model: MTB133-i58)

13.3" IP65 Ruggedized Tablet with Optical Bonding, Intel Core i5-8265U, 4GB RAM, 128GB SSD, Windows 10 IoT w/ PCAP Multi Touch

13.3" IP65 Ruggedized Tablet with Optical Bonding, Intel Core i5-8265U, 4GB RAM, 128GB SSD, Windows 10 IoT w/ PCAP Multi Touch

Inquiry/Quote Request
MTB133-i58
  • Overview
  • Specifications
  • Download
The MTB133-I58 13.3" Industrial Ruggedized IP65 Tablet is engineered to provide reliable mobile computing in demanding industrial and professional environments. Equipped with an Intel Core i5 processor and Windows 10 IoT, the tablet provides a familiar and flexible computing platform for a wide range of industrial applications.

The 13.3" display features PCAP multi-touch and optical bonding, providing a responsive and durable touchscreen interface. Its IP65-rated ruggedized design helps protect the tablet against dust and water, making it suitable for challenging environments. The MTB133-I58 is an ideal choice for manufacturing, field service, warehouse operations, logistics, inspection, industrial control, and mobile data collection.


Features:
  • Intel Core i58265U Whiskey Lake processor
  • 13.3" 1920 x 1080 IPS wide viewing angle LED Panel
  • Magnesium alloy housing with all-around elastomeric rubber
  • Built-in kickstand usable as carrying handle(indefinitely adjustable)
  • Cold swap Battery Pack
  • IP65 waterproof and dustproof
  • Optical bonding technology
  • TPM 2.0
Display
Resolution 1920x1200 Size 13.3 inches
Contrast Ratio 1000:1 Panel Brightness 500 nits
View Angles 89,89,89,89 Type Projected Capacitive Multi Touch
Bonding Optical Bonding for Sunlight Viewability
System Specification
Processor Intel Core i58265U 1.6GHz (up to 3.9GHz) Memory 4GB (Default)
8GB (Optional)
16GB (Optional)
Storage Storage 1:
1 x 128GB SSD
Additional storage available with SDXC card slot (Default)
Storage 1 up to 1x 1TB SSD (Optional)
Storage 2 up to 1x 1TB SSD (Optional) 		Security Trusted Platform Module (TPM) 2.0
Kensington Lock
Operating System Windows 10 IoT Enterprise LTSC (64 bit) (Default)
Windows 11 IoT Enterprise LTSC (64 bit) (Optional)		 WLAN Support
BT Support WWAN 4G LTE (Optional)
GNSS GPS/GLONASS (Optional)
Mechanical
Dimension 338.2 x 239.8 x 33.8 mm Weight 2.2kg (w/ kickstand)
Cooling System Fanless Design
IO Ports
USB Port 4 x USB 3.0 Type A, 1 x USB 3.0 Type C SD Card Slot 1 x SDXC Slot
SD Card Slot 1 x Micro SIM card slot Audio 2 x 1 watt speaker
LAN 1 x RJ4510/100/1000 Mbps LAN Indicator 4x LED Indicator for Power, Battery, SSD, RF status
Docking Connector 1 x Docking connector
Environment
Operating Humidity 30% to 80% RH, noncondensing Operating Temperature -10°C to 50°C (14°F to 122°F)
Storage Temperature -20°C to 60°C (4°F to 140°F) Shock MILSTD810G Method 516.6 Procedure I
Vibration MILSTD810G Method 514.6 Procedure I IP rating IP65
Drop MILSTD810G Method 516.6 Procedure IV, 4 ft

Certification
Certification CE, FCC
Security Function
Kensington Lock Kensington Lock Support
Control
Button 1 x Power,1 x menu,2 x volume key
3 x Programmable Function Keys
Power
Battery 15.4V, typ. 5900 mAh LiPolymer Battery (4S1P) Battery Operating Time More than 10 hours (BAPCo Tabl etMark v3)
Power Rating 19V DC Adapter 100240V, 5060Hz / 19V DC
Accessories
Accessories Adapter and Power Cord
Standard Battery
Stylus
Stand with Integrated Kickstand 		Optional Accessories Vehicle Charger (Optional)
Battery Charger (Optional)
Desk Docking (Optional)
Handle (Optional)
