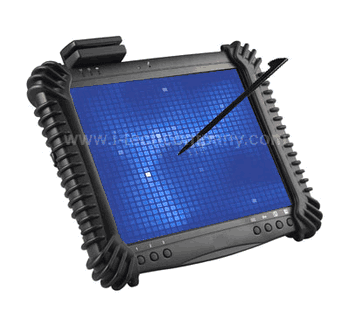

Digital Tablet for High Performance Wireless Computing

The 310C/310X/310T features the integration of a brilliant 10.4” touch display over an efficient AMD Geode™ processor within a thin, light, durable package. Ideal for mobile computing, the 310C/310X/310T is more dependable than a laptop, offers a larger display than a PDA, and is easy to use and integrate with other systems. With a stylus-activated touch screen, on-screen keyboards, and an optional outdoor-viewable display, the 310C/310X/310T performs on the sales floor, in the warehouse, in the classroom, and in the field.

Features:

Light and rugged; protective bumpers and screen cover
Fan-less operation, no moving parts with flash-based storage
Support for Windows CE.NET, Windows XP Embedded and XP TabletPC Edition
Comprehensive and easy remote device administration through server-based iTechLCD Device Manager software
VESA-compliant cradles for mounting options

Major Options

Outdoor-viewable display option
Color: Black/ White Housing
Optional Magnetic Stripe Reader (MSR), triple track readers (ISO TK1, 2 & 3), high-performance decoding with ultra-compact design
Optional 2 Mega-pixels Camera, support auto focus, auto white balance and exposure
Optional 2D barcode scanner, reads both 1D and 2D barcodes, extremely durable, integrated for hassle-free operation

The iTechLCD Mobile Tablet has a suite of customized accessories to meet numerous deployment needs.

The 310C/310X/310T Standard Package
	One 310C/310X/310T with Internal Battery Pack, Stylus, Bumpers, and Screen Cover AC-DC Power Adapter with Power Cord Documentation

Optional Accessories
	External Battery Pack External, snap-on, hot-swappable battery pack - doubles duration of mobile operation, Li-Lon, 28W.

	Desktop Stand Cost-effective option for storage or parking of device.

	Desktop Charging Stand Cost-effective option for charging and parking of device.

	Desktop Charging Cradle Docking support with ports for Power, USB and Ethernet. Power Supply is not included.

	USB-Ethernet Dongle USB 2.0 Hub with 3 USB ports and USB-to-Ethernet port.

	External Battery Charger Kit with AC Adapter & Power Cord Recharges external battery pack "offline" without affecting usage of device

	Internal Battery Pack Replacement or spare for internal battery pack. Li-lon, 14W.

	6-Bay External Battery Charger Charges up to six External Battery Packs simultaneously

	Screen Protectors for 10.4" Display-10 sheets per package Replaceable custom-fitted screen protectors shield your display screen from fingerprints, scratches and dust, while maintaining comfortable input.

	Stylus Proper tool to operate the Tablet's touch display. Available in kits only; 3 pieces per kit.

	Protective Rubber Bumpers Custom designed and fitted to protect your DT310 Tablet in mobile operation.

	Automobile Power Adapter - 12V Use with power outlets in vehicles to facilitate device usage and/or battery recharge.

	Mini-USB Keyboard w/ Hub 88-key USB keyboard in compact form factor can be used directly with the device or connected through the Cradle. USA Only.

	AC/DC Power Adapter (12V, 3.5A, 42W) with Power Cord Facilitates battery recharge or Tablet operation through direct connection to the Tablet or via the Power Jack in the device Cradle. (Choice of North America, UK or EU power cord)

	Tablet Carrying Case with Compact USB Keyboard Kit Professionally designed and custom fitted for protection, handling, and usage of the Tablet with attached compact USB keyboard.

	Vehicle Mount Cradle -UE for DT310 This vehicle mount cradle offers Tablet storage, security, and connectivity to power and USB accessories (2USB and 1 Ethernet Ports).

	Keyboard and Keyboard Tray for Vehicle Mount Cradle The USB keyboard and matching tray are perfect complement to the Vehicle Mount Cradle with easy-to-attach bracket, and protective keyboard holder. USA Only.

	USB 2.0 1.8” Mobile Disk Box This slim external storage disk has large storage support and high-speed data transfer. Connects with cable to standard USB port on any iTechLCD device and supports Windows® XP.

	External USB Drive Adapter Connects a compatible storage drive (e.g., the optional 32GB SSD) to the iTechLCD tablet through the USB port.

	32GB Solid State Drive (SSD) Provides additional storage for the iTechLCD tablets, and can be embedded within the tablets, or used with the external USB drive adapter.

Display: 10.4” TFT LCD with Resistive Touch; Outdoor-Viewable option
Processor AMD Geode™ LX 800
Display Resolution 1024 x 768
Memory (flash) 64MB – 8GB
Memory (RAM) 256MB, 512MB, or 1GB
Operating Systems Windows CE; Windows XP Embedded; Windows XP Tablet PC Edition
Storage Internal flash module or 60GB HDD ; 32GB Solid State Drive (SSD)
Enclosure Magnesium-aluminum alloy
Stylus Yes , non-electronic tip
Protective Bumpers Rubber with optional handstrap, offers handling protection
Network Interface (including WLAN) PCMCIA or mini-PCI; USB; Bluetooth Built-in
Wireless Interface Integrated 802.11; Bluetooth
Control Buttons Seven (7) Front buttons; Six (6) programmable; One Power (left edge); Internal battery control switch
Input/Output Ports 12V DC-in Jack; Microphone-In; Headset Jack; USB 2.0; VGA (optional)
Network Interface Mini-PCI; RJ45 Ethernet; USB
AC/DC adapter Input: 100–240VAC
Output: 12VDC, 3.5A
Power Cords North America, EU, UK
Battery Packs Internal (14W) Optional: External (28W, 0.5lb)
Dimensions 8.3" x 10.3" x 0.8" (H x W x D)
Base Weight 2.05 lbs (0.93 kg)
Regulatory FCC Class B, CE, UL, RoHS compliant
Operating Temperature 0° – 40°C
Humidity 0% – 90% non-condensing

Major Options

Magnetic Stripe Card Reader

2 Mega-pixels Camera

Optional 2D barcode scanner

Data Sheet
