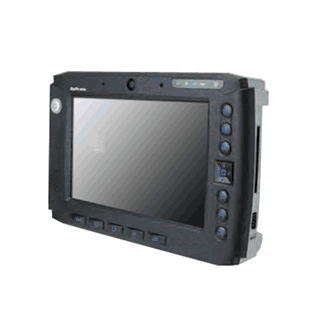

8.0" TFT-LCD 600 cd/m² WVGA In Vehicle PC with Intel Atom Z510 1.1GHz CPU, 1GB SDRAM, 802.11b/g/n Wireless, Bluetooth, HSUPA, OBD-II, Touch screen, 0.3-megapixel Camera, XPE OS, 4GB CF, RoHS (Model: IVDW800Z)

Display	LCD Size	8" TFT-LCD (Sunlight readable)
	Brightness (cd/m²)	600 cd/m² High Brightness
	Max Resolution	800 x 480 pixels WVGA
	Viewing Angle	60/60/50/50 Deg.
	Touch Screen	5-wire resistive type touch
System	CPU	Intel® Atom Z510 1.1 GHz
	Chipset	Intel® US15WP
	Operating System	Microsoft® Windows® XP Embedded
	Memory	On-board 1 GB DDR2 533 MHz
	Storage	4 GB CompactFlash® SD Card Slot
Communication	Wireless LAN	Wi-Fi 802.11b/g/n
	Bluetooth	Bluetooth V2.0+ EDR (Class 1)
	Modem	WCDMA/HSUPA
	GPS	GPS
Multimedia	Audio	1 x Line-in 1 x Line-out 1 x 3 W Speaker
Multimedia	Camera	0.3-megapixel CMOS Camera
LED Indicators & Buttons	Indicators	Wi-Fi/Bluetooth/HDD/3.75G/DVB-T/Power Status LED
LED Indicators & Buttons	Hot Key & Buttons	F1~F6 Function Key, Direction Key, Power Button
I/O Interface	USB	2 x USB 2.0
	Serial	1 x DB-9 OBD-II 1 x DB-9 RS-232/422/485 (Software electable w/ 5V DC)
	LAN	1 x 10/100/1000 Mbps GbE RJ-45
Power	Cigarette Lighter Power	Cigarette Lighter Power Cable DC 9~30V
Power	ACC Power	Manual power mode and ignition detection supported ACC power on/off mode with software configurable delay time
Environment	Operating Temperature	-20?C ~ +60?C
	Storage Temperature	-30?C ~ +70?C
	Humidity	5%~95%, non-condensing
	Drop Survival	1 M
	Environmental Protection	IP54 compliant front panel (Water, dust and splash resistant)
	Certification	CE/FCC/e-Mark/ISO7637
Physical Characteristics	Dimensions (LxWxH) (mm)	261 x 162 x 44
Physical Characteristics	Net Weight	1.7kg

Optional Accessories

Item	Description
Power Adapter	Power Adapter, PFC; Vin:90~264VAC; 60W; Vout: 12VDC; Din 4Pin/lock; CCL; RoHS
Bracket	100 x 100 VESA mount kit
Bracket	ram-mount 100 x 100 VESA mount kit
