ATX Aluminum chassis, 3* 21.5" TFT LCD 1920x1080 triple LCDs, 3*DVI Connectors, 6x 3.5", 1 slim CD, 3x 5.25" open drive bays, 700W power supply, K/B & Mouse, 7 slots (Model: BPCW32150BB)

ATX Aluminum chassis, 3* 21.5" TFT LCD 1920x1080 triple LCDs, 3*DVI Connectors, 6x 3.5", 1 slim CD, 3x 5.25" open drive bays, 700W power supply, K/B & Mouse, 7 slots (Model: BPCW32150BB)

ATX Aluminum chassis, 3* 21.5" TFT LCD 1920x1080 triple LCDs, 3*DVI Connectors, 6x 3.5", 1 slim CD, 3x 5.25" open drive bays, 700W power supply, K/B & Mouse, 7 slots (Model: BPCW32150BB)

BPCW32150BB
  • Overview
  • Download

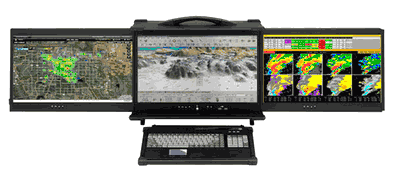

The BPCW32150BB supports standard ATX form factor motherboard as well as Extended ATX motherboard (EATX on 3.5" drive configuration only).  This ensure that the chassis can always meet the need of your add-on cards configuration as well as processors choice.  Whether it is ISA, PCI, PCI-X, PCI-E or combination of all of the above; the chassis can be fitted with 7 full height card slots.  The chassis comes with 3 foldable 21.5" 16:9 widescreen LED backlight LCD panel with 1920x1080 Full HD resolution.  The combined screen provide an astounding 5670x3240 pixels of working environment.  The display can driven by the latest single graphic card solution providing array of display orientation and features.


Features

  • Triple 21.5" Full HD Flat Panel Display with 1920x1080 Resolution
  • Total 5760x3240 pixels of working space
  • Custom Built and Expandable Portable Enclosure Platform
  • Aluminum Alloy Construction
  • Supports 7 Slots ATX Form Factor and EATX Form Factor*
  • High output power supply support
  • Integrated Keyboard and Pointing Device
  • Available 5.25" Drive Bay Configuration
  • Available 3.5" Drive Bay Configuration
  • Integrated Slim Optical Drive Bay
  • Integrated Speakers
  • Touch screen option available upon request



Specifications

Chassis Construction
Aluminum alloy chassis construction with anodized surface.
Integrated flat panel display and fold-out keyboard.
Rubber corner bumpers.
Tilt-up feet under chassis.
Built-in speakers.
Padded carrying case with wheels.
7 Expansion Slots.
Array of 5.25" Drive Bay and 3.5" Drive Bay.
104 Keyboard and Touchpad.

Integrated Display
3* 21.5" TFT LCD, 1920 x 1080 Full High Definition resolution,
Color: 16.7M
Contrast: 1000:1

Keyboard
Detachable keyboard with Integrated touchpad device.

Cooling
12 cm fans.

Dimensions
21.28" (W) x 14.62" (H) x 11.81" (D).

Weight
46.2 lbs.

Electrical and Power

Input
AC 100 ~ 240 V @ 50 ~ 60 Hz, full range

Output
1000 watt standard power supply

Environmental and Safety
Temperature
Operating 0~50 C; non-operating -20~60 C

Humidity
Operating 10~90% @ 40C, non-condensing; non-operating 10~95% @ 40C, non-condensing
