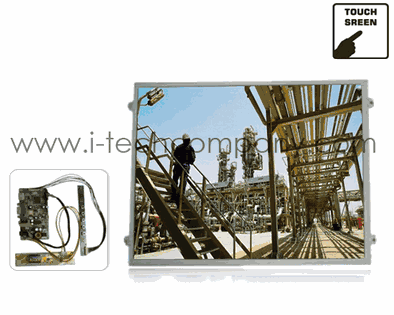

15'' 4:3 LED Open frame loose kit module, LCD panel, Inverter, OSD, LVDS, AToD board, DC adapter High Brightness,VGA Input w/ SAW Touch and USB Controller (Model: TSK1500HB-SW)

15'' 4:3 LED Open frame loose kit module, LCD panel, Inverter, OSD, LVDS, AToD board, DC adapter High Brightness,VGA Input w/ SAW Touch and USB Controller (Model: TSK1500HB-SW)

15'' 4:3 LED Open frame loose kit module, LCD panel, Inverter, OSD, LVDS, AToD board, DC adapter High Brightness,VGA Input w/ SAW Touch and USB Controller (Model: TSK1500HB-SW)

TSK1500HB-SW
  • Overview
  • Download

Features:

  • VGA Input
  • Optional RCA Composite Video + Speaker / Optional HDMI Input
  • Optional 5-Wire Resistive / Capacitive / SAW Touch supports all Windows / Linux OS
  • 4:3 Screen High LED Back-Light 1000nits


Specifications:

Display size 15" diagonal
Active area 304.1 (H) × 228.1(V)mm
Pixel format 1024 (H) × 768 (V) pixel
(1 pixel=R+G+B dots)
Aspect ratio 4:3
Pixel pitch 0.297 (H) × 0.297 (V)mm
Pixel configuration R,G,B vertical stripe
Display mode Normally white
Unit outline dimensions *1 326.0(W) ×252.0(H) ×Max.11.0 (D)mm
Mass MAX. 1000
Surface treatment Anti-glare and hard-coating 2H
