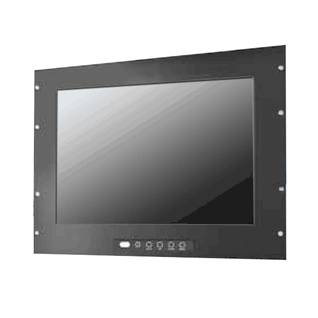

Military rack mount, 8U Rackmount LCD (3mm Metal Front Bezel), 17.3" LCD monitor, 1920 x 1080, LED, 200 nits VGA + DVI Input (Model: EMRW1730)

Military rack mount, 8U Rackmount LCD (3mm Metal Front Bezel), 17.3" LCD monitor, 1920 x 1080, LED, 200 nits VGA + DVI Input, Front OSD and Handle, VESA Mounting & Built in Power Supply w/o-stand & speaker with EMI Mesh Coating, Military Grade Power Connector (MIL-DTL-38999/1), MIL-461E, MIL-STD-810F, Operation Temp: -20°C to + 55°C (MODEL: EMRW1730)

Modular mechanism design provides flexible product configuration and easy maintenance.
Optional to built-in touch screen for interactive application.
Available with auto-brightness sensor offers application in day and night.
VGA connector with optional AV,SV,AV-Looping
Complete custom design/solution for OEM customers
Optional: MIL connector / M12 connector / Plastic IP66 water resistance connector

Panel	Cell Type / Glass Surface	TFT LCD / Black Anti-Glare, low reflection coating
	Aspect Ratio / Size	Wide / 17.3" viewable diagonal area
	Active Area / Pixel Pitch	383.5(H) x 216.3(V) mm / 0.27(H) x 0.27(V) mm
	Native Resolution / Colors	1920(H) x 1080(V) / 16.7M
	Brightness / Contrast	200 cd/m2 (typ) / 1000 : 1
	Response Time	< 14ms (G-to-G)
	Viewing Angle (typical)	H.178o (- 89o ~ + 89o) , V. 178o (- 89o ~ + 89o)
	Light Source	LED backlight, Long life, 35,000 hrs (typ)
Input Sources	PC System	Signal	Analog RGB (0.7/1.0 Vp-p, 75 ohms)
		Sync	Separate Sync, Composite Sync, Sync On Green
		Frequency	Fh : 30 - 82Khz , Fv : 50 -75Hz
	Audio System	Without Speaker
Input Terminals	1 x VGA, 1 x DVI, 1 x PC Audio (Stereo Headphone Jack) , 1 x DC Power Plug
Convenient Features	Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B)
	OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
Power	Internal power supply with universal / Auto-Sensing, AC90 to 260V, 50/60 Hz
Power Consumption	Operation / Power Saving	40 watt , < 1 watt (Support DPMS)
Operating Condition	Temperature / Humidity	-20°C ~ 55°C (-4°F ~ 131°F) , 10% ~ 90% (no condensation)
Storage Condition	Temperature / Humidity	- 20°C ~ 60°C (- 4oF ~ 140°F) , 10% ~ 90% (no condensation)
Certification		FCC , CE
Dimensions	Physical	Please refer to Drawing
	Carton	W x H x D = TBD
Weight	N.W. / G.W.	12 Kgs / 13.5 Kgs
Container Loaded	20ft / 40ft / 40ft HQ	TBD (Sets , By pallet)
