DB-15 16-port KVM, 2 User (1 x local; 1 x remote)

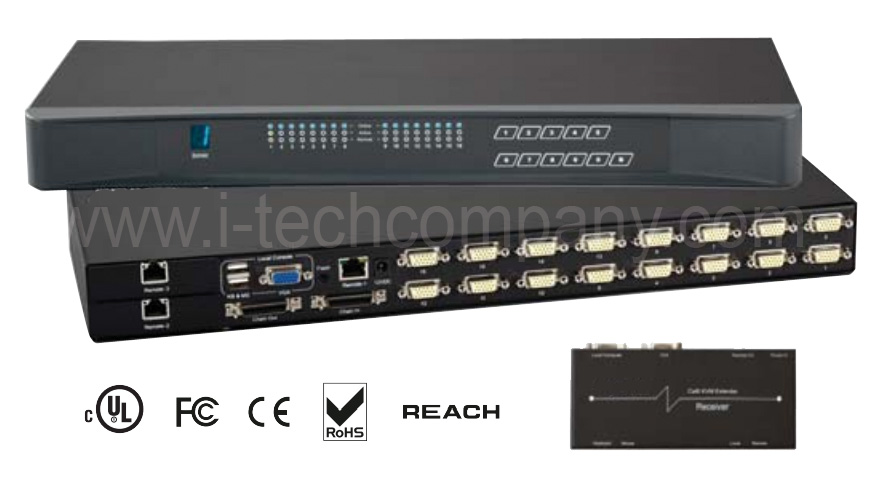

Matrix Multi-User DB-15 16-port KVM with NE-6 x 16 (2 consoles (1 x local; 1 x remote)) (Model: M0116)

Matrix Multi-User DB-15 16-port KVM with NE-6 x 16 (2 consoles (1 x local; 1 x remote)) (Model: M0116)

M0116
  • Overview
  • Download

Matrix DB-15 KVM Benefits

  • Efficient system management with simultaneous multi-user access
  • Support resolution up to 1920 x 1080
  • SUN 1152 x 900 resolution compatible
  • Multi-platform servers shared by different consoles in cascade connection
  • Mix PS/2, USB & SUN with Multi-Platform switch capability Extended Cat6 cord remote access up to 150 meters
  • Provide a diversity of consoles to access servers independently & simultaneously

Switch Features & Options

  • Greater distances between your switch and servers allow enhanced data center rack layouts
  • Multi lingual on screen display menu
  • Advanced user profiles and configurable OSD hot key combinations






Ordering Information

Console Local Remote 8-port 16-port
1 1 0 M018 M0116
1 2 0 M028 M0216
1 3 0 M038 M0316



KVM Specification

KVM Port
Number of ports: 8 or 16
Connector: DB-15 combo connector
Connectivity: Combo 4-in-1 KVM cable up to 6, 10 & 15 feet
Local Console
Monitor port: 1 x DB-15 VGA ( Up to 1920 x 1080 / 1920 x 1200 )
Keyboard & mouse port: 2 x USB type connector for keyboard & mouse
Cat6 Remote Console
Number of remote port: 1 for M018 / M0116
2 for M028 / M0216
3 for M038 / M0316
Monitor port: DB15-pin VGA, up to 1600 x 1200
Keyboard & mouse port: 2 x USB type connector for keyboard & mouse
Remote I/O: RJ45 via Cat5 / Cat5e / Cat6 cable up to 500 feet
Expansion: Up to 256 servers by 8-level cascade
Compatibility
Multi-platform: Mix PCs, SUN and Mac G3 / G4 Mac / iMac
Support: Windows 7 / Vista / 2003 / XP, Linux, Unix

Power
Input: AC power adapter
Consumption: Max. 48 Watt, Standby 5 Watt
Regulatory :
Safety: cUL, FCC & CE certified
Environment: RoHS2 & REACH compliant
Environmental
Operating: 0 to 50°C
Storage: -5 to 60°C
Relative humidity: 90%, non-condensing
Shock: 50G peak acceleration (11ms, half-sine wave)
Vibration: 58-100Hz / 0.98G (11ms / cycle)
Product Information
Dimension (W x D x H): 443 x 171 x 44 mm / 17.4 x 6.7 x 1.73 inch
Net weight: 3 kg / 6.5 lb
Packing Information
Dimension (W x D x H): 500 x400 x90 mm / 19.7 x 15.7x3.5 inch
Gross weight: 5 kg / 11 lb



KVM port connection




NE-6 / NE-10 / NE-15
■ 6 / 10 / 15 ft Combo KVM cable
■ Support PS/2 or USB server




Local console & remote console connection




KVM Cascade

■ Cascade up to 8 levels, 240 servers
■ Cascading multiple KVM with CMC-8 cascade cable
