Cat6 32-port KVM (4 consoles (1 x local; 2 x remote; 1 x IP))

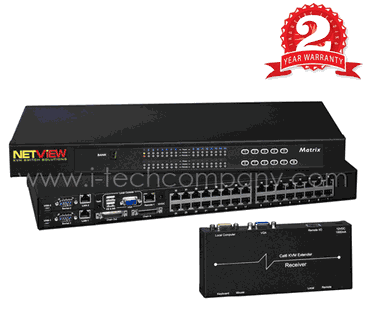

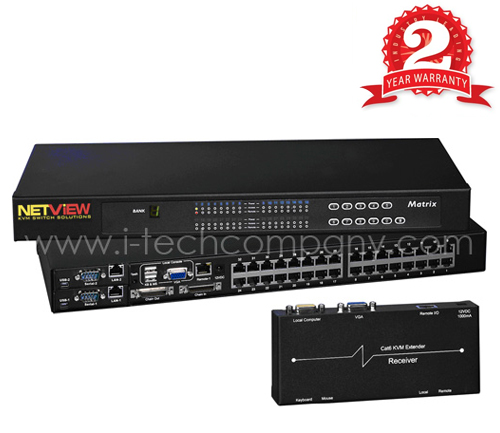

Matrix IP Multi-User Cat6 32-port KVM with IF-DUSB x 16 (4 consoles (1 x local; 2 x remote; 1 x IP)) (Model: MC1232)

Matrix IP Multi-User Cat6 32-port KVM with IF-DUSB x 16 (4 consoles (1 x local; 2 x remote; 1 x IP)) (Model: MC1232)

MC1232
  • Overview
  • Download
MC Series Partno. Diagram :
Switch Features & Options:
  • Provide a diversity of consoles to access servers independently and simultaneously
  • Use of the RJ45 Cat6 interface allows for a higher number of ports in smaller density
  • Greater distances between your switch and servers allow enhanced data centre rack layouts
  • Multi lingual on screen display menu
  • Advanced user profiles and configurable OSD hot key combinations DC


Accesories:
IF_DDVI IF-DUSB IF_DPS2 MC300

NU-3,NU-6,
NU-10, NU-15, NU-33

DVI-USB dongle VGA-USB dongle VGA-PS/2 dongle 3ft Matrix KVM cascade cable Cat6 cable – 3, 6, 10, 15 & 33 ft


Technical Specifications:
KVM Port: 32 / 16 x RJ45 connector
Number of ports : 16or32
KVM Dongle : DVI-D / VGA connector dongle up to 40 meters (132 feet) Cat6 / Cat5 cable
Simultaneous Console Access:
Local

1 x DB-15 VGA (up to 1600 x 1200)

2 x USB for KB & MS
Remote ( 1 or 2) 1 x RJ45, up to 300 meters (1000 feet) Cat6 / Cat5 cable
IP Access ( 1 or 2 ) 1 x RJ45 Ethernet, 1 x DB-9 serial & 1 x USB port
IP Security SSL v3, RSA, AES, CSR, http & https internet access 15-user login ( 1 x active user )
Remote Receiver ( 1 or 2) :
1 x DB-15 VGA (up to 1600 x 1200), 2 x USB for KB & MS 1 x KVM port for connecting an extra PC
Expansion : Support mixed DB-15 or RJ45 Matrix KVM, up to 256 servers
Compatibility : Mix PCs, SUNs, MACs, IBMs, HPs, DELLs server Windows Vista / 2003 / XP / 2000, Linux, Netware, Unix
Power : 100~240VAC, 50 / 60Hz 0.5A via AC / DC cord
Regulatory Approval : FCC, CE
Environmental
Operating / Storage 0 to 50°C / -5 to 60°C
Relative humidity 90%, non-condensing
Shock 50G peak acceleration ( 11 ms, half-sine wave )
Vibration 58~100Hz / 0.98G ( 11 ms/ cycle)

Dimensions:
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)

Net
Weight
Gross
Weight
MC1116 / 1216 /  2116
MC1132 / 1232 / 2132
448 x 180 x 44 mm  17.6 x 7.1 x 1.73 inch
510 x 400 x 77 mm
20.1 x 15.7 x 3 inch
4kgs / 9lbs
7kgs / 15lbs

Connect your Matrix Multi-User Cat6 IP KVM:

MC1116
MC1132
MC1216
MC1232
MC2116
MC2132
