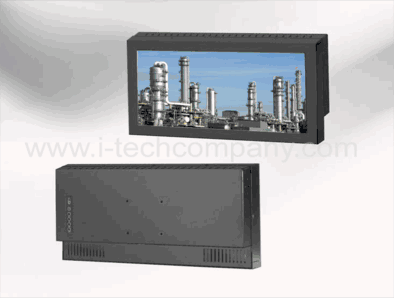

Industrial Chassis/Wall Mount Metal Housing, Stretched/Super Wide 15.9" LCD monitor, Resolutions 1280 X 645, 325 nits VGA Input, Side OSD (Model: ECHS1590)

Industrial Chassis/Wall Mount Metal Housing, Stretched/Super Wide 15.9" LCD monitor, Resolutions 1280 X 645, 325 nits VGA Input, Side OSD (Model: ECHS1590)

Industrial Chassis/Wall Mount Metal Housing, Stretched/Super Wide 15.9" LCD monitor, Resolutions 1280 X 645, 325 nits VGA Input, Side OSD (Model: ECHS1590)

Inquiry/Quote Request
ECHS1590
  • Overview
  • Download

Features:
  • Modular mechanism design provides flexible product configuration and easy maintenance.
  • Optional to built-in PC eliminates external box.
  • Optional with auto-brightness sensor offers application in day and night.

Specifications:


Panel Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low reflection coating
Size 15.9" viewable diagonal area
Active Area / Pixel Pitch 360.96(H) x 181.89(V) mm / 0.282(H) x 0.282(V) mm

Native Resolution / Colors

 1280(H) x 645(V) / 16 Million
Brightness / Contrast 325 cd/m2 (typ) / 600 :1
Response Time ^ 16 ms
Viewing Angle (typical) H. 160° (- 80° - + 80°) , V. 160°(- 80° - + 80°)
Light Source CCFL , Long life, 50,000 hrs (typ)
Input Sources PC System Signal Analog RGB (0.7/1.0 Vp.p, 75 ohms)
Sync Separate Sync, Composite Sync, Sync On Green
Frequency Fh: 30 - 82Khz, Fv: 50 -75Hz
Audio System 2W speaker x 2
Input Terminals 1 x VGA (15 Pin Female D-Sub), 1 x PC Audio (Stereo Headphone Jack), 1 x DC Power Plug
Convenient Features Auto Calibration , Back Light Adjustment, Plug&Play (VESA DDC/CI, DDC 2B)
OSD Multi-Languages , Wall Mount Ready (VESA 75 x 75 mm)
Power External AC-to-12VDC power adapter with universal / Auto-Sensing, AC 90 to 260V, 50 / 60 Hz
Power Consumption Operation / Power Saving 15 watt, < 2 watt (Support DPMS)
Operating Condition Temperature / Humidity 0°C - 50°C (32°F - 122°F), 10% - 90% (no condensation)
Storage Condition Temperature / Humidity - 20°C - 60°C (- 4°F - 140°F), 10% - 90% (no condensation)
Certification   FCC,CE
Dimensions Physical With Base(W x H x D): TBD
Without Base(W x H x D): 405.7 x 228.9 x 66.0 (mm)
Carton Wx H x D =TBD
Weight N.W. / G.W. TBD

Options Video / TV Enhanced Panel Others
SV + AV Panel with LED backlight Digital Signage(Stand alone)
SV + AV + AV_Looping High brightness panel Networking Digital Signage
SV + AV + TV Wide Temperature Motion Sensor
  Sunlight Readable Light Sensor
    Auto-Dimming
