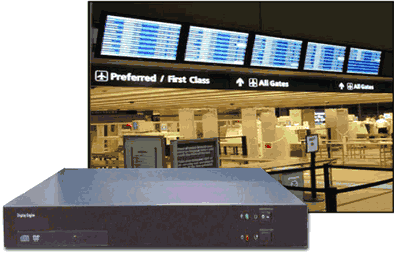

Digital LCD/Plasma Signage High Reliability Compact Silent (Celeron M, 1.5 G) Computer Engine Box for Public Information Display Model:(WBX-9100-CM-D)

Digital LCD/Plasma Signage High Reliability Compact Silent (Celeron M, 1.5 G) Computer Engine Box for Public Information Display Model:(WBX-9100-CM-D)

Digital LCD/Plasma Signage High Reliability Compact Silent (Celeron M, 1.5 G) Computer Engine Box for Public Information Display Model:(WBX-9100-CM-D)

WBX-9100-CM-D
  • Overview
  • Download

Feature :
• Powerful Digital Signage Control Box
• Compact Design (430 x 300 x 44.5 mm)
• Intel® 915GM GMA 900 solution
• PCI Slot for expansion
• Optional CD/DVD-ROM

• Slim and rugged mechanism design
• Built in 16: 9
• Long Life Time Guarantee
• Specific Thermal Solution
• High Reliability
• Intelligent Installation
• Support Remote Device Management
• Portrait
• XPe Solution
• 7/24/365 non-stop operations applications
See more deatail

Base Configuration for engine box :
• Chipset : Intel 915GM
• CPU : Celeron M 1.5G
• RAM : 512MB, DDRII
• HDD: 80GB
• I/O : PCI

Specification
System
CPU
Intel® Celeron ® M 1.5GHz
FSB
400MHz / 533MHz
Chipset
Intel® 915GM chipset + ICH6M
BIOS
Award BIOS, ACPI supported
Cache
Built-in CPU L1 & L2 cache
VGA
915GM Graphics Media Accelerator 900
LAN
Primary: ICH6M integrated 10/100 BaseT Ethernet
Secondary: Marvell 88E8053 PCI Express Gigabit Ethernet(option)
Memory One DDRII sockets supports up to 1GB DDR SDRAM PC400/533 DDR SDRAM
I/O
ICH6M, Winbond W83627HF chipset

IDE

Built in ICH6M; One enhanced IDE channel supports 2 IDE
devices; supports UDMA33/66/100
Serial ATA
Supports 2 ports
Audio ICH6M integrated audio with AC97 codec; Onboard NS LM4950 amplifier
WDT Generates system reset; 256 levels
Storage
HDD
Internal drive bay for 3/5” IDE HDD x 1
CD-ROM Optional drive bay for slim type CD/DVD-ROM x 1
I/O
PCI Slot 32-bit PCI slot x1, Mini-PCI slot x 1
External I/O
VGA DB-15 x 1
Audio RCA Jack 2x1 for Audio (Line-Out & Mic)
USB USB 2.0 x 4
COM DB-9 x 1
KB/Mouse PS/2 Connector x 2 for keyboard/mouse
LAN J45 x1 for 10/100 BaseT Ethernet / x1 for Gigabit Ethernet (Option)
Others IEEE1394 (Option) & SPDIF/OUT
DVI VIA daughter B/O x1(option)
Mechanical & Environmental
Power Input
AC 90~264V / 47~63Hz
Operating Temperature
0~40 °C
Storage Temperature
-20~80 °C
Relative Humidity 10%~90%, non-condensing
Dimensions 430 x 300 x 44.5 mm (5.0 kg)

See Features:

Slim and rugged mechanical design
Ultra-Slim design fixed behind the display safely and nicely.
•  Easy-mounting
•  Free-Cabling
•  Ultra Compact (1U/44mm height)
•  Reliability (Industrial-grade M/B)

Portrait
This product with built-in software drivers to support all the 16 by 9 resolutions in portrait mode.
You have worry-free and plug and play experience with our products.

Long Life Time Guarantee
It is industrial computer design.
The configurations and all the parts can be supported in next 3-5 years without any change.



Specific Thermal Solution
To support continuous operation, We have proprietary designof thermal solutions.

•Special heat pipe thermal module supports up to P4 3.06GHz
•The most silent model in its kind (<40dB with P4 3.06GHz / 100% CPU loading)

High Reliability
This Engine Box will not shut-down or hang-up and show a black screen in a public place.
• Built in Industrial-grade Intel845 Embedded board
• Supports WDT function
• 7/24 running duration
• Automatically reboot when computer shut down

WDT & PXE
WDT
-Automatically reboot when computer shut down.
-Check computer shut down or not in designated time period.
PXE
-Update / Upgrade software without change computer.
