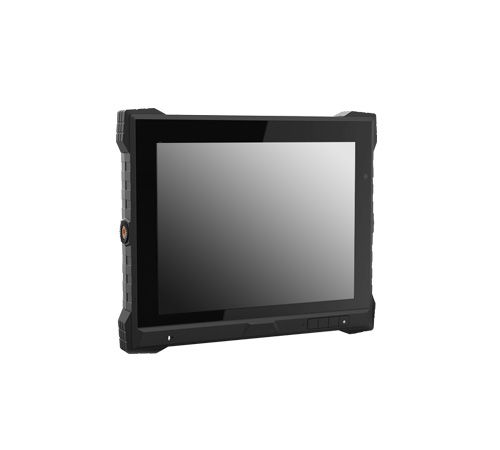

9.7" IPS Touch Display Rugged Mobile Data Terminal w/ Freescale i.MX6 quad-core 1 GHz (Model: LPC097-AO-TR)

IP64-rated rugged build, a Freescale i.MX6 quad-core 1 GHz platform, a 9.7-inch 1024×768 IPS touch display, a 7.4 V 5000 mAh battery, multiple I/O options including RS232/485/422, GPIO, CAN and LAN, sensors and OTG/TF/USB support, PoE with gigabit Ethernet, and connectivity options spanning 2G/3G/4G, Wi-Fi, Bluetooth, GPS, and a camera.

IP64-rated rugged build, a Freescale i.MX6 quad-core 1 GHz platform, a 9.7-inch 1024×768 IPS touch display, a 7.4 V 5000 mAh battery, multiple I/O options including RS232/485/422, GPIO, CAN and LAN, sensors and OTG/TF/USB support, PoE with gigabit Ethernet, and connectivity options spanning 2G/3G/4G, Wi-Fi, Bluetooth, GPS, and a camera.

Inquiry/Quote Request
LPC097-AO-TR
  • Overview
  • Specifications
  • Download
The LPC097-AO-TR is a highly rugged mobile data terminal optimized for demanding industrial and field environments. Featuring a 9-inch IPS capacitive touchscreen, this device delivers excellent viewing angles and clarity, even under harsh conditions. Built with durability in mind, its industrial-grade chassis withstands shock, vibration, and dust, making it ideal for applications in fleet management, construction, logistics, and outdoor automation. Equipped with flexible I/O interfaces such as RS-232, CAN bus, LAN, and power over a wide voltage range, the LPC097-AO-TR supports seamless integration into vehicle systems or remote control stations. Its robust design is complemented by reliable power options and mounting flexibility for both fixed and mobile installations.


Features:
  • Rugged industrial design with IP64 rating
  • Powerful Freescale iMX.6 Quad core 1GHz solution
  • 9.7" 1024x768 IPS screen capacitive touch
  • Built-in 7.4V 5000mAh battery
  • Rich extensions: RS232, RS485, RS422, Gpio, CAN bus, LAN
  • Gravity sensor, OTG, TF & USB
  • PoE(Power over Ethernet) Gbite Ethernet
  • 2G/3G/4G/Wi-Fi/Bluetooth/GPS/camera
SYSTEM CONFIGURATION CPU Freescale iMX.6 Quad core 1.0GHz
4xARM Cortex-A9 up to 1.2 GHz per core
ROM: 8GB Flash, RAM: DDR3-1066 (533MHz) IGBytes, up to 2GBytes
GPU 3D 200Mtri/s 1000Mpxl/s, OpenGL ES 3.0 & Haiti, CL EP
OS: Android 5.1.1 / Linux Debian 7.0 / WinCE 7.0
MEDIA Audio: MP3, MP4, WMA, WAV...
Video Decode 1080p60 H.264
Video Encode 1080p30 H.264 BP/ Dual 720p
INTERFACES HDMI output
Micro SD card slot
USB Device 2.0, USB host 2.0
Earphone jack
Microphone jack (optional)
RS232x4 / RS232x3, RS485x1 / RS232x2, RS422x1, RS485x1
(optional RS485/RS422 interface)
LAN Ethernet
Gpio inputx4, Gpio outputx6
Optional:3G\Wi-Fi & Bluetooth\Camera\GPS\ACC\PoE (Power over Ethernet)
Touch Panel Capacitive
Display 9.7" IPS
Screen Resolution 1024x768
Brightness 350cd/m2
Contrast 900:1
Viewing Angle 1787 178° (H/V)
Power supply DC 9-36V
Battery Built-in 5000mAh (optional)
Power Consumption (Normal mode) <9W
Power Consumption (Charging mode) <24W
Working Temperature -20°C-60°C
Storage Temperature -30°C-70°C
Dimension (LWD) 252x211x37mm
Weight 1340g
