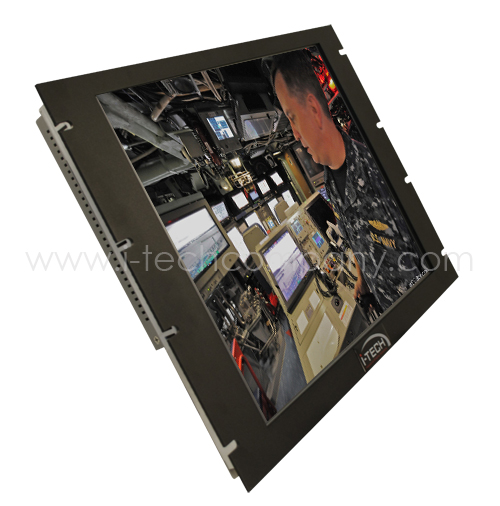

8U Rackmount 19" LCD Monitor with Anti-glare Tempered Safety Glass window (Model: HRM819TG)

8U Rackmount 19" LCD Monitor with Anti-glare Tempered Safety Glass window

8U Rackmount 19" LCD Monitor with Anti-glare Tempered Safety Glass window

HRM819TG
  • Overview
  • Download

Superior Picture Quality

  • Bright 300 NIT display, 1000:1 contrast ratio
  • High 1280 x 1024 Resolution

Rugged Rack Mount Design

  • High temperature range, up to 50°C (122°F)
  • High shock and vibration specs
  • Tempered Glass or Touchscreen Window

High Reliability

  • Field MTBFs greater than 250,000 hours
  • 50,000 hour backlight brightness half-life
  • 3-year warranty!

Small Size

  • Small footprint (only 8U rack space)
  • Only 57.9 mm (2.28") deep

Industrial Certifications

  • UL 60950 3rd Edition / cUL, UL 508A, UL 50E, CE
  • UL Rated for Class I, Division 2 (optional)

Description

The HRM819 Industrial LCD Monitor has been designed to provide the industrial user with superior picture quality and state-of-the-art features housed in an EIA 19" standard rackmount enclosure.

With a low profile of only 8U and a high-resolution 19" display, the HRM819 offers the industrial user the optimal trade-off between space, screen size and cost.

Features

  • 19" active-matrix LCD display
  • UL Rated for Class I, Division 2 Hazardous Locations (optional)
  • 1280 x 1024 resolution
  • Long-life backlights
  • High brightness, high contrast
  • Black powder coated steel faceplate
  • Tempered Safety Glass window option
  • Analog Resistive Touchscreen option
  • Only 57.9 mm (2.28") deep
  • EIA 19" rack mount capable

Specifications

Display

  • Thin-film Transistor (TFT) Active Matrix Liquid Crystal
  • Size - 19.0" diagonal
  • Image Size (W x H)- 376 mm x 301 mm (14.8" x 11.9")
  • Native Resolution - SXGA (1280 x 1024, 5:4 aspect ratio)
  • Plug and Play - DDC1/2B compatible
  • Minimum Resolution - VGA (640 x 480)
  • Pixel Pitch - 0.294 mm x 0.294 mm
  • Number of Colors - 16.8 million (24 bit)
  • Viewing Angle (Hori/Vert), typical - 170° / 160°
  • Brightness - 300 nits (cd/m2) min.
  • Contrast Ratio (typical) - 1000:1 (static); 2000:1 (dynamic)
  • Backlight - Four CCFTs (Cold Cathode Fluorescent Tube); 50,000 hour brightness half-life; replaceable
  • Screen Protector (when not shipped with touchscreen) - Tempered glass to ANSI-Z97.1 SPEC; AR coated on both sides; 98% Transmission of light; 99% Reduction of glare; 53% UV blocking; 30% NIR Blocking

Video

  • Input Connectors
    • HD-15
    • DVI-D
    • Optional BNC input (using HD-15 to 5-wire BNC adapter); see "Input Signal Formats" for a list of compatible video signals
  • Input Signal Formats
    • RGB Analog video, 0.7/1.0 Vp-p, 75 Ohms; Compatible sync modes: Separate H/V sync, Combined sync, Sync on Green
    • DVI
    • NTSC/PAL composite input available (call for details)
  • Horizontal Scan - 30-82 kHz
  • Vertical Scan - 50-75 Hz
  • Supported Video Standards - 1280 x 1024 @ 60, 75 Hz; 1024 x 768 @ 60, 70, 72, 75 Hz; 800 x 600 @ 56, 60, 72, 75 Hz; 640 x 480 @ 60, 75 Hz; 720 x 400 @ 70 Hz
  • Response Rate (typical) - 5 ms

Electrical

  • Power Input - 120/240 VAC, 1.2/0.6 A, 60/50 Hz (auto switch)
  • Power Consumption (typical) - 34 W
  • Power Consumption (standby mode) - < 2 W

Enclosure

  • Type - Rack mount; Standard EIA 19" rack width; 8U height with 8 mounting holes
  • Enclosure Rating - NEMA/UL Type 1
  • Black Powder Coated Steel faceplate

Environmental

  • Temperature - 0° to 50°C (32° to 122°F)
  • Humidity - 20% to 90% non-condensing
  • Operating Shock - 15 g, 6 msec, half-sine
  • Operating Vibration (sine) - 1.0 g, swept sine 9-500 Hz
  • Transport Vibration (random) - 0.1g² / Hz, 10-200 Hz; 0.03g² / Hz, 200-2000 Hz
  • Altitude - Operating: up to 10,000 feet; Non-operating: up to 40,000 feet
  • Environmental Sulfur Gas Protection Option - includes glass-armored touchscreen, vapor-phase corrosion inhibitor, and extensive sealing; consult sales for details. More on Sulfur Gas Protection.

Functional

  • Panel Controls (rear access) - Power, Brightness, Contrast, Auto image adjust
  • OSD (On Screen Display) Controls - Auto Image Adjust, Brightness, Contrast, Input Selection, Color Adjust, Information, Manual Image Adjust (H. position, V. position, fine tune, sharpness), Language, Resolution Notice, OSD Position, OSD Timeout, OSD Background, Memory Recall

Physical

  • Depth - 57.9 mm (2.28") behind bezel
  • Bezel - Carbon Steel, black powder coat
  • Front Bezel Outside Dimensions (W x H x D) - 482.6 mm x 354.3 mm x 3.175 mm (19.0" x 13.95" x 0.125")
  • Net Weight - 15 lbs.
  • Shipping Weight - 19 lbs.

Touchscreen Option

  • 5-wire resistive system
  • Emulates a mouse
  • RS-232 or USB interface to host computer (both connections are present on touchscreen monitors)

Compliances and Certifications

  • UL 60950 3rd Edition / cUL Recognized Component (File No. E212889)
  • UL 508A Listed (File No. E318630)
  • FCC Class A
  • CE
  • RoHS
  • WEEE (Registration No. WEE/DJ1859ZX for UK only)
  • IEC 60721-3
  • UL 50E (File No. E318630)
  • Rated for Hazardous Locations (optional) - UL Listed for Class I, Division 2 for Groups A, B, C, D; Temp Code T6 (File No. E328481) per ANSI/ISA 12.12.01-2007
