8.4" Wireless Tablet with Intel Atom Dual Core 1.86GHz processor, built-in 802.11 Wi-Fi, Bluetooth, capacitive touch (with anti-reflection outdoor viewable) display and one SD card slot. OS: WIN 7 Pro, Storage: 128GB, RAM: 4GB (Model: DVM840-W7-128-4)

Overview
Download

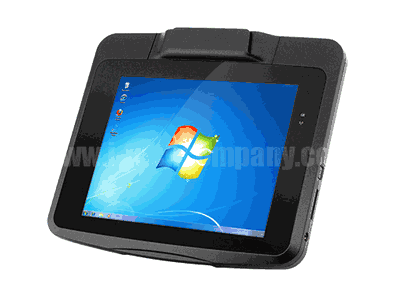

The DVM840 Mobile Rugged Tablet features the integration of a brilliant 8.4" capacitive touch display and a high performance yet energy-efficient Intel® Atom dual-core processor within a slim, light, and durable package. With options for a fully-integrated MSR, barcode scanner, and camera modules, this tablet offers seamless information capture for instant transmission on the sales floor, in the warehouse, in the classroom, and in the field.

Features:

8.4" anti-reflection outdoor viewable screen with capacitive touch
Support for Microsoft® Windows® Embedded Standard 7, Windows® 7 Professional or Linux operating system
Intel® Atom dual-core processor; high performance with low power consumption
Bluetooth and Wi-Fi connection
TPM (Trusted Platform Module) 1.2 support
Comprehensive remote device administration through server-based WebDT Device Manager software

Options

Magnetic Stripe Reader (MSR); triple track readers (ISO TK1, 2 & 3), high-performance decoding with ultra-compact design
5 megapixel camera (on back); with LED flash, auto focus, white balance, gain control and exposure control
2D barcode scanner; reads both 1D and 2D barcodes, extremely durable, integrated for reliable operation
RFID reader; complies with HF 13.56MHz, ISO standard 15693, 14443A(B) & 18000-3 mode-1
WWAN; Gobi 3G module for HSPA+/EVDO/WCDMA/EDGE/GPRS/GSM

Specifications

System
CPU	Intel® Atom Dual Core, 1.86GHz
RAM	4GB
Storage	32GB to 256GB
Operating System	Microsoft® Windows® Embedded Standard 7, Windows® 7 Professional, or Linux
Display	8.4” LED-backlight screen with capacitive touch; anti-reflection outdoor viewable
Display Resolution	800 x 600
TPM	TPM 1.2 support
Control Switch and Buttons	1 power button and 1 trigger button
Indicator	1 power/ battery status LED and 1 WLAN active LED
Microphone	Optional
Speaker	Built-in speaker
Network Interface
WLAN	Wi-Fi 802.11a/b/g/n
Bluetooth	Bluetooth 30 HS
I/O Ports
USB 2.0 Port	1
Microphone-in	1
Headphone-out	1
DC-in	1
SD Slot	1 full size SD card slot

Mechanical and Environmental
AC/DC Adapter	Input: 100 -240V AC; Output: 12V DC, 3.5A
Battery Pack	Internal 7.4V, 3760mAh/ Optional: External 7.4V, 3760mAh
Enclosure	ABS + PC plastics and magnesium-aluminum alloy
Stylus	Capacitive touch stylus
Protective Bumpers	Rubber grips with handstrap
Dimensions (H x W x D)	9.4 x 7.9 x 1.4 in/ 240 x 200.5 x 35 mm
Weight	2.43lbs/ 1.1kgs
Regulatory	FCC Class B, CE, RoHS compliant
Temperature	Operation: 0 °C - 40 °C; Storage: -20°C -60°C
Humidity	0% -90% non-condensing
Major Options
MSR
Reference Standard	- ANSI/ISO Standards 7810,7811-1/6, 7813 - JIS X6301, X6302 - AAMVA
Recording Method	Two-frequency coherent phase (F2F)
Decoding Method	ISO Track1 - IATA , Track2 - ABA and Track3 -THRIFT
Card Swiping Direction	Bi-directional
Card Swiping Speed	Card speed through the unit may vary from 3 ips to 100 ips (7 cm/s to 250 cm/s)
Life	Electronics: 125,000 hours; Head: 1,000,000 passes
BARCODE SCANNER (2D)
Scan Rate	2D mode: 56 images per second, auto adaptive; Linear (1D) emulation mode: 200 images per second, auto adaptive
Scan Angle	Horizontal: 38.9°; Vertical: 25.4°
Optical Resolution	752 (H) x 480 (V) pixels, 256 gray levels
Print Contrast	Down to 25%
Versions	Standard range and high density
RFID READER
Frequency	13.56MHz ±7KHz
Modulate Mode	FSK
Reading Range	ISO standard 15693, 14443A(B) & 18000-3 mode-1
CAMERA
Sensor	5 megapixel back camera with LED flash
Automatic Image Control	Automatic white balance, gain control, and exposure control
Focusing Type	Auto focus
Focus Distance	10cm ~ ∞
WWAN
Gobi 3G module for HSPA+/EVDO/WCDMA/EDGE/GPRS/GSM

Accessories:

External Battery Pack

Desktop Charging Cradle

External Battery Charger Kit with AC Adapter & Power Cord

Wall/Vehicle Mount Cradle

Internal Battery Pack

Protective Rubber Grips

6-Bay External Battery Charger

AC/DC Power Adapter with Power Cord

Automobile Power Adapter

Mini-USB Keyboard w/ Hub

Shoulder Strap for Tablets

Tablet Carrying Case with Compact USB Keyboard Kit

Plastic tablet handstrap
