8.4" 800x600, LED-450nits Media Player LCD Monitor w/ 12VDC-IN w/Adapter, 1xUSB, 1xLAN (Model: IS-08-R10)

8.4" 800x600, LED-450nits Media Player LCD Monitor w/ 12VDC-IN w/Adapter, 1xUSB, 1xLAN, Support Scrolling Text

8.4" 800x600, LED-450nits Media Player LCD Monitor w/ 12VDC-IN w/Adapter, 1xUSB, 1xLAN, Support Scrolling Text

Inquiry/Quote Request
IS-08-R10
  • Overview
  • Specifications
  • Download

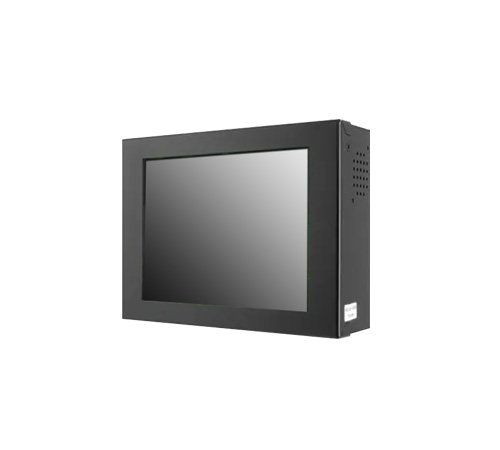

The 8.4-inch Media Player LCD Monitor IS-08-R10 is a compact standalone display designed for digital signage, information display, and multimedia applications. Featuring an 800x600 resolution, 450-nit LED backlight, and built-in media player, it supports video, image, and audio playback without requiring an external media player. With USB and LAN connectivity, 12VDC power input, scrolling text, and photo slideshow functions, the IS-08-R10 provides a flexible and convenient solution for continuous content display.


Features:
  • 8.4" LCD Display – 800×600 resolution, 450-nits LED backlight
  • Built-in Media Player – Supports loop playback and scrolling text
  • Video Support – 3GP, FLV, MOV, WebM, AVI, DIVX, MPEG-1/2/4; up to 1080P
  • Image & Audio Support – JPG, PNG, BMP, TIFF / MP3, WMA, WAV
  • Connectivity – 1×USB, 1×LAN
  • Power – 12VDC input with AC adapter
  • Photo Slide Show – Supports sliding photo playback
Cell Type TFT LCD
Glass Surface Black Anti-Glare, low reflection coating
Aspect Ratio Wide
Size 8.4" viewable diagonal area
Active Area 170.4(H) x 127.8(V) mm
Pixel Pitch 0.213(H) x 0.213(V) mm
Native Resolution 800 x 600
Colors 262 K
Brightness 450
Contrast 600 : 1
Response Time ≤ 30 ms
Viewing Angle (typical) H. 178°(- 89°~ + 89°) , V. 178°(- 89°~ + 89°)
Light Source LED backlight, Long life, 35,000 hrs (typ)

CERTIFICATION
FCC , CE
INPUT TERMINALS
1xUSB, 1xLAN
CONVENIENT FEATURES
Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B) , OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
POWER
12VDC-IN w/ Adapter
POWER CONSUMPTION
Operation / Power Saving 26.25 watt , < 1 watt (Support DPMS)
OPERATING CONDITION
Temperature / Humidity 0°C ~ 50°C (32°F ~ 122°F) , 10% ~ 90% (no condensation)
STORAGE CONDITION
Temperature / Humidity -20°C ~ 60°C (-4°F ~ 140°F) , 10% ~ 90% (no condensation)
DIMENSIONS
Physical Please refer to Drawing
Carton W x H x D = TBD
WEIGHT
N.W. / G.W. 8 Kgs/9 Kgs
CONTAINER LOADED
20ft / 40ft / 40ft HQ TBD (Sets , By pallet)
