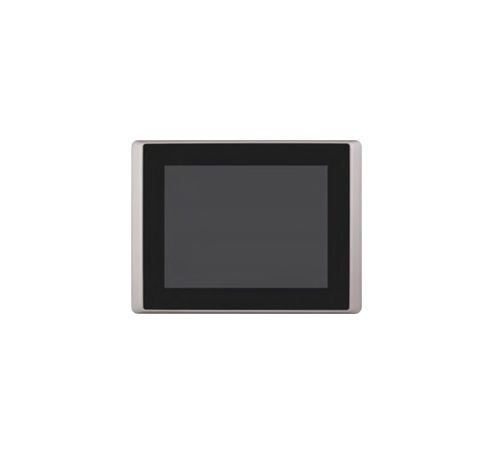

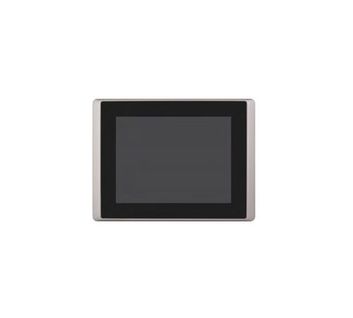

8" Fanless Panel PC w/ Intel Pentium N4200, 4GB RAM, Resistive Touch, 9~36VDC w/ Adapter, Aluminum Chassis (Model: APCW08-N42)
8" SVGA Fanless HMI Barebone with Intel Pentium N4200 (1.1 GHz) CPU, 4GB DDR3L RAM, Resistive Touch Screen, 9~36VDC input with adapter, Aluminum chassis
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
| The iTech APCW08-N42 is a compact and rugged 8-inch fanless panel PC engineered for industrial automation, factory control, and embedded applications. Powered by the Intel Pentium N4200 processor, this panel PC delivers reliable performance with low power consumption. Its resistive touch interface, aluminum enclosure, and wide DC input range make it ideal for harsh environments where durability, stability, and 24/7 operation are essential. Designed for seamless integration, it supports a variety of industrial systems and ensures dependable operation in demanding workflows. |
Features: |
|
| SYSTEM | ||
| CPU | Intel Pentium N4200 (1.1 GHz) CPU | |
| System Chipset | SoC | |
| Memory | 4GB DDR3L RAM | |
| External IO Port | ||
| USB | 2 x USB 3.0 type A | |
| Serial / Parallel | 1 x RS-232/422/485 DB9 (COM1), default RS-232 1 x RS-232 DB9 (COM2) |
|
| LAN | 2 x GbE LAN RJ-45 | |
| Audio | 1 x Audio Line Out | |
| Power | 1 x 3-pin DC power input terminal 1 x 2-pin connector for power on/of |
|
| Option | VESA Stand | |
| 4G LTE/Wi-Fi/BT | ||
| STORAGE SPACE | ||
| 2.5"/MEDICAL/64G/3DTLC/SATA3/TRANSCEND/TS64GSSD460K/RAM-LESS/-20~75 DEGREE/MEDICAL/BICS5 | ||
| Expansion | ||
| Onboard Expansion bus | 1 x Mini-PCIe slot (full size) | |
| 1 x Micro SIM slot | ||
| DISPLAY | ||
| Display Type | 8" TFT-LCD | 8" TFT-LCD |
| Max. Resolution | 800 x 600 | 800 x 600 |
| Max. Color | 16.2M | 16.2M |
| Luminance (cd/m2) | 450 | 450 |
| View Angle | 140(H) / 130(V) | 140(H) / 130(V) |
| Contrast | 500:1 | 500:1 |
| Backlight Lifetime | 40,000 hrs | 20,000 hrs |
| TOUCHSCREEN | ||
| Type | Resistive touch screen | |
| Interface | USB | |
| Light Transmission(%) | 80% | |
| POWER | ||
| Power Input | DC 9~36V | |
| Power Consumption | 28W | |
| Construction | Aluminum die-casting chassis |
| Mounting | Panel Mount, VESA 75 x 75 |
| IP Rating | IP66 Compliant Front Bezel |
| Dimensions | 231.1 x 176.1 x 50 mm |
| Net Weight | 1.9 kg |
| ENVIRONMENTAL | |
| Operating Temperature | 0~50˚C / -20~60˚C (option) |
| Storage Temperature | -30~70°C |
| Humidity | 10 to 95% @ 40°C, non- condensing |
| Certificate | CE / FCC CIass A / UL |
| OPERATING SYSTEM SUPPORT | |
| OS Windows 10 IoT Enterprise 2021 LTSC Entry PKEA | |
