7U 17.3 Military Grade, Rack Mount LCD Monitor w/ VGA, DVI, MIL-461E / MIL-STD-810F, EMI Mesh Coating (Model: EMRW1730-7U)

Military Grade, Rack Mount 7U, 17.3" LCD Monitor, 1920x1080, LED-300nits, VGA, DVI, WT (-20~65C), MIL-461E / MIL-STD-810F, Military Grade Power Connector (MIL-DTL-38999/1), Operation temperature: -20°C to + 55°C, with EMI Mesh Coating Without Speaker

Military Grade, Rack Mount 7U, 17.3" LCD Monitor, 1920x1080, LED-300nits, VGA, DVI, WT (-20~65C), MIL-461E / MIL-STD-810F, Military Grade Power Connector (MIL-DTL-38999/1), Operation temperature: -20°C to + 55°C, with EMI Mesh Coating Without Speaker

Inquiry/Quote Request
EMRW1730-7U
  • Overview
  • Specifications
  • Download

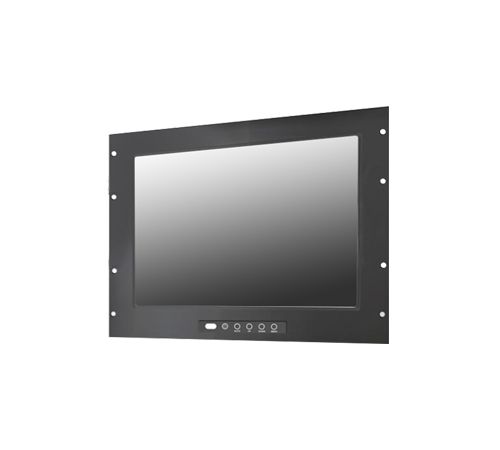

The EMRW1730-7U from iTech is a rugged 7U rack mount 17.3-inch LCD monitor designed to meet the demands of military and defense environments. Engineered to MIL-STD-810F and MIL-461E standards, this display delivers exceptional durability and performance even in extreme conditions. It features Full HD 1920x1080 resolution, 300-nit brightness, and supports VGA and DVI inputs. With its military-grade MIL-DTL-38999/1 power connector and wide temperature tolerance of -20°C to +55°C, this EMI-shielded monitor is built for mission-critical operations in harsh settings.


Features:
  • Rack Mountable - 7U height form factor for standard 19" racks
  • 17.3" LCD Display - Full HD resolution (1920 x 1080)
  • Wide Operating Temperature - Functional in extreme temperatures (-20°C to +55°C)
  • Extended Temperature Tolerance - Withstands storage/transport temperatures from -20°C to +65°C
  • MIL-STD Compliance - Conforms to MIL-STD-810F and MIL-STD-461E standards
  • Rugged Power Connector - Equipped with MIL-DTL-38999/1 military-grade power connector
  • EMI Mesh Coating - Provides enhanced electromagnetic interference shielding
Panel Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low reflection coating
Aspect Ratio / Size Wide / 17.3" viewable diagonal area
Active Area / Pixel Pitch 383.5(H) x 216.3(V) mm / 0.27(H) x 0.27(V) mm
Native Resolution / Colors 1920(H) x 1080(V) / 16.7M
Brightness / Contrast 300 cd/m2 (typ) / 1000 : 1
Response Time < 14ms (G-to-G)
Viewing Angle (typical) H.178° (- 89° ~ + 89°) , V. 178° (- 89° ~ + 89°)
Light Source LED backlight, Long life, 35,000 hrs (typ)
Input Terminals 1 x VGA, 1 x DVI, 1 x PC Audio (Stereo Headphone Jack) , 1 x DC Power Plug
Convenient Features Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B)
OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
Power Internal power supply with universal / Auto-Sensing, AC90 to 260V, 50/60 Hz
Power Consumption Operation / Power Saving 40 watt , < 1 watt (Support DPMS)
Operating Condition Temperature / Humidity -20°C ~ 55°C (-4°F ~ 131°F) , 10% ~ 90% (no condensation)
Storage Condition Temperature / Humidity - 20°C ~ 65°C (- 4°F ~ 140°F) , 10% ~ 90% (no condensation)
Certification   FCC , CE
Dimensions Physical Please refer to Drawing
Carton W x H x D = TBD
Weight N.W. / G.W. 12 Kgs / 13.5 Kgs
Container Loaded 20ft / 40ft / 40ft HQ TBD (Sets , By pallet)

Options Touch Video / TV Enhanced Panel Others
Resistive touch SV + AV Panel with LED backlight Digital Signage(Stand alone)
Capacitive touch SV + AV + AV Looping High brightness panel Networking Digital Signage
SAW touch SV + AV + TV Wide Temperature Motion Sensor
Infrared touch   Sunlight Readable Light Sensor
Protected glass     Auto-Dimming
