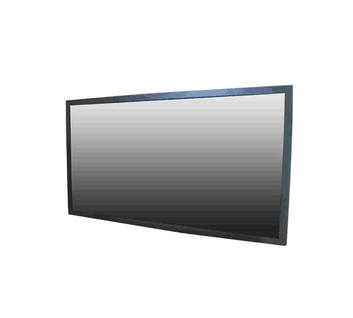

55" Front Water / Dust Proof IP65/NEMA LCD Monitor w/ VGA, DVI-D, HDMI, Multi Points PCT Touch (Model: CCHW5500HB2-PCT)

Front Water and Dust Proof IP65/NEMA 4 with Rear IP54 Solid Back housing except I/O. 55" LCD Monitor, 1920x1080, 2500nits VGA, DVI-D, HDMI, USB ( for Touch use ), Rear OSD, Built in power supply, 100-240 VAC 50-60Hz included with Touch Screen Multi points PCT (Projected Capacitive) + Speakers + Light Sensor

Front Water and Dust Proof IP65/NEMA 4 with Rear IP54 Solid Back housing except I/O. 55" LCD Monitor, 1920x1080, 2500nits VGA, DVI-D, HDMI, USB ( for Touch use ), Rear OSD, Built in power supply, 100-240 VAC 50-60Hz included with Touch Screen Multi points PCT (Projected Capacitive) + Speakers + Light Sensor

Inquiry/Quote Request
CCHW5500HB2-PCT
  • Overview
  • Specifications
  • Download
Our Chassis LCD Monitor with IP65/NEMA4 is a robust and reliable solution for protecting electronics in demanding environments, providing both physical protection and visibility of the contained components. It provides excellent durability and resistance to corrosion.


Key Featrues:
  • High Contrast color TFT LCD Monitor support resolution up to FULL HD (1920 x 1080)
  • Power management system conforms to VESA DPMS and EPA Energy Star standards.
  • Full consideration for touch screen installation and application.
  • Universal Power adapter.
  • Support DDC1 & DDC2B for Plug & Play compatibility.
  • Advanced OSD control for picture quality adjustment.
  • Detachable stand for wall-mounting application.
  • Heavy duty Monitor with steel frame.
  • Front IP64/NEMA4X Optional with PCAP or 5 Wire Resistive Touch Screen Options
  • IP65 Solid Back housing except I/O and VESA mounting
  • Custom design by request.
Display Size: 55" TFT-LCD
Resolution Capabilities: 1920 x 1080 Full HD
Frame Rate 60HZ
Response Time: 8ms typical
Viewing Angle: 178/178
Contrast Ratio: 4000 :1
Brightness: 2500 cd/m2, Completely Daylight Viewable
Orientation Landscape Mode
Backlight MTBF: 60,000 Hours Typical
Colors Supported: 10 bit 1.07 Billion
Video Interface: VGA, HDMI , DVI-D
Audio Out: 3.5mm Audio output
Speaker: Included 10Watts x 2
Power Source: 100-120VAC 50/60Hz
Power Consumption: 460 Watt for complete monitor
Temperature: Operating: -15° to 60°C (5F to 140F)
(Optional heater reach to -22F/-30C)
Storage: -30° to 60°C
Humidity: Operating: 5 to 90% NC
  Storage: 5 to 95% NC
Operating Time 24/7/365
