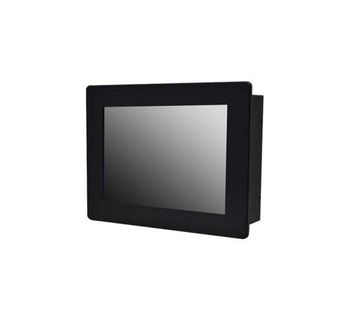

5.7" Panel Mount PC Front IP65 LCD Monitor w/ Intel Celeron 2GB RAM, SSD 16GB, Resistive Touch (Model: CFL-057-NP-TR)

5.7" Front IP65 LCD Monitor, 640x480, 500nits with Intel Celeron 2.16GHz, 2GB RAM, SSD 16GB, Win Embedded Std P 7 Emb ESD OEI (WS7P) Runtime installation

5.7" Front IP65 LCD Monitor, 640x480, 500nits with Intel Celeron 2.16GHz, 2GB RAM, SSD 16GB, Win Embedded Std P 7 Emb ESD OEI (WS7P) Runtime installation

Inquiry/Quote Request
CFL-057-NP-TR
  • Overview
  • Specifications
  • Download
The 5-inch Panel Mount PC with Front IP65 LCD Monitor (CFL-057-NP-TR) is a versatile and robust solution designed for demanding industrial environments. Its compact size and durable construction make it perfect for installations with limited space. Featuring an IP65-rated front panel, this monitor is resistant to dust and water, ensuring reliable performance even in challenging conditions. The vibrant LCD display with resistive touch provides precise input capabilities, making it an ideal choice for automation, control systems, and other rugged applications.


Features:
  • 5.7" Industrial Panel / 640x480 / 500nits
  • Panel Mount (with 3mm Front Bezel ) / Clamp with VESA mount
  • Resistive Touch / Front IP65
  • Fanless Design
  • All Black Powder Coating
  • NP93 / N2930 ( 2M Cache, up to 2.16GHz Intel® Celeron™ processor ) / RAM 2GB / SSD 16GB
  • 12-24VDC input and 12VDC power adapter for testing with Terminal Block
  • Win Embedded Std P 7 Emb ESD OEI (WS7P) Runtime installation
  • It has VGA port but it only has one LAN port. Support 1* HDMI (option VGA) Output
Display Viewing Size Image 5.7"
Active Display Area (mm) 115.2(H)x86.4(V)
Pixel Pitch (mm) 0.18(H)x0.18(V)
Resolution 640x480
Contrast Ratio 800:1(typ.)
Color 262K( 6-bits )
Brightness 500 cd/m2
Viewing Angle -80~80 (H) ; -70~70 (V)
Recommended Resolution 640 x 480@60HZ, 75HZ
Power Source 12-24VDC input and 12VDC power adapter for testing with Terminal Block
Management VESA DPMS Compliant


Motherboard Specs:
  • Intel Bay Trail-M SoC Processor
  • On-board 2GB DDR3L 1333MHz System Memory
  • Support 1* Serial ATAII (3Gb/s) Device
  • Integrated Realtek ALC888S HD Audio CODEC with 4-CH
  • 1* 24-bits Dual channel LVDS header
  • Support 1* HDMI (option VGA) Output
  • Supports 1* Realtek RTL8111H GbE
  • 12V DC-in

Model Form  Factor
JNP93-2930 (N2930) Quad Core 1.83GHz SoC (TDP 7.5W) PICO (100 * 72mm)
Processor  System Memory
• Intel® Bay Trail-M SoC Processor 2GB onboard DDR3L 1333MHz Single Channel
• UEFI BIOS
Storage Expansion
• 1* SATAII (3 Gb/s) 1* Mini-PCIe (half size)
• 1* mSATA (full size)
Ethernet Graphics
1* Realtek RTL8111H GbE • Intel® HD Graphics, shared memory
• 1* VGA (Option with HDMI, Max Resolution: 1920x1200@60Hz)
• 1* HDMI (Option with VGA, Max Resolution: 1920x1200@60Hz)
• 1* 24-bits Dual channel LVDS (Max Resolution: 1920x1200@60Hz)
• Support Dual Displays
Audio Watchdog  Timer
HD audio: Realtek ALC888S • From Super I/O to drag RESETCON#
• 256 segments (10sec ~ 255min)
Internal  I/O External  I/O
• 6* USB2.0 Rear:
• 1* SATAII • 1* RJ45
• 1* LVDS • 1* USB 3.0
• 2* COM (one support RS232/422/485 with 5V/12V selectable header) • 1* USB 2.0
• 1* Audio Header • 1* VGA (option with HDMI)
• 1* AT mode • 1* HDMI (option with VGA)
  • 12V DC-in
Power Compliance
12V DC-in PWR (2-pin PWR Connector) CE, FCC, RoHS, REACH
- AT: Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready
Temperature OS Support
• Operating Temperature: -20 ~ 60° C Win7 SP1 32-bit, Win7 SP1 64-bit, Win8 32-bit, Win8 64-bit, Win8.1 32-bit, Win8.1
64-bit, Win10 32-bit, Win10 64-bit, Win 10 IoT Enterprise 64-bit, POSready 7 32bit,
POSready 7 64bit, WE Standard 7 SP1 32-bit,  WE Standard 7 SP1 64-bit, WE Standard 8 32-bit, WE Standard 8 64-bit, CentOS (Version 6.5), Debian (Version 7.6), Fedora   workstation   (Version   20),   openSUSE   (Version   13.1),   Ubuntu   workstation (Version   14.04),  pfSense   (Version   2.2),   RedHat  Enterprise  (Version  7.0),   Android (Version 4.4.2_r1-ia2)
• Storage Temperature: -40 ~ 70° C
• Operating Humidity: 10% ~ 90% RH (non-condensing)
• Storage Humidity: 0~95% RH (non-condensing)

Warranty
2 Years limited warranty
