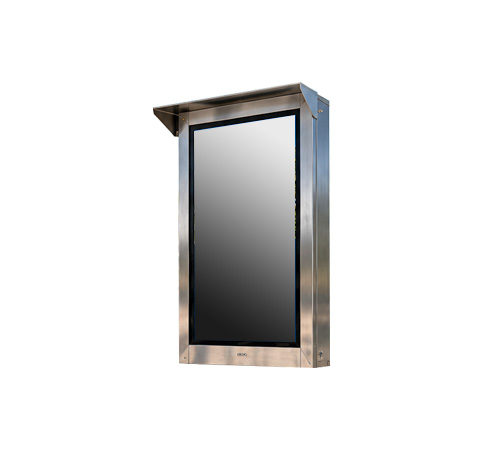

Full IP65 43" 2500nits High Brightness Outdoor Portrait Stainless Steel Display (Model: CCHW4600P-H2-KS2)

Full IP65 43" 2500nits High Brightness Outdoor Portrait Stainless Steel Display with High-TNI Panel Dual Post Stand

Full IP65 43" 2500nits High Brightness Outdoor Portrait Stainless Steel Display with High-TNI Panel Dual Post Stand

Inquiry/Quote Request
CCHW4600P-H2-KS2
  • Overview
  • Specifications
  • Download
The 43" Full IP65 2500-nit High Brightness Outdoor Stainless Steel Display is designed for demanding outdoor and semi-outdoor environments where excellent visibility, durability, and reliable operation are essential. Featuring a 2500-nit high-brightness High-TNI panel, the display provides clear and readable images even under strong ambient or direct sunlight.

Built with a stainless steel enclosure and Full IP65 protection, this rugged display offers resistance against dust, water, and harsh environmental conditions. Its portrait orientation and dual-post stand provide a stable and professional installation solution for outdoor digital signage, information displays, transportation facilities, commercial spaces, and other high-visibility applications.

The display combines high brightness, rugged construction, outdoor protection, and flexible portrait installation to deliver dependable performance in challenging environments.


Features:
  • 46" industrial LCD / 1920 x 1080 / 2500 nits / High-TNI panel
  • SUS304 stainless-steel enclosure / Full IP65 outdoor design
  • AR protective glass with 3M vandal-resistant film
  • Internal air-curtain cooling design with IR remote control / IR sensor at front bottom center
  • 2 x venting valves on top
  • 300(W) x 400(H) x 150(D) mm electrical/media-player box  SY304015_box
  •  Gasketed access door with padlock provision for easy media-player access
  •  All I/O connectors, OSD controls, and power switch located inside the media box - no exposed external I/O or OSD membrane
  •  Internal industrial power distribution for LCD/cooling fans, optional heater, and media player
  •  Single 100–240VAC main power input
  •  Internal cable pass-through for HDMI, LCD power, and optional heater cable Inside the electrical box
  •  Bottom conduit opening for customer power/conduit connection  electrical box
  •  Provision for 2 x media-player antenna connectors with removable top mounting plate electrical box
  •  Outdoor sun hood
  •  Dual stainless-steel support legs with stainless-steel base plates
  •  4 x M6 leg-stand mounting / 4 x M8 base mounting
  • Approx. enclosure dimensions: 728(W) x 1147.5(H) x 150(D) mm
  • Blanket heater (510W / 100VAC) / Temp. controller ( 5C_ON, 15C_OFF)
  • Built-in industrial AC power distribution socket with circuit breaker/switch and dual AC outlets inside the media box
DISPLAY Viewing Size Image 46"
Active Display Area (mm) 1021(H) x 575.70 (V)
Pixel Pitch (mm) 0.53025(H)x0.53025(V)
Resolution 1920x1080
Contrast Ratio 4000 : 1(typ.)
Color 16.7 M(8bits+colors)
Brightness 2500nits
Viewing Angle -89~89 (H) ; -89~89 (V)
Recommended Resolution 1920 x 1080 @ 60Hz
Signal Connector HDMI
POWER Source AC100V~AC240V
Management VESA DPMS Compliant
