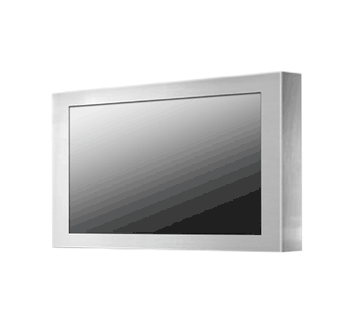

32" IP66 Chassis Mount LCD Monitor 2560 x 1440, LED 350 nits, 1 x VGA + 5 x HDMI + 1 x DP input (Model: ECHW32002K-SIP)

32" IP66 Chassis Mount LCD Monitor 2560 x 1440, LED 350 nits, 1 x VGA + 5 x HDMI + 1 x DP input (Model: ECHW32002K-SIP)

32" IP66 Chassis Mount LCD Monitor 2560 x 1440, LED 350 nits, 1 x VGA + 5 x HDMI + 1 x DP input (Model: ECHW32002K-SIP)

Main Feature

    • High 2K resolution provides an exceptional experience regardless of any application
    • Modular construction for more flexibility in terms of product configuration as well easy maintenance
    • A brightness sensor for auto adjustment of the screen so that it’s neither too bright nor too dark
    • Robust aluminum housing to withstand rugged applications
ECHW32002K-SIP
  • Overview
  • Specifications
  • Download
  • Contact Sales

Features:

  • High 2K resolution provides an exceptional experience regardless of any application
  • Modular construction for more flexibility in terms of product configuration as well easy maintenance
  • A brightness sensor for auto adjustment of the screen so that it’s neither too bright nor too dark
  • Robust aluminum housing to withstand rugged applications
  • Optional build-in touch screen functionality for an interactive application
  • Optional protective glass to keep dust, dirt, and moisture away from the display
  • Standard VGA connector but also available with optional AV, SV, and AV-Looping
  • Energy-efficient based on advance power management
  • Customizable design available upon request for OEM customers

Options:

  • Touch: Resistive, Capacitive, SAW, Infrared, and Protected glass
  • Video/TV: SV + AV, SV + AV + AV_Looping, SV + AV + TV
  • Enhanced Panel: Panel with LED backlight, High brightness panel, Wide Temperature, Sunlight Readable
  • Others optional features: Digital Signage (Standalone), Networking Digital Signage, Motion Sensor, Light Sensor, Auto-Dimming

Panel Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low reflection coating
Aspect Ratio / Size Wide / 32" viewable diagonal area
Active Area / Pixel Pitch 708.48(H) x 398.52(V) mm / 0.276(H) x 0.276(V) mm
Native Resolution / Colors 2560(H) x 1440(V) / 1.07B
Brightness / Contrast 350 cd/m2 (typ) / 1000 : 1
Response Time ? 6 ms (G-to-G)
Viewing Angle (typical) H.178o (- 89o ~ + 89o) , V. 178o(- 89o ~ + 89o)
Light Source LED backlight, Long life, 35,000 hrs (typ)
Input Sources PC System Signal Analog RGB (0.7/1.0 Vp-p, 75 ohms)
Sync Separate Sync, Composite Sync, Sync On Green
Frequency Fh : 30 - 82Khz , Fv : 50 -75Hz
Audio System N / A
Input Terminals 1 x VGA , 5 x HDMI, 1 x DP , 1 x PC Audio (Stereo Headphone Jack) , 1 x DC Power Plug
Convenient Features Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B)
OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
Power Internal power supply with universal / Auto-Sensing, AC90 to 260V, 50/60 Hz
Power Consumption Operation / Power Saving 73.75 watt , < 1 watt (Support DPMS)
Operating Condition Temperature / Humidity 0°C ~ 50°C (32°F ~ 122°F) , 10% ~ 90% (no condensation)
Storage Condition Temperature / Humidity - 20°C ~ 60°C (- 4°F ~ 140°F) , 10% ~ 90% (no condensation)
Certification   FCC , CE
Dimensions Physical Please refer to Drawing
Carton W x H x D = TBD
Weight N.W. / G.W. 14.5 Kgs / 16 Kgs
Container Loaded 20ft / 40ft / 40ft HQ TBD (Sets , By pallet)
