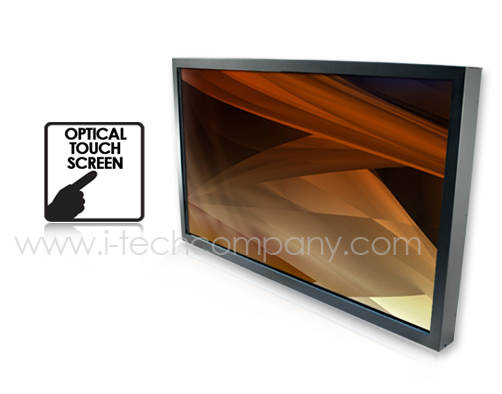

IR 6-points Touch Widescreen Display Chassis Mount, 32" LCD monitor, 1920 x 1080, 380 nits. (Model: BCHW3200-MOT)

IR 6-points Touch Widescreen Display Chassis Mount, 32" LCD monitor, 1920 x 1080, 380 nits,DVI+VGA+AUDIO, CCFL backlight of panel +Flex wall mount, USB Controller. (High speed two point multi-touch --Support Linux and Window XP/7/8) (Model: BCHW3200-MOT)
  • ISO Front View
  • Back View
  • Side View
  • Input/Output
  • Bottom View
  • Pen & Touch Config.
  • Pen & Touch Config.
  • Pen & Touch Config.
  • Pen & Touch Config.
  • Pen & Touch Config.
  • Pen & Touch Config.
  • Pen & Touch Config.
  • Pen & Touch Config.
  • Pen & Touch Config.
  • Pen & Touch Config.

IR 6-points Touch Widescreen Display Chassis Mount, 32" LCD monitor, 1920 x 1080, 380 nits,DVI+VGA+AUDIO, CCFL backlight of panel +Flex wall mount, USB Controller. (High speed two point multi-touch --Support Linux and Window XP/7/8) (Model: BCHW3200-MOT)

Inquiry/Quote Request
BCHW3200-MOT
  • Overview
  • Specifications
  • Download


Features


  1. IR 6-points Touch Provide Best Clarity of image with Protective Front Glass
  2. Metal Chassis Housing with built in speakers
  3. IR Remote Sensor
  4. Auto Power On/Off and Auto Signal On/Off


  1. Perforated rear Cover provide ample ventilation
  2. Recess handle can easily handle and install (42” and above)
  3. VESA Mount for Surface Mount


  1. OSD: Power/Menu/Auto/Left/Right
  2. Main Power On/Off Switch
  3. VGA and DVI Video and Audio Input
  Include low profile wall mount bracket


Display Specifications - CCFL PANEL
Active Screen Size 32"(16:9)
Display Area(mm) 698.4(H) x 392.85(V)
Number of Pixels 1920 x 1080
Contrast Ratio 5000 : 1
Colors 16.7M
Brightness(cd/m 2 ) 400
View Angle R/L178° x U/D178°
Response Time 6.5 ms
Backlight Life Time 50,000/hr

Power
Power Input 100V~240V AC 50/60Hz
Total Power Consumption 71 W

Mechanical Specifications
Operating Temp. 0°~35°C
Relative Humidity 20~80% RH
Storage Temp. -20°~40°C
Dimensions(mm) 763(L)x472(W)x130(D)
Mounting(LxW/mm) 400(L)x200(W

Accessories
CD x 1
Power Core x 1
Wall mount x 1
Remote Control x 1
I/O Cover x 1


Touch Screen Technology Comparison
Features
Resistive
Capacitive
SAW
Infrared
Optical Imaging
Clarity of image
••
•••
•••
•••
Designed for large displays
•
•••
•••
Resistance to vandalism
••
••
••
•••
No calibration drift
•
••
••
•••
•••
Easy to manufacture
•••
••
•
•
•••
Ease of integration
•
•
••
•••
Stylus independent
•••
•
•
•••
•••
Touch accuracy
••
•••
•••
•••
•••
Off screen capability
••
•
•••
Sealable, resistant to dust
••
••
••
•••
