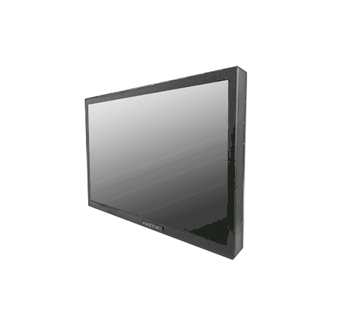

Wide 24" 350nits Chassis LCD Display w/ VGA, DVI-D & 5Wires Resistive Touch (Model: EMilW2400-TR-DC-M-V1)

Wide 24" Chassis LCD Display, 1920x1200, LED-350nits, 16.7M Colors WV(178/178), Working Temp(-25~55C), Storage Temp(-40~70C) VGA+DVI-D signal input ports, 5 wires resistive touch, USB interface OSD on front, at center of bottom border, 24VDC input with Terminal Block, VESA 100x100 mm

Wide 24" Chassis LCD Display, 1920x1200, LED-350nits, 16.7M Colors WV(178/178), Working Temp(-25~55C), Storage Temp(-40~70C) VGA+DVI-D signal input ports, 5 wires resistive touch, USB interface OSD on front, at center of bottom border, 24VDC input with Terminal Block, VESA 100x100 mm

Inquiry/Quote Request
EMilW2400-TR-DC-M-V1
  • Overview
  • Specifications
  • Download

Display Features Overview
Backlight High bright LED / sunlight readable (optional)
Anti Reflective Coating AR coating minimizes specular reflections
Mount CEDS console compatible mounting / rear VESA mount avail with bracket
Auto Position / Settings Auto position resolution scaler
RoHS Lead free RoHS compliant (optional)
Cooling Natural Convection / Fan

DESIGNED TO MEET:
EMI: Mil-STD-461E / Shock: Mil-S901D / Vibration: Mil-STD-167-1a, Type 1
  • Military Grade Metal connectors
  • MIL-D38999 SERIII
  • MIL Connector----------- TVP00RW9-98S--3pin
Display Characteristics
Display Size 611 mm diagonal
Resolution 1920 X 1200 colored pixels
Colors 16.7 million
Active Area (H)324.0mm x (W)518.4mm
Pixel Pitch 0.270mm(H) x 0.270mm(V)
Brightness 350 cd/m^2
Viewing Angle Vertical: +/- 89 deg
Horizontal: +/- 89 deg
Contrast Ratio 1000:1 Typical
Response Time 6.5ms
Sync Range Horizontal: 30 kHz to 82 kHz
Video non-interlaced Min refresh rate 60 Hz / 72 Hz
Controls Front controlled with full dimming capabilities
Power Input 85-264 VAC 47 TO 63 Hz : 12 & 24VDC
Power Consumption Less than 75 watts
Data Inputs
VGA (x1) D-sub
DVI-D (x1) Dvi-D input
Mechanical Characteristics
Bezel Dimensions Dimension(WxHxD)=581*407.4*92 mm  (22.87” x 16.02” x 3.62”)
Weight Less than 25 Lbs
Cooling Natural convection / fan
Environmental Characteristics (designed to)
Shock Mil-S-901D, Grade A, Class1 Type A Mil-STD-810E Vibration Mil-STD-167-1a, Type 1
EMI Mil-STD-461E Drip Proof Mil-STD-810E
Sand & Dust Mil-STD-810E Operating Temp -25 to 55 C
Non-operating temp -40 to 70C
LCD Options
NVIS Compatible backlight systems High Altitude Explosive Atmosphere
compatible
LED Optional LED high bright backlight Touch Screen Acoustic, Capacitive,
Resistive. USB or rs232
Low/High Temp -40 to 70C operating X-term Integrated Pentium based
