24" IP65 Front Rack Mount LCD LED-1000nits AC-IN w/ Built-in PWR, VGA+HDMI+DVI, MIL-STD-810G (Model: EMRW2410HB2)

IP65 Front Rack Mount, Wide 24" LCD, 1920x1200, LED-1000nits, WV(178°/178°), AC-IN w/ Built-in PWR I/O: VGA+HDMI+DVI MIL-STD-810G Anti-Vibration & Anti-Shock

IP65 Front Rack Mount, Wide 24" LCD, 1920x1200, LED-1000nits, WV(178°/178°), AC-IN w/ Built-in PWR I/O: VGA+HDMI+DVI MIL-STD-810G Anti-Vibration & Anti-Shock

Inquiry/Quote Request
EMRW2410HB2
  • Overview
  • Specifications
  • Download

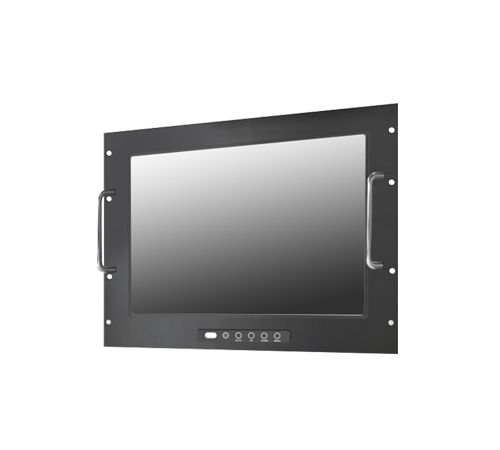

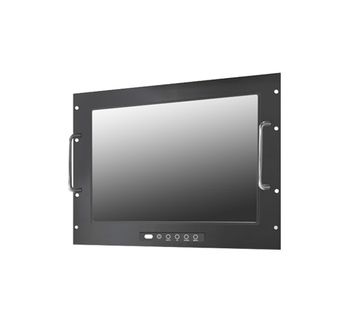

The iTech 24-inch IP65 Front Rack Mount LCD Monitor (EMRW2410HB2) is a rugged MIL-STD-810G certified display designed for mission-critical and military-grade applications. Built with a sealed IP65 front bezel, it ensures resistance against dust and water, while delivering high brightness visuals for optimal viewing in demanding environments. Ideal for defense, marine, industrial control, and transportation systems, this rack mount monitor combines durability, reliability, and performance.


Features:
  • Modular mechanical design enables flexible product configuration and simplified maintenance.
  • Optional built-in touch screen supports interactive applications.
  • Auto-brightness sensor available for seamless day and night operation.
  • Operational Temperature: MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
  • Storage Temperature: MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +85°C
  • Humidity: MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
  • Altitude: MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
  • Vibration: MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
  • Shock : MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
  • Other: MIL-STD-461F CE & RE emissions (with 461 filter option)
Cell Type TFT LCD
Glass Surface Black Anti-Glare, low reflection coating
Aspect Ratio Wide
Size 24.1" viewable diagonal area
Active Area 518.4(H) x 324.0(V) mm
Pixel Pitch 0.27(H) x 0.27(V) mm
Native Resolution 1920(H) x 1200(V)
Colors 16.7 M
Brightness 1000
Contrast 1000 : 1
Response Time ≤ 14 ms (G-to-G)
Viewing Angle (typical) H. 178°(- 89°~ + 89°) , V. 178°(- 89°~ + 89°)
Light Source LED backlight, Long life, 35,000 hrs (typ)

CERTIFICATION
FCC , CE
INPUT TERMINALS
1 x VGA, 1 x HDMI, 1 x DVI, 1 x PC Audio (Stereo Headphone Jack) , 1 x DC Power Plug
CONVENIENT FEATURES
Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B) , OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
POWER
Internal power supply with universal / Auto-Sensing, AC90 to 260V, 50/60 Hz
POWER CONSUMPTION
Operation / Power Saving 26 watt , < 1 watt (Support DPMS)
OPERATING CONDITION
Temperature / Humidity 0°C ~ 50°C (32°F ~ 122°F) , 10% ~ 90% (no condensation)
STORAGE CONDITION
Temperature / Humidity -20°C ~ 60°C (-4°F ~ 140°F) , 10% ~ 90% (no condensation)
DIMENSIONS
Physical Please refer to Drawing
Carton TBD
WEIGHT
N.W. / G.W. 12 Kgs/13.5 Kgs
CONTAINER LOADED
20ft / 40ft / 40ft HQ TBD (Sets , By pallet)

TOUCH VIDEO INPUT ENHANCED PANEL POWER OTHERS
Resistive Touch AV-IN High Brightness Panel 24V DC-IN Motion Sensor
Projected Capacitive Touch AV Looping Sunlight Readable 9~36V DC-IN Light Sensor
Infrared Touch HDMI / DP Wide Viewing Angle 48V 72V DC-IN VR-knob Dimming
Protected Glass HD-SDI Wide Temperature 90V 125V DC-IN RS232 Remote On/Off
Optical Bonding   UV Film 110V 220V DC-IN Military Connector: MIL 38999
    Anti-Vandal   Metal Connector: M12 / M16
        Stainless 316 Enclosure
