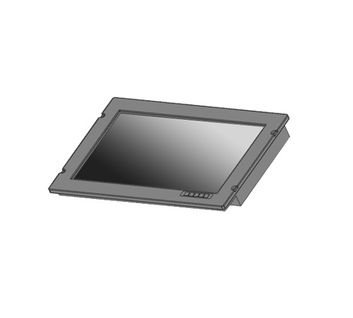

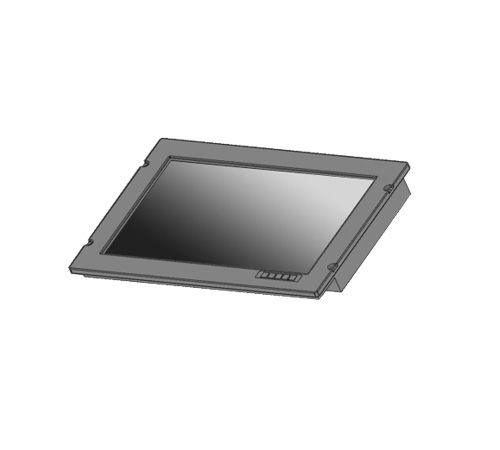

24" 4K Military Chassis Rackmount Display 2xHDMI, DP, VGA, RS232, PCAP Multi Touch, DC 9~36V (Model: NRM2380KTC)
Military Chassis Rugged Rackmount 24" 4K Display, 3840 x2160, 540 cd/m2, 2x HDMI, 1x DP, 1 x VGA, 1 x RS232, 2x Audio, 10-Point Projected Capacitive Multi Touch, DC 9~36V Power Input, Design to meet MIL-STD-810 / MIL-STD-883 / MIL-STD-461E
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
| Elevate rugged display performance with the 24" 4K Military Chassis Rugged Rackmount Display (NRM2380KTC) from i-Tech Company. Engineered for extreme environments, this ultra-high-definition (3840 x 2160) touchscreen monitor delivers durable, military-grade reliability in a chassis-mounted, deployable rack form factor. It's built to MIL-STD levels of ruggedness and ideal for defense, aerospace, and command-control systems where resilience and clarity are mission-critical. |
Feature: |
|
| Mechanical | Front Bezel | Military grade 64430 aluminum alloy with anti-corrosion treatment |
| Chassis | Heavy duty galvanized steel with anti-corrosion treatment | |
| Color | Semi-gloss black | |
| Mount | Console Mount | Yes, Console Mount |
| Front Mount | Yes | |
| VESA Mount | Optional at your request | |
| EMI Mesh / Filter | EMI Mesh | Yes, built in |
| EMI Filter | Yes, built in | |
| LCD Display | LCD Size | 23.8" TFT LCD |
| Resolution | 3840 x 2160 | |
| Aspect Ratio | 16 : 9 | |
| Luminance | 540 cd/m2 | |
| Contrast Ratio | 1200 : 1 | |
| Display Color | 1.07 Billions | |
| View Angle | 89 / 89 / 89 / 89 | |
| Protective Glass | Protective Glass | Built in protective glass |
| Glass Type | Strengthen glass | |
| Thickness | 3.0 mm | |
| Touch Screen | 10-Point Projected Capacitive Multi Touch | |
| Touch Control Interface | USB | |
| I/O Port | RS232 | 1 x RS232 for remote control |
| VGA | 1 x VGA | |
| HDMI | 2 x HDMI | |
| DP | 1 x DP | |
| Audio | 2 x Audio | |
| USB | 1 x USB for firmware update | |
| USB | 1 x USB for touch control | |
| DC Connector | 1 x DC with Military circular connector with mating connector | |
| Control Keys | Day Mode Control Key | Optional |
| Night Mode Control Key | Optional | |
| Brightness Up Key | Brightness Increase | |
| Brightness Down Key | Brightness Decrease | |
| On-Off Key | On-Off Key | |
| OK Key | Confirm Key | |
| Power Supply | MIL-STD-1275D | Compliant |
| Polarity Reverse Protect | Fully protected | |
| Power Consumption | 45 ~ 50 W | |
| Power Input | DC9 ~ 36V Wide Input Range | |
| Power Supply Grade | Military grade power supply MIL-STD-1275 compliant | |
| Polarity Reverse Protection | Yes, fully protected in case polarity reverse short circuit. It will be auto recovery when corrected. | |
| Over Voltage Protect | Yes | |
| Overload Protect | Yes | |
| Heater Module | Heater Module | Optional Nagasaki-patented safety heater module |
| Auto Sensor | Optional | |
| Dimension | Exclude Bezel | 644 (W) x 415 (H) x 64 (D) mm |
| Include Bezel | 644 (W) x 415 (H) x 78 (D) mm | |
| Environmental | Operating Temperature | -20 to +60 deg. C |
| Storage Temperature | -40 to +75 degree C | |
| Mould Growth | MIL-STD-810G/H complaint | |
| Altitude | 40K feet | |
| Vibration | Design to meet MIL-STD-810 | |
| Shock | Design to meet MIL-STD-810 | |
| Thermal Shock | Design to meet MIL-STD-883 | |
| EMI/EMC | CE | Approval |
| FCC | Approval | |
| MIL-STD-461E | design to meet |
