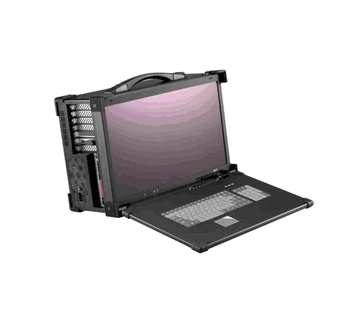

21.5" LCD Rugged Portable Enclosure PC Intel Core i9, 64GB RAM, 500GB SSD w/ Rubber Corners (Model: BPCW2150-i9X)
Rugged Portable Enclosure with Rubber Corners, 6x5.25", 21" LCD 1920x1080 with Intel Core i9-10900X, 64GB DDR4, 500GB SATA SSD, NVIDIA GeForce GT 1030 2GB DDR4
BPCW2150-i9X
- Overview
- Specifications
- Download
| Chassis |
Rugged portable enclosure with rubber corners, 6x 5.25 |
| Display |
21" LCD (1920x1080 Resolution), HDMI or DVI cable connection |
| K/B & Mouse |
Detachable industrial USA language keyboard w/touchpad |
| CPU Processor |
1x Intel Core i9-10900X Processor (10 Cores / 20 Threads) 19.25MB Cache, 370 GHz (4.5GHz Max Turbo) |
| CPU Fan |
1.5U Profile Heatsink and Fan |
| Motherboard |
WS X299 Intel X Series Processor, 8 DIMM, ATX MB. Intel® X299 Chipset |
| Slot Layout |
7x PCI-E 3.0 x16,
**7 x PCIe 3.0/2.0 x16 (single x16 or dual x16/x16 or triple x16/x16/x16 or quad x16/x16/x16/x16
or seven x16/x8/x8/x8/x8/x8/x8) |
| Memory |
64GB DDR4 RDIMM Memory (8x 8GB) |
| Video Card |
NVIDIA GeForce GT 1030 2GB DDR4 PCI-Express Video Card |
| Rear I/O Ports |
2x RJ45 Gigabit Ethernet LAN ports, 2x USB 2.0, 1x VGA Port |
| SSD |
Samsung EVO 870 500GB SATA SSD
Samsung EVO 870 4GB SATA SSD |
| Removable Kit |
4x 2.5" HDD removable trays |
| LAN |
2x 10/100/1000 Gigabit Ethernet port(RJ45) |
| Optical Drive |
Slim Blu-Ray Drive |
| Audio |
Realtek ALC S1220A |
| Power Supply |
850W ATX Power Supply. 110/220v autoswitching |
| Other Module |
TPM-M R2.0 (Inferno SLB 9665) Module |
| OS |
No OS |
| Carrying Bag |
Complimentary carrying bag with wheels |
| Dimension |
21.10" (W) x 15.53" (H) x 11.71" (D) |
| Warranty |
One year parts and labor Support |
|
| |
| ENVIRONMENTAL FACTORS |
| Temperature |
| Operating |
0°C~50°C |
| Non-Operating |
-20°C~60°C |
| Relative Humidity |
10%~90% |
| Operating |
10%~90% |
| Non-Operating |
10%~95% |
| Approval |
CE, FCC, RoHS |
|
