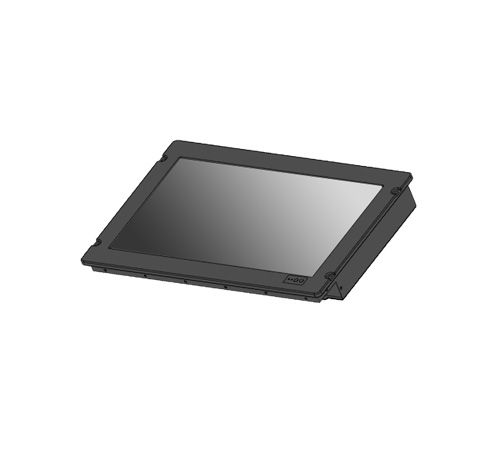

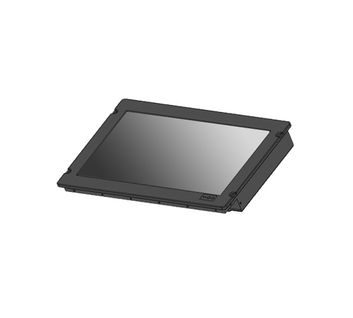

21.5" Marine Grade Panel PC Multi PCAP Touch w/ Intel 13th Gen. Quad-Core, 8GB RAM, 256GB SSD (Model: NMAR2150-QC-DNV)

21.5" Marine Grade Panel PC, Rugged Galvanized Steel with Anti-Corrosion Treatment, Multi-point Projected Capacitive Touch with Intel 13th generation Quad-core 3.6GHz, 8GB DDR5 4800MHz SO-DIMM RAM, 256GB ultra fast SSD

21.5" Marine Grade Panel PC, Rugged Galvanized Steel with Anti-Corrosion Treatment, Multi-point Projected Capacitive Touch with Intel 13th generation Quad-core 3.6GHz, 8GB DDR5 4800MHz SO-DIMM RAM, 256GB ultra fast SSD

Inquiry/Quote Request
NMAR2150-QC-DNV
  • Overview
  • Specifications
  • Download
DNV-Certified 21-Inch Marine Panel PC with Multi-Touch and Quad-Core Performance
Built to thrive in challenging maritime environments, the NMAR2150-QC-DNV is a rugged 21-inch Marine Grade Panel PC that meets DNV certification standards for marine safety and reliability. Featuring a projected capacitive multi-touch screen, fanless design, and a powerful Intel Quad-Core processor, this system is optimized for ship bridges, control stations, and offshore platforms. Its anti-corrosive chassis, IP66-rated front bezel, and wide voltage input ensure dependable performance in harsh, vibration-prone conditions at sea.


Features:
  • Front bezel: military grade 64430 aluminum alloy with anti-corrosion treatment
  • Chassis: rugged galvanized steel with anti-corrosion treatment
  • Color: semi-gloss black
  • EMI Mesh: Yes
  • EMI Filter: Yes
  • Touch: Multi-point Projected Capacitive Touch
Mechanical Front Bezel Marine grade 64430 aluminum alloy with anti-corrosion treatment
Chassis Rugged galvanized steel with anti-corrosion treatment
Color Semi-gloss black color
Fanless Fanless design
EME / EMI EMI Mesh Yes
EMI Filter Yes
LCD Display LCD Size 21.5”
Resolution 1920 x 1080 Full HD
Luminance 250 cd/m2
Contrast Ratio 3000 : 1 ultra high contrast
Display Color 16.7 M
Viewing Angles 89 / 89 / 89 / 89 ultra wide angles
Touch Touch Multi-Point Projected Capacitive Touch
Scratch Scratch resistant
Mount Front Mount Front Mount
Panel Mount Panel Mount
VESA VESA-100 Mount
Processor Main-Board Marine grade main board
Processor Intel 13th Generation N97 Quad-core 3.6GHz fast processor
No. of Core / Thread 4-Core, 4-Thread
Speed 3.6 GHz
Cache Memory 6MB L3 smart cache
GPU GPU Intel UHD GPU
  DirectX 12.0
  Open GL 4.5
  Open CL 3.0
System RAM RAM 8 GB DDR5 4800MHz fast SO-DIMM
Expansion 16GB
RAM Type DDR5 4800MHz SO-DIMM
Storage SSD 250GB M.2 2280 NVMe Ultra Fast SSD
Expansion 512G, 1TB, 2TB, 4TB
I/O Port USB 3.2 2 x USB3.2 ultra fast USB
USB 2.0 2 x USB2.0
LAN 2 x 10/100/1000/2500 Base-T ultra fast Ethernet
HDMI 2 x HDMI
Serial (COM) 2 x Configurable RS232/422/485 serial ports (default RS232)
DC 1 x DC with Military circular connector

Power Supply DC Power Input DC9 ~ 36V wide range input
Polarity Reverse Protection Fully protected
MIL-STD-1275 Compliant
AC Power Optional external AC100~240V power adapter
Dimension Exclude Front Bezel 562 (W) x 360 (H) x 74 (D) mm
Include Front Bezel 562 (W) x 360 (H) x 84 (D) mm
Temperature Operating Temperature 0 to +50 deg. C
Storage Temperature -20 to +80 degree C
IEC-60945 IEC-60945 Approved
DNV DNV Approved
EMI / EMC CE Approval
FCC Approval
RoHS Compliant
