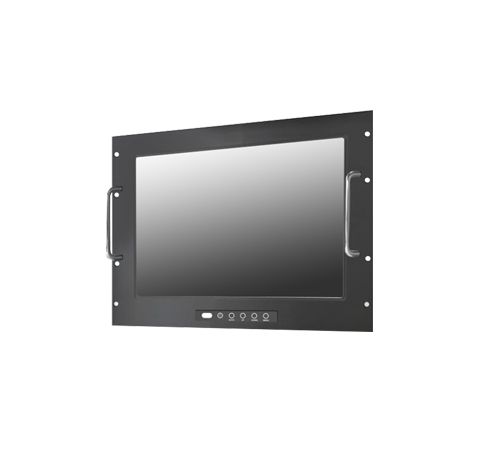

20.1" Military Grade Rack Mount LCD Monitor w/ VGA, DVI-D, AV(NTSC/PAL) Support NVG (Night/Day modes) (Model: EMR2010)

Military Grade, Rack Mount 20.1" LCD monitor, 1600x1200, LED-400nits, 28V DC w/Built-in PWR I/O: VGA, DVI-D, AV(NTSC/PAL) inputs Compliance: MIL-STD-461E, 901, 810, 167 Support NVG compatibility (Night/Day modes)

Military Grade, Rack Mount 20.1" LCD monitor, 1600x1200, LED-400nits, 28V DC w/Built-in PWR I/O: VGA, DVI-D, AV(NTSC/PAL) inputs Compliance: MIL-STD-461E, 901, 810, 167 Support NVG compatibility (Night/Day modes)

Inquiry/Quote Request
EMR2010
  • Overview
  • Specifications
  • Download
The EMR2010 is a 20-inch military-grade rack mount LCD monitor designed for mission-critical operations in rugged and harsh environments. Featuring a 1600 x 1200 resolution, 400-nit high brightness LED display, and support for NVG (Night Vision Goggle) compatibility, this unit ensures clear visibility in both day and night modes. It meets key military standards including MIL-STD-461E, MIL-STD-810, MIL-STD-901, and MIL-STD-167, making it ideal for use in defense, aerospace, and tactical command applications.


Features:
  • Military-grade rugged construction
  • 20.1-inch LCD display
  • 1600 x 1200 resolution (UXGA)
  • 400 nits LED backlight brightness
  • Rack mount design
  • 28V DC power input with built-in power supply
  • Input interfaces: VGA, DVI-D, AV (NTSC/PAL)
  • MIL-STD compliance: MIL-STD-461E / MIL-STD-901 / MIL-STD-810 / MIL-STD-167
  • Supports NVG compatibility (Night/Day modes)
Cell Type TFT LCD
Glass Surface Black Anti-Glare, low reflection coating
Aspect Ratio 4 : 3
Size 20.1" viewable diagonal area
Active Area 408(H) x 306(V) mm
Pixel Pitch 0.255(H) x 0.255(V) mm
Native Resolution 1600(H) x 1200(V)
Colors 16.7M
Brightness 400
Contrast 1000 : 1
Response Time ≤ 8 ms (G-to-G)
Viewing Angle (typical) H. 160°(- 80°~ + 80°) , V. 160°(- 80°~ + 80°)
Light Source LED backlight, Long life, 35,000 hrs (typ)

CERTIFICATION
FCC , CE
INPUT TERMINALS
VGA, DVI-D, AV(NTSC/PAL) inputs 1 x PC Audio (Stereo Headphone Jack) , 1 x DC Power Plug
CONVENIENT FEATURES
Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B) , OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
POWER
28V DC-IN
POWER CONSUMPTION
Operation / Power Saving ( Operation / Power Saving ) undefined
OPERATING CONDITION
Temperature / Humidity 0°C ~ 50°C (32°F ~ 122°F) , 10% ~ 90% (no condensation)
STORAGE CONDITION
Temperature / Humidity -20°C ~ 60°C (-4°F ~ 140°F) , 10% ~ 90% (no condensation)
DIMENSIONS
Physical Please refer to Drawing
Carton W x H x D = TBD
WEIGHT
N.W. / G.W. 2.0 Kgs/3.0 Kgs
CONTAINER LOADED
20ft / 40ft / 40ft HQ TBD (Sets , By pallet)

TOUCH VIDEO INPUT ENHANCED PANEL POWER OTHERS
Resistive Touch AV-IN High Brightness Panel 24V DC-IN Motion Sensor
Projected Capacitive Touch AV Looping Sunlight Readable 9~36V DC-IN Light Sensor
Infrared Touch HDMI / DP Wide Viewing Angle 48V 72V DC-IN VR-knob Dimming
Protected Glass HD-SDI Wide Temperature 90V 125V DC-IN RS232 Remote On/Off
Optical Bonding   UV Film 110V 220V DC-IN Military Connector: MIL 38999
    Anti-Vandal   Metal Connector: M12 / M16
        Stainless 316 Enclosure
