20.1" Military Grade IP65 Front Rack Mount LCD Monitor w/ VGA+HDMI, MIL-STD-810F, Compliance Do160E (Model: EMR2010-HDMI)

Military Grade, IP65 Front Rack Mount 20.1" LCD Monitor 1600x1200 LED-400nits, Power 9~36V DC w/ VGA+HDMI, Compliance Do160E Section: 4, 5, 6, 7, 8, 14, 17, 25, Compliance MIL-STD-810F

Military Grade, IP65 Front Rack Mount 20.1" LCD Monitor 1600x1200 LED-400nits, Power 9~36V DC w/ VGA+HDMI, Compliance Do160E Section: 4, 5, 6, 7, 8, 14, 17, 25, Compliance MIL-STD-810F

Inquiry/Quote Request
EMR2010-HDMI
  • Overview
  • Specifications
  • Download

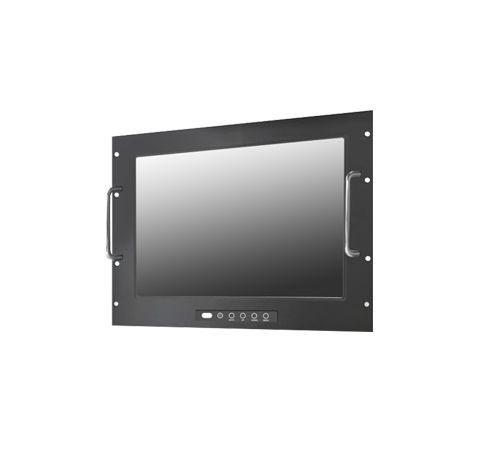

The 20-inch Military-Grade Rack Mount LCD Monitor (Model: EMR2010-HDMI) from iTech is engineered for demanding defense, marine, and industrial environments. Built with a rugged metal enclosure and advanced display technology, this monitor ensures durability, reliability, and superior visual performance in mission-critical operations. With its full rack-mount design, HDMI input, and high-resolution display, it delivers crystal-clear imagery while withstanding harsh conditions.


Features:
  • Military-grade rugged construction
  • 20.1-inch LCD display
  • 1600 x 1200 resolution (UXGA)
  • 400 nits LED backlight brightness
  • Rack mount design
  • Power 9~36V DC
  • Input interfaces: VGA, HDMI
  • Compliance Do160E Section: 4,5,6,7,8,14,17,25
  • Compliance MIL-STD-810F
Cell Type TFT LCD
Glass Surface Black Anti-Glare, low reflection coating
Aspect Ratio 4 : 3
Size 20.1" viewable diagonal area
Active Area 408(H) x 306(V) mm
Pixel Pitch 0.255(H) x 0.255(V) mm
Native Resolution 1600(H) x 1200(V)
Colors 16.7M
Brightness 400
Contrast 1000 : 1
Response Time ≤ 8 ms (G-to-G)
Viewing Angle (typical) H. 160°(- 80°~ + 80°) , V. 160°(- 80°~ + 80°)
Light Source LED backlight, Long life, 35,000 hrs (typ)

CERTIFICATION
FCC , CE
INPUT TERMINALS
VGA, HDMI inputs 1 x PC Audio (Stereo Headphone Jack)
CONVENIENT FEATURES
Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B) , OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
POWER
9V ~ 36V DC
POWER CONSUMPTION
Operation / Power Saving ( Operation / Power Saving ) undefined
OPERATING CONDITION
Temperature / Humidity 0°C ~ 50°C (32°F ~ 122°F) , 10% ~ 90% (no condensation)
STORAGE CONDITION
Temperature / Humidity -20°C ~ 60°C (-4°F ~ 140°F) , 10% ~ 90% (no condensation)
DIMENSIONS
Physical Please refer to Drawing
Carton W x H x D = TBD
WEIGHT
N.W. / G.W. 2.0 Kgs/3.0 Kgs
CONTAINER LOADED
20ft / 40ft / 40ft HQ TBD (Sets , By pallet)

TOUCH VIDEO INPUT ENHANCED PANEL POWER OTHERS
Resistive Touch AV-IN High Brightness Panel 24V DC-IN Motion Sensor
Projected Capacitive Touch AV Looping Sunlight Readable 9~36V DC-IN Light Sensor
Infrared Touch HDMI / DP Wide Viewing Angle 48V 72V DC-IN VR-knob Dimming
Protected Glass HD-SDI Wide Temperature 90V 125V DC-IN RS232 Remote On/Off
Optical Bonding   UV Film 110V 220V DC-IN Military Connector: MIL 38999
    Anti-Vandal   Metal Connector: M12 / M16
        Stainless 316 Enclosure
