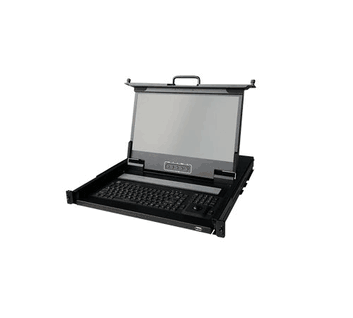

1U Wide 17.3" Rackmount LCD Keyboard Drawer 1000nits, Durable 104-Key KB, AC 110/220V Input, No Touch (Model: Amil-W1730bHB)
1U Wide 17.3" Rackmount Rugged LCD Keyboard drawer 1920x1080, High Brightness 1000 nits, Durable 104-key waterproof keyboard with trackball, AC 110/220V input, 408mm Deep /16" deep extend to 762mm 30", No Speaker
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
Features: |
|
Options: |
|
| Direct no. of Computers | 1 | ||
| LCD | Size | 17.3" | |
| Backlight | LED | ||
| Resolution | 1920*1080 Full HD ( support resolution up to 1920x1200 ) | ||
| Max.color | 16.7M | ||
| Luminance | 1000cd/m2 | ||
| View Angel (H/V) | 160 / 140 | ||
| Contrast Ratio | 600 : 1 | ||
| USB HUB | 1x Front USB 2.0 Type A for Peripheral USB Device | ||
| KB/Mouse Emulation | USB | ||
| Rack Depth | 408mm to 762mm ( rack cabinet front rails to rear rails ) | ||
| Power | 100-240V AC 50/60Hz via 4 pins lock connector | ||
| Environment (MIL-STD-810G) | Operation temp: 0 to 50°C | (MIL-STD-810, Method 501.5 & 502.5) | |
| Storage temp: -20 to 60°C | (MIL-STD-810, Method 501.5 & 502.5) | ||
| Humidity: 5% - 95%, non-condensing | (MIL-STD-810, Method 507.5) | ||
| Shock/Vibration: Procedure VI, 50G @ 11ms | (MIL-STD-810, Method 516.6) | ||
| Altitude: 10,000 ft Operational, 30,000 ft Storage | (MIL-STD-810, Method 500.5) | ||
| Physical Dimensions / Net Weights | 482x44x408mm (WxHxD) /13KG | ||
| Packing Dimensions / Gross weights | 740x160x620mm(WxHxD) /16KG | ||
| Accessories | |||
| 1 x 1.8 Power Cord with lock connector, 1.8 meter DVI-D Cable, 1.8 meter VGA Cable , 1.8 meter USB Cable (each one) | |||
