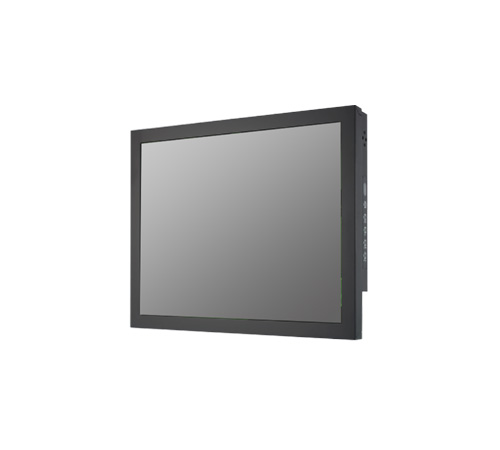

19" Military Chassis LCD Monitor LED-1000nits w/ Build-In PCAP *Touch USB Controller* (Model: EMCM1900HB-V2)

Military Application, 19"-1280x1024, LED-1000nits, WT(-30~80°), WV(178°/178° MWA), AC-IN w/ Built-in PWR, Build-In PCAP

Military Application, 19"-1280x1024, LED-1000nits, WT(-30~80°), WV(178°/178° MWA), AC-IN w/ Built-in PWR, Build-In PCAP

Inquiry/Quote Request
EMCM1900HB-V2
  • Overview
  • Specifications
  • Download

Features:
  • Modularize mechanical design provides flexible product configuration and easy maintenance
  • Build-in PCAP touch
  • Available with auto-brightness sensor offers application in day and night
  • I/O connector (Regular): 1 x VGA, 1 x DVI, 1xRS232 remote control
  • Environmental: MIL-STD-810 MIL-STD-810F  Category 516.5-10 level; MIL-STD-810F  Category 514.5-C8 level); Vibration - MIL STD 167
  • EMI/EMC: MIL-STD-461/462
  • Shock - MIL S 901D (Optical Bonding)
  • 9~36VDC Power: MIL-STD-704, MIL-STD-1275


Option MIL
  • Environmental: MIL-STD-810 MIL-STD-810F Category 516.5-10 level; MIL-STD-810F Category 514.5-C8 level)
  • EMI/EMC: MIL-STD-461/462
  • Panel construction & lighting: MIL-P-7788
  • Power: MIL-STD-704, MIL-STD-1275
  • Shock - MIL S 901D (Optical Bonding)
  • Vibration - MIL STD 167

Panel Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low re lection coating
Aspect Ratio / Size 4 : 3/19" viewable diagonal area
Active Area / Pixel Pitch 376.3(H) x 301.1(V) mm / 0.294(H) x 0.294(V) mm
Native Resolution / Colors 1280(H) x1024(V)/16.7 M
Brightness / Contrast 1000cd/m2(typ) / 1000 : 1
Response Time < 5 ms
Viewing Angle (typical) H. 178° (- 89° ~ + 89°) , V 178°(- 89° ~ + 89°)
Light Source LED backlight, Long life, 35,000 hrs (typ)
Input Sources PC System Signal Analog RGB (0.7/1.0 Vp.p, 75 ohms)
Sync Separate Sync, Composite Sync, Sync On Green
Frequency Fh : 30 - 82Khz , Fv: 50 -75Hz
Audio System Optional
Input Terminals 1 x VGA (15 Pin Female D-Sub), 1 x DVI, 1 x RS232 (Remote Control), 1 x DC Power Plug
Convenient Features Auto Calibration , Back Light Adjustment, Plug&Play (VESADDC/CI, DDC 2B)
OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
Power 9-36V DC Power MIL-STD-704, MIL-STD-1275
Power Consumption Operation / Power Saving 32.5 watt, < 2 watt (Support DPMS)
Operating Condition Temperature / Humidity - 30°C ~ 80°C (- 22°F ~ 176°F), 10% ~ 90% (no condensation)
Storage Condition Temperature / Humidity - 20°C ~ 70°C (- 4°F ~ 158°F), 10% ~ 90% (no condensation)
Certification   FCC,CE
Dimensions Physical Please refer to Drawing
Carton WxHxD=TBD
Weight N.W./G.W. 6 Kgs/7 Kgs
Container Loaded 20ft / 40ft / 40ft HQ TBD (Sets , By pallet)
