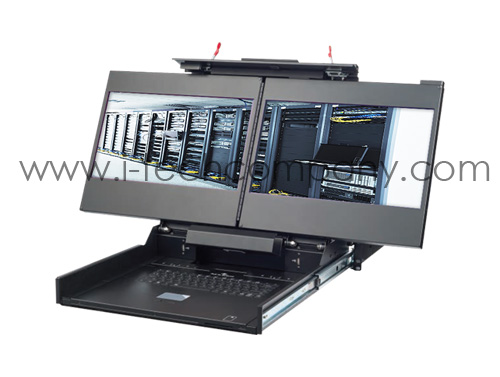

19" Rugged 2U Rackmount Drawer with Dual-screen LCD Monitor (Model: BHK2D119e)

19" Rugged 2U Rackmount Drawer with Dual-screen LCD Monitor (Model: BHK2D119e)

19" Rugged 2U Rackmount Drawer with Dual-screen LCD Monitor (Model: BHK2D119e)

BHK2D119e
  • Overview
  • Specifications
  • Download

Features:

  • Two 17.3", 19", or 23" Screens for a combined 3840x1080 or 2560x1024 resolution
  • 2U Rack Mount, 30” Deep
  • Independent Display Controllers
  • Auxiliary Pass Through USB

Specifications:

Display Option 1: 2x 17.3", 16:9 Display 1920x1080
Option 2: 19", 5:4 Display 1280x1024
Display Deployment Displays rotate up from stowed position, rotate & open via butterfly action and slide to center the two displays on the operator
Display Tilt Displays tilt ~10° from vertical for optimal operator positioning
Signal Inputs Analog VGA, DVI-D, Display port for each display
Display Adjustments Individual brightness, contrast, color temperature adjustments
USB Pass Through Internal USB 2.0 hub with 2x inputs on the front panel and a single USB 2.0 on the rear
Keyboard 101-key pull out backlit keyboard
Pointing Device Resistive touchpad
Input Power 115/230 VAC, 50/60Hz, 100W Max
Internal UPS 5-minute backup, internal battery, switch over indicator
Dimensions/Weight 3.5" (2U rack height) x 17.5" W x 26" D / 38 lbs


Environment and Specifications:

 Temperature: MIL-STD-810E (501.4, 502.4) Operating: 0 ~ 50°C Non-Operating: -40 ~ 70°C
 Humidity: MIL-STD-810E (507.2) Relative Humidity: 5% to 95% operating, non-condensing
 Altitude: MIL-STD-810E (500.3)  Operating: 15,000 ft (4571.8 m) Non-Operating: 40,000 ft (12,192 m)
 Vibration: MIL-STD-810E (514.4) Operating: 10 to 500 Hz 1.04 g (RMS)
 Shock: MIL-STD-810E (516.4) Operating: 15 G, 8 ms 1/2 sine
Non-Operating: 40 G, 8 ms 1/2 sine
Drop: 4" stand alone, 39" transit drop in transit case

For the Mil Spec the unit is designed to meet, but has not been tested.
