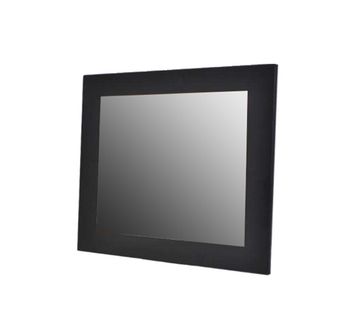

19" IP65 FRONT Panel PC w/ PCAP Touch, LI22-Q470E/i7-11700, RAM 16GB, SSD 512GB, Win 11 Pro (Model: CPM1900-i7-PCAPV2)

19" Industrial Panel (250nits, 1280x1024) with ( with 3mm front bezel ) / VESA Mount, PCAP Touch, Fanless Design, LI22-Q470E / i7-11700 (16M Cache, up to 4.9GHz, 11th Generation Intel® Core™ i7 Processor) / RAM 16GB / SSD 512GB 100-240VAC Input / Win 11 Pro 64bit

19" Industrial Panel (250nits, 1280x1024) with ( with 3mm front bezel ) / VESA Mount, PCAP Touch, Fanless Design, LI22-Q470E / i7-11700 (16M Cache, up to 4.9GHz, 11th Generation Intel® Core™ i7 Processor) / RAM 16GB / SSD 512GB 100-240VAC Input / Win 11 Pro 64bit

Inquiry/Quote Request
CPM1900-i7-PCAPV2
  • Overview
  • Specifications
  • Download
The 19-Inch IP65 Front Panel PC with PCAP Touch (CPM1900-I7-PCAPV2) is a high-performance industrial-grade computing solution designed for demanding environments. Featuring an Intel Core i7 processor, a rugged IP65-rated front panel, and projected capacitive (PCAP) touchscreen technology, this panel PC is ideal for applications in manufacturing, automation, healthcare, and marine industries. Its durable aluminum construction, fanless design, and wide operating temperature range ensure reliability in harsh conditions.


Features:
  • 19" Industrial Panel / 1280x1024 / 250nits
  • Panel Mount ( with 3mm front bezel ) / VESA Mount
  • PCAP Touch / Front IP65
  • Fanless Design
  • All Black Powder Coating
  • LI22-Q470E / i7-11700 (16M Cache, up to 4.9GHz, 11th Generation Intel Core i7 Processor) / RAM 16GB / SSD 512GB
  • 100-240VAC Input
  • Win 11 Pro 64bit
Display Viewing Size Image 19"
Active Display Area (mm) 376.32(H) x 301.06 (V)
Pixel Pitch (mm) 0.294 (H) x 0.294(V)
Resolution 1280 x 1024
Contrast Ratio 1000 : 1 (typ.)
Color 16.7M
Brightness 250 nits
Viewing Angle -85~88(H) ; -80~80 (V)
Recommended Resolution 1280 x 1024 @ 60Hz, 75 Hz
Power Source 12VDC with external 100-240VAC Power Adapter
Consumption 11.15W typical, normal operation
Management VESA DPMS Compliant
Options Touch Resistive, PCAP
High Brightness 1000,1500
Auto Dimming Yes
POWER in DC24V,DC 9V~36V
Remote Control Yes


Motherboard SPECS
  • Intel® LGA1200 Socket supports 10/llth Gen Core Processor (Max 65W)
  • Intel® Comet Lake-S Q470E
  • 2* DDR4 3200/2933MHz up to 64GB
  • 1* Intel® 1225-V 2.5GbE, 1* Intel® 1219-LM GbE
  • 1* M.2 M-Key (PCI-Ex4), 1* M.2 E-Key (CNVi/PCI-Exl)
  • 4* SATA III (6Gb/s, support RAID 0/1/5/10), l* PCI-E xl6 slot
  • 1* VGA, 1* HDMI, 1* DP, 1* LVDS/eDP Output
  • 2* RS232/422/485, 4* RS232, 4* USB3.2 (Genl), 6* USB3.0, 3* USB2.0
  • Support Onboard TPM2.0 (U22-Q470E2, option)
  • 24 + 8 Pin ATX Power Input
  • Mini-ITX Form Factor (170x170mm)

Model LI22-Q470E
Form Factor Mini-ITX (170 * 170mm)
Processor System Intel® LGA1200 Socket supports 10/11th Gen Core Processor, Max. 65W
Intel® Comet Lake-S Q470E Chipset
AMI 256M Flash ROM
Memory 2* DDR4 3200/2933MHz SO-DIMM up to 64GB
Storage 1* M.2 M-key (2242/2280, PCI-Ex4 interface, support NVMe SSD)
4* SATAII I (6.0Gb/s, Support RAID 0/1/5/10)
Expansion 1* M.2 E-key (2230, CNVi/PCI-Ex1/USB2.0, support WIFI/BT)
1* PCI-E x16 slot
Ethernet 1* Intel® i225-V 2.5GbE
1* Intel® i219-LM GbE
Graphics Intel® HD Graphics, shared Memory
1* VGA (Max Resolution : 1920x1080@60Hz)
1* HDMI 1.4 (Max Resolution : 4096x2160@30Hz)
1* DP1.4 (Max Resolution : 5120x3200@60Hz)
1* LVDS/eDP (Max Resolution : LVDS: 2560x1600@60Hz, eDP: 3840x2160@30Hz)
Support Triple Displays
Audio HD audio: Realtek ALC888S
Watchdog Timer From Super I/O to drag RESETCON#
256 segments (10sec ~ 255min)
Internal I/O 4* USB3.0
3* USB2.0
4* RS232 (COM3/4 Support 5/12V TTL)
4* SATAIII (6.0Gb/s)
1* LVDS/eDP (Choose one from two)
1* Inverter (PH2.0)
1* Light Up/Down (PH2.0)
1* M.2 M-key (2242/2280, PCI-Ex4 interface)
1* M.2 E-key (2230, CNVi/PCI-Ex1/USB2.0 interface)
1* PCI-Ex16 slot (by CPU)
1* GPIO (8 bit,5V)
1* CPU FAN (W/ Smart FAN)
1* PS/2 (PH2.54)
1* System FAN (W/O Smart FAN)
1* Chassis intrusion
1* SMBUS/ I2C
1* AT mode
External I/O 2* RS232/422/485 (Support 5V/12V TTL)
4* USB3.2 (Gen1)
2* USB3.0
1* VGA
1* HDMI1.4
1* DP1.2
2* RJ45
Line-in, Line-out, MIC
Power 24 + 8 Pin ATX Power, AT/ATX Supported
- AT: Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready
Compliance CE, FCC, RoHS, REACH compatible
Temperature Operating Temperature: 0 ~ 60° C
Storage Temperature: -20 ~ 70° C
Humidity: 10% ~ 90% RH @40°C (non-condensing)
OS Support Windows 10, Windows 11, Linux
Warranty 2 Years limited warranty
