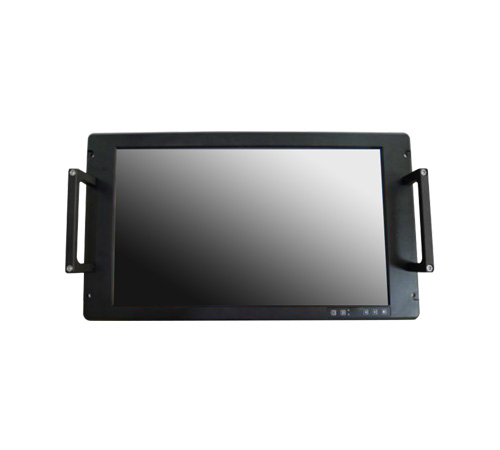

17.3" 1000nits Military Rugged 6U Rackmount Monitor w/ VGA, DVI-D and 100~240V AC Power Input (Model: EMRM1700HDL)
17.3" Rugged 6U Rackmount Monitor, 1920x1080 @60Hz, 1,000 nits sunlight readable, 1 x VGA, 1 x HDMI 480x264.40x120 mm, 100~240V AC, -20~60C
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
| The 17.3" Military Grade 6U Rackmount Monitor is engineered for mission-critical military, defense, aerospace, and industrial applications where durability and reliable performance are essential. Featuring a Full HD 1920 x 1080 LCD with 1,000-nit sunlight readability, this rugged display delivers exceptional image clarity in both indoor and outdoor environments. Its robust 6U rackmount chassis is designed for seamless integration into command centers, mobile shelters, tactical vehicles, communication systems, and control rooms. |
| Supporting VGA and DVI-D inputs, with optional BNC video and USB touch interface, the monitor provides flexible connectivity for a wide range of legacy and modern systems. With an operating temperature range of -20°C to 60°C and universal 100-~240V AC power input, it is built to perform reliably in harsh operating conditions while meeting the demands of military and industrial environments. |
Features: |
|
| INPUT | |
| VGA Input | 1 x VGA D-Sub 15-pin (D38999 connector) |
| DVI | 1 x DVI-D Input (D38999 connector) |
| Audio In | N/A |
| Power In | 1 x AC Power Input (D38999 connector) |
| Switch | 1 x Power On/Off, up/down, Reset, Esc |
| PANEL SPECIFICATIONS | |
| Size/ Type | 17.3" LED Backlight |
| Resolution | 1920 x 1080 @60Hz |
| Brightness | 1,000 nits sunlight readable |
| Contract Ratio | 600 : 1 (typ.) |
| Viewing Angle | -85~85 (H) ; -80~ 80 (V) |
| Max. Colors | 16.7M (Colors) |
| Active Area | 381.888 (H) x 214.812 (V) |
| Pixel Pitch | 0.1989 (H) x 0.1989 mm (V) |
| SYSTEM SPECIFICATIONS | |
| Rackmount | 6U height for 19" Rack |
| Backlight MTBF | 50,000 hours |
| Plug & Play | VESA DDC 1/2B |
| Handles | Left / Right handles (could be without) |
| OSD | Slim OSD control buttons in front |
| Power Input | 100~240V AC Power Input |
| ENVIRONTMENT TOLERANCE | |
| Operating Temp. | -20~60C operating temperature |
| Storage Temp. | -30~80C storage temperature |
| Operating Humidity | 5~95% Non-Condensing |
| Vibration | MIL-STD-810G Method 514.5 / Procedure I |
| Shock | MIL-STD-810G Method 516.6 Procedure I |
| EMC | Compliance to CE102, RE102 in MIL-STD-461F |
| IP grade | Front IP66, rear IP54 |
| POWER | |
| Power Input | AC Input |
| Power Consumption | 32 watts (typical) |
| Power Management | VEDA DPMS Compliant |
