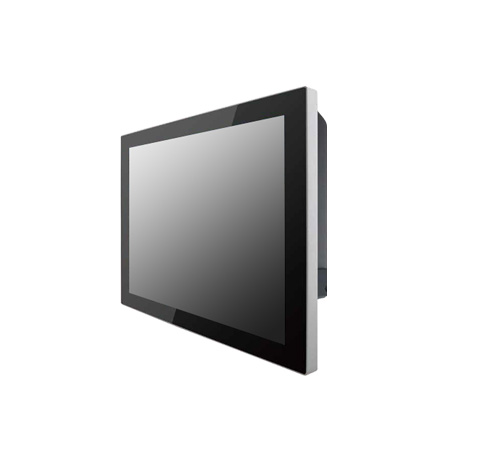

15" TFT Wide Rugged LCD Panel PC 1024x768 w/ Intel Celeron Bay Trail-M N2930 1.83 GHz and Projected Capacitive Multi-Touch (P-CAP) (Model: WRD1500-J-PCAP)

SYSTEM
Processor	Intel Celeron Bay Trail-M N2930 1.83GHz
System Chipset	Intel ATOM SoC Integrated
Memory	2GB DDR3L 1600 SODIMM (max. 8GB)
Storage	64GB mSATA SSD
INPUT/OUTPUT
COM port	1x RS232 (M12 type)(Optional 422/485)
USB Ports	1 x USB 2.0 (M12 type)
Ethernet	1x 10/100/1000 LAN (M12 type)
Speaker	1 x 1 watt Speaker
OPERATING SYSTEM
Operating System	Windows 10 IoT Enterprise Windows Embedded 8.1 Industry Pro Windows Embedded Standard 7
SOFTWARE SUPPORT
Watchdog SDK
MECHANICAL SPECIFICATION
Cooling System	Fanless design
Mounting	VESA Mount (75x75mm), Panel Mount
Dimensions (W x H xD)	363.40 x 277.86 x 44.50 mm

DISPLAY
Size/Type	15" TFT
Resolution	1024x 768
Brightness	250nits Optional for High Brightness 1000nits
Contrast Ratio	700:1 (typ.)
Viewing Angle	-80~80(H) ; -70~70(V)
Max Colors	16.2M
Touch	Projected-Capacitive Touch with optional protection glass
POWER CONSIDERATION
Power Input	9-36V DC (M12 type)
Power Consumption	25W

ENVIRONMENT CONSIDERATIONS
Operating Temperature		-15 deg. C to 55 deg. C
Operating Humidity		10% to 95% (non-condensing)
IP Rating		Full IP65
Shock Operating		40g for 11ms
Vibration Operating		1.48/1.98/2.24 g rms for XYZ/ 5-500Hz
SECURITY SUPPORT
Trusted Platform Module (TPM 1.2)
CERTIFICATIONS & STANDARDS
Compliant with MIL-STD-810F/G for vibration / shock, CE, FCC
