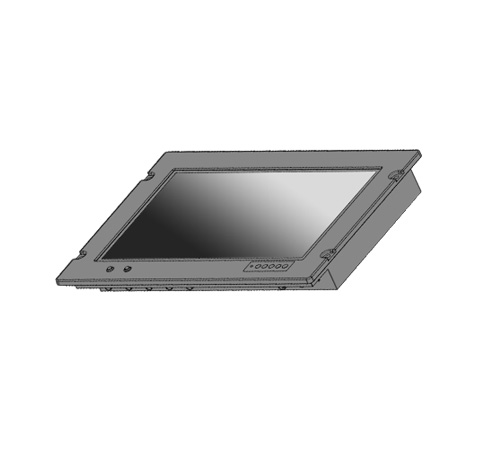

15.6" 1920x1080, 800~1000nits Rugged Military Grade 64430 Aluminum Alloy with PCAP Touch (Model: Nmil-W1560SDI)

15.6" 1920x1080, 800~1000nits Rugged Military Grade 64430 Aluminum Alloy with PCAP Touch

15.6" 1920x1080, 800~1000nits Rugged Military Grade 64430 Aluminum Alloy with PCAP Touch

Inquiry/Quote Request
Nmil-W1560SDI
  • Overview
  • Specifications
  • Download


Features
  • 15.6" Rugged Military-Grade LCD Monitor
  • 64430 Aluminum Alloy Bezel & Galvanized Steel Chassis
  • Full HD 1920 x 1080 Resolution
  • 800-1000 nits High Brightness
  • Projected Capacitive (PCAP) Touch
  • 2 x HD-SDI In / 2 x HD-SDI Loop-Out
  • NTSC/PAL, VGA & DVI Inputs
  • USB Touch Interface
  • DC 9-36V Power Input
  • Operating Temperature: 0°C to +50°C
Mechanical Bezel Rugged Military Grade 64430 aluminum alloy with anti-corrosion treatment
Chassis Rugged galvanized steel with anti-corrosion treatment
Color Semi-gloss black, RAL-9005
Mount Front Mount Yes
Panel Mount Yes
VESA Mount Optional
LCD LCD Size 15.6"
Resolution 1920 x 1080
Aspect Ratio 16 : 9
Brightness 800~1000 cd/m2
Contrast Ratio 1000 : 1
View Angle 85 / 85 / 85 / 85 wide viewing angles
Backlight Unit LED backlight
Display Color 16.7 M
Touch Touch Type Projected Capacitive Touch
Touch Point Multi-Point
Day/Night Mode Day Vision 800 ~1000 cd/m2
Night Vision 200 cd/m2
Video Signal HD-SDI Input 2 x HD-SDI video input (2 x BNC in)
HD-SDI Out 2 x HD-SDI video loop-out (2 x BNC out)
NTSC/PAL 1 x NTSC/PAL (1 x BNC in)
VGA 1 x VGA in
DVI 1 x DVI or optional HDMI
USB 1 x USB for PCAP touch
Power Input DC Input DC9~36V wide range input with military circular connector
Power Consumption 15 ~ 20 watts in total
Dimensions Exclude front bezel 441 (W) x 295 (H) x 69 (D) mm
Include front bezel 441 (W) x 295 (H) x 81 (D) mm
Environmental Vibration MIL-STD-810 Optional
Shock MIL-STD-810 Optional
Operating Temperature 0 to +50°C (Optional -30 ~ 50°C)
Storage Temperature -30 to +85°C
Humidity 5%~95% Relative Humidity at 35°C non-condensing
EMI/EMC CE CE compliant
FCC FCC compliant
MIL-STD-461 MIL-STD-461 Optional
Note : All MIL-STD test fee is required if you need test reports
