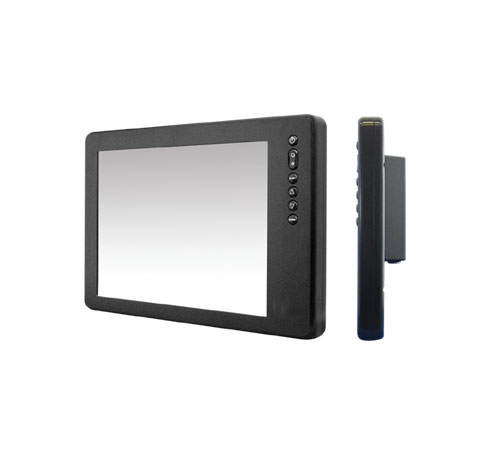

10.4" XGA 1024x768, Rugged Display, RGB Input, LED 1000nits BIP67 Sealed, 12-36Vdc (Model: DOD1000R-AV-P-H)

10.4" Rugged Display, RGB Input, LED 1000nits Backlight, 10ft Cable Set, RAM Mount, IP67 Sealed, 12-36Vdc, HDRM RS-232 Touch Screen Option for (10.4" models), XGA (1024 x 768) LCD Upgrade, Internal Heaters for Low Temperature Operation, USB Pass Through Option.

10.4" Rugged Display, RGB Input, LED 1000nits Backlight, 10ft Cable Set, RAM Mount, IP67 Sealed, 12-36Vdc, HDRM RS-232 Touch Screen Option for (10.4" models), XGA (1024 x 768) LCD Upgrade, Internal Heaters for Low Temperature Operation, USB Pass Through Option.

DOD1000R-AV-P-H
  • Overview
  • Specifications
  • Download

Standard Features:

  • VGA Input (1)
  • XGA Resolution (1024x768)
  • Auto Scaling VGA to UXGA
  • Sealed Connectors*
  • LED Backlight (3000:1 Dimming Ratio)
  • Anti-Reflective and Anti-Glare Treatments
  • Enhanced Sunlight Readability
  • IP67/NEMA 6 Enclosure
  • 10.4" TFT AMLCD
  • 10 ft. RGB, Touch and Power Cable Included


Optional Features:

  • Resistive Touch Screen (USB or RS232 Interface)
  • USB Pass-through with Sealed Connector
  • External VAC 120/240 Power Supply
LCD SIZE Resolution Nits Viewing Angle Contrast Ratio Maximum Power Consumption
10.4" TFT AM LCD XGA (1024x768) 1000 nits 160° (H) x 160° (V) 900:1 20 Watts
TECHNICAL SPECIFICATIONS
Display 8-bit color, 16,777,216 colors, TFT AMLCD (Thin-Film Transistor Active-Matrix Liquid-Crystal Display)
Dimming Ratio 3000:1
Video Inputs VGA (1)
Connectors/Cable* Sealed Fischer to High Density DB-15
JAE to Flying Leads DC Input
JAE to DB-9 Touch (Optional)
JAE to Type-A USB Touch (Optional)
JAE to Type-A USB Pass-through (Optional)
Housing Milled AL, Black Anodized, UV Clear Coat
Mount Options Standard: Panel or RAM; Optional Flush or 19” Rack, quoted individually.
Wide Range DC Power Input 12-36 VDC (12,24,28 VDC nominal)
Power Conditioning Protected against Internal Short Circuit, Load Dump, Over Voltage and Reverse Polarity
ENVIRONMENTAL SPECIFCATIONS
IP Rating IP67 (NEMA 6 Submersible)
Operating Temperature -20°C to 71°C (-4°F to 160°F); (-40°C (-40°F) with heater option)
Storage Temperature -51°C to 71°C (-60°F to 160°F)
Humidity 0-100%
Shock 50 G
Vibration 5.8 G (5-500 Hz)
Altitude 45,000 ft.
EMI Designed to meet FCC B, CE
