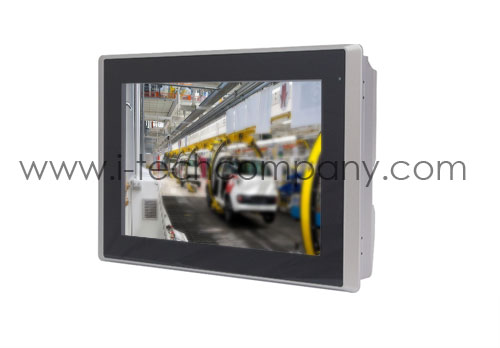

10.1" WXGA fanless HMI with Atom N2600 1.6G CPU, 2GB DDR3 RAM, 32G SSD, Projected Capacitive touch,, 9~36VDC input with adapter, Aluminum chassis. (Model: APCW1010P-AT)

10.1" WXGA fanless HMI with Atom N2600 1.6G CPU, 2GB DDR3 RAM, 32G SSD, Projected Capacitive touch,, 9~36VDC input with adapter, Aluminum chassis. (Model: APCW1010P-AT)

10.1" WXGA fanless HMI with Atom N2600 1.6G CPU, 2GB DDR3 RAM, 32G SSD, Projected Capacitive touch,, 9~36VDC input with adapter, Aluminum chassis. (Model: APCW1010P-AT)

APCW1010P-AT
  • Overview
  • Download
Untitled Document

Features:

  • Variety of LCD Panel Size Selections
  • Flat Front Panel with IP65 Design
  • Solid Aluminum Die-casting Chassis
  • Intel Atom N2600 processor, Dual Core Low Power Fanless System


Specifications:


SYSTEM
Processor Intel Atom Cedar View N2600 1.6GHz Dual Core Processors / Intel Atom D2550 1.8GHz (Optional)
System Memory Onboard DDR3 2GB 800 MHz
System Chipset Intel NM10
Power Consumption 11.04W
IO Port
USB 2 x USB 2.0 type A, USB4/5
Serial/Parallel x RS-232/422/485 DB-9, COM1, Default RS-232 1 x RS-232 DB-9, COM2
Audio 1 x Line out phone jack
LAN 2 x GbE RJ-45
Power 3 pins terminal block connector, DC Power input
Storage Space
HDD 1 x 2.5” SATA 2
Movable device x Internal SD slot
Expansion
On board expansion bus 1 x Mini-PCIe half size
Display
Display Type 10.1”TFT-LCD
Max. Resolution 1280x800
Max. Color 262k
Brightness 350
View Angle H:160° / V:160°

TOUCHSCREEN (option)
Type Resistive Touch / Projected Capacitive Touch (for P model)
Light Transmission 80% / 90% (for P model)
Interface RS-232 / USB (for P model)
POWER SUPPLY
Power Input 9~36V DC
MECHANICAL
Construction Sliver aluminum front bezel and chassis
IP Rating IP65 front panel
Mounting Panel mounting, VESA 100 x 100
Dimension 285mm x 189mm x 48.9mm
Net Weight 2
ENVIRONMENTAL
Operating Temperature 0~50 OC
Storage Temperature -20~60 OC
Storage Humidity 10 to 90%@ 40˚C, non-condensing
Certificate CE / FCC Class A
Operating System Support
Windows XP pro
Windows XP Embedded
Windows Embedded CE6.0
Windows 7 pro for Embedded
Windows Embedded standard 7
(Win 7 support 3D Graphic function)
