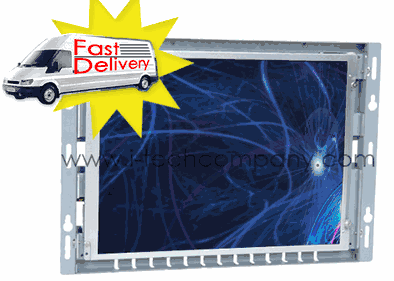

10.4" Open Frame LED LCD Monitor (Model: FOP1040)

10.4" Open Frame LED LCD Monitor (Model: FOP1040)

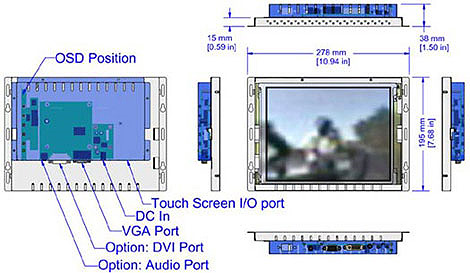

  • Front View
  • Back View
  • Side View

10.4" Open Frame LED LCD Monitor (Model: FOP1040)

FOP1040
  • Overview
  • Download

A highly popular size amongst medical and industrial applications is theFOP1040, 10.4” LED Open Frame Monitor from iTechLCD. This monitor is designed with a steel housed chassis and is pressed with an industrial CNC machine to ensure quality from beginning to end.

Is this unit industrial grade? All components, including the steel milled chassis is comprised of industrial grade materials ensuring that the unit overall will be durable enough to withstand the harsh surroundings, as well as being able to be used 24/7 with the internal components being tested for prolonged periods of use.

Will I have to change my enclosure design if there is an LCD panel revision? iTechLCD’s engineers designed each monitor chassis to accommodate and changes that might take place during a panel revision. This helps to ensure that the active area and chassis of the monitor will remain consistent throughout the lifetime of the specific model.

With no design changes to the monitor or chassis, designers have one less worry when designing this 10” monitor into their project application or enclosure. A few types of applications that this rugged industrial 10 inch open frame monitor can be used in would be Kiosks, control panels, instrumentation devices and digital signage applications.



FOP1040 Open Frame Monitor Quick Facts

  • 4:3 Aspect, 800 x 600 resolution
  • 211.2 x 158.4 [mm] x [mm], 8.31 x 6.24 (inch) x (inch) active area
  • High grade TFT, 400 nit LCD Panel
  • Standard 15-pin VGA input connector
  • DVI, Composite and BNC video input options


Standard Features

  • Compatible with iTechLCD's standard definition signage players
  • Robust CNC milled open frame enclosure
  • Compliant with RoHS, UL, CSA, TUV, FCC B, VCCI B, CE TCO 99, TUV Ergo, EPA Energy Star
  • Perfect for kiosk, equipment and instrument drop-in designs
  • Superior viewing angles, contrast ratio and brightness
  • Unique design accounts for heat ventilation


Included in the package

  • FOP1040, 8.4" Open Frame LCD Monitor
  • +12V power adapter and cord
  • VGA cable


Specifications


LCD Panel
Display Panel 10.4 inch TFT LED
Dot Pitch 0.264(H) x 0.264(V) mm
Max Resolution 800 x 600 SVGA
Contrast Ratio 700:1 (typical)
Brightness 400 cd/m2 (typical)
Uniformity 80% (minimum)
Backlight MTBF 50,000 hours (minimum at 25C)
Response Time 30 ms (typical)
Display Colors 16 million
Viewing Angle 80L/R, 60U, 80D (typical at CR=10)
Video and Power
OSD Controls Brightness, Contrast, Phase, Clock, Color, H&V position, Auto-tune, Recall
Input Signal RGB analog 0.7V peak to peak
Video Input Connector D-sub 15 pin analog VGA
Power Supply AC/DC 12V power adapter, universal 100-240 Volts
Mechanical and Environment
Operating Temperature -30~85C [-20~185F]
Storage Temperature -30~85C [-20~185F]
Humidity 0-80% relative humidity, non-condensing
Dimensions (WxHxD) 278 x 195 x 42 mm [10.94 x 7.68 x 1.65 inch]
Net Weight 1.1 Kg [2.5 lbs]
